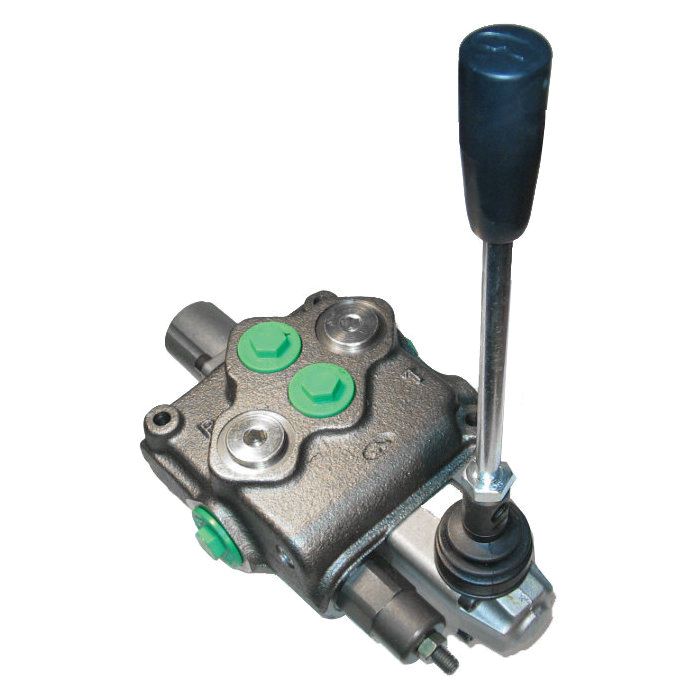

SD11 Series Walvoil Spool (TYPE 2). Steel. Motor SPO

The SD11 Series Walvoil Spool (TYPE 2) is engineered for robust performance in open and closed center hydraulic systems. With its compact and heavy-duty monoblock design, it accommodates 1 to 6 spools and features a main pressure relief valve and load check valve. This spool is versatile, offering parallel or series circuit options and an optional power beyond port for parallel circuits. Constructed from durable steel, it ensures reliable operation within a temperature range of -40°F to 140°F and can handle a maximum operating pressure of 4600 PSI for parallel circuits.

Ideal for demanding environments, the spool supports a flow rating of up to 18 GPM and maintains internal leakage at 0.18 in³/min at a differential pressure of 1450 PSI. Its wide array of service ports and circuit valves, along with interchangeable spools, enhances adaptability in various applications. The spool is compatible with manual, pneumatic, hydraulic, electro-hydraulic, and remote control kits, providing flexibility in control methods. Recommended filtration adheres to ISO 4406 19/16 standards, ensuring optimal performance.

SKU: 3CU1425130

Supplier Part Number (MPN): 3CU1425130

Alternate Part Numbers: C1HZ84
