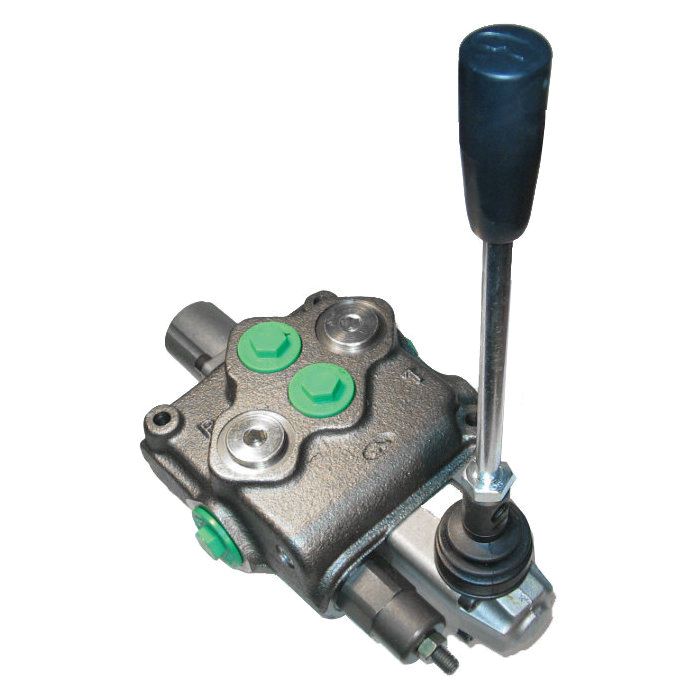

SD11 Series Walvoil 3XGIU532660 SD11 POWER BEYOND PL

The SD11 Series Walvoil 3XGIU532660 SD11 Power Beyond PL offers durable heavy-duty design suitable for a range of hydraulic systems. Available in configurations for both open and closed center applications this monoblock valve is built for optimal performance in demanding conditions.

The valve features a main pressure relief valve and a load check valve ensuring reliable and safe functionality. Designed with interchangeable spools it provides versatility to meet various operational needs. The flow rating is 18 GPM catering to robust hydraulic system requirements.

The wide variety of service ports and circuit valves combined with spool control kits for manual pneumatic hydraulic electro-hydraulic and remote with flexible cable controls makes this product highly adaptable. The optional power beyond port for parallel circuits further enhances its utility.

With an internal leakage rate of 0.18 in/min at 1450 PSI differential pressure and a maximum operating pressure of 4600 PSI for parallel circuits and 3600 PSI for series circuits this valve ensures efficiency and reliability. It operates effectively within a fluid viscosity range of 80 to 400 SSU at ambient temperatures from -40F to 140F and with a maximum back pressure of 360 PSI on the outlet port T.

Recommended filtration adheres to ISO 4406 19/16 standards and temperature tolerance extends from -4F to 176F with standard Buna-N seals ensuring longevity and consistent performance.

Supplier Part Number: 3XGIU532660

MPN: C1HV49
