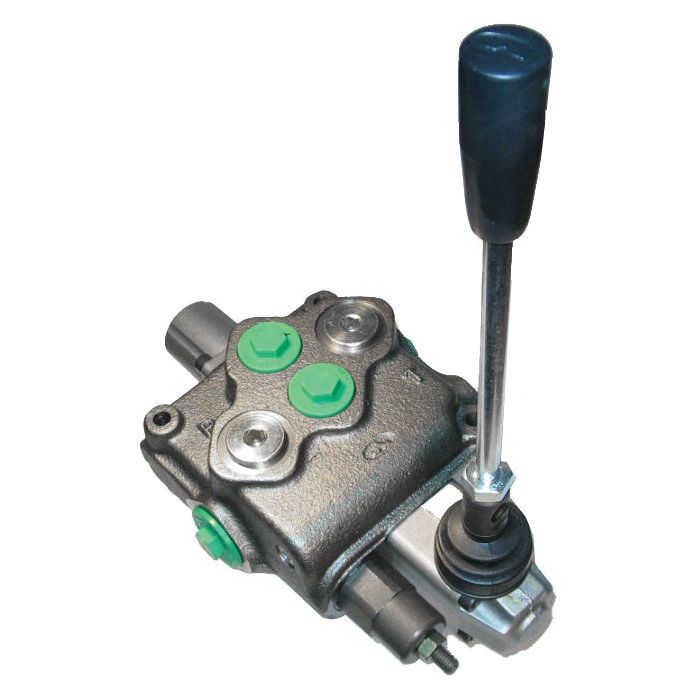

SD11 Series Walvoil 5V11110000 SD11 SD16 DETENT KI

Description & Features

Walvoil Fluid Power Corp. offers the SD11 Series Walvoil 5V11110000 SD11 SD16 Detent Kit designed for heavy-duty applications. These durable monoblock valves are suitable for open and closed center hydraulic systems. Engineered with interchangeable spools they cater to a wide range of service ports and circuit valves.

The main pressure relief valve and load check valve provide added reliability. Optional power beyond port is available for parallel circuits enhancing system flexibility. Capable of withstanding a maximum operating pressure of 4600 PSI for parallel circuits and 3600 PSI for series circuits these valves ensure robust performance.

With a flow rating of 18 GPM and an ambient temperature range from -40F to 140F this product is optimized for diverse environments. It supports fluid viscosities ranging from 80 to 400 SSU with minimal internal leakage of 0.18 in/min at 1450 PSI differential pressure. The product also can handle a maximum back pressure of 360 PSI on outlet port T.

Compatible with manual pneumatic hydraulic electro-hydraulic and remote spool control kits with flexible cable controls it provides versatile control options. The recommended filtration complies with ISO 4406 19/16 standards ensuring efficient and reliable operation.

MPN: 5V11110000

Supplier Part Number: 5V11110000

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (4)	Supplier Part Number 5V11110000	Product Weight 0.56 lbs	Alternate Part Numbers Alternate Part Number 027671-013, Alternate Part Number 5V11110000, Alternate Part Number C1HV52

Similar Products

Model Number	Key	Product Description
FVL5V11110000 SD11 Series Monoblock Valve	(4)	WALVOIL 5V11110000 SD11 SD16 DETENT KI
3CU1425130 SD11 Series Monoblock Valve	(3)	WALVOIL SPOOL (TYPE 2). STEEL. MOTOR SPO
FVL3XGIU532660 SD11 Series Monoblock Valve	(6)	WALVOIL 3XGIU532660 SD11 POWER BEYOND PL
FVL3XTAP532450 SD11 Series Monoblock Valve	(6)	WALVOIL 3XTAP532450 SD11 CLOSED CENTER P

Product Questions & Answers (5)

Question by: Neal B on Nov 26, 2025, 8:33 AM

what's the temperature range on this detent kit? got equipment sittin outside through some pretty rough winters and hot summers both

Answer by: Customer Support on Nov 27, 2025, 7:26 PM

Running conditions for this kit go from -4°F up to 176°F with the standard Buna-N seals included. Cold storage or non-operating conditions stretch further, down to -40°F on the low end and up to 140°F ambient. So winter cold snaps and summer heat should both fall well within range for most field environments.

Question by: Duane P on Apr 16, 2025, 9:17 AM

What kinda fluid should I be running in this valve?

Answer by: Customer Support on Apr 17, 2025, 8:13 PM

This SD11 series valve needs a fluid viscosity between 80 and 400 SSU for operating, 70 SSU minimum, and 1950 SSU maximum.

Question by: Frank R on Mar 23, 2026, 8:42 PM

got a system that runs about 18 gpm. is that too much for this walvoil SD11/SD16 detent kit?

Answer by: Customer Support on Mar 25, 2026, 6:48 PM

For flow, it lines up. The SD11 series flow rating is 18 GPM, so an 18 GPM system is within the stated rating.

Question by: Shawn P on Jun 8, 2025, 3:03 PM

what's the max pressure this valve can handle runnin a parallel circuit setup?

Answer by: Customer Support on Jun 10, 2025, 6:42 AM

For parallel circuits, the SD11 Series monoblock valve is rated up to 4600 PSI. If you're running a series circuit instead, that ceiling drops to 3600 PSI. Worth knowing upfront so you're sizing your system around the right number.

Question by: Debbie G on Feb 20, 2026, 3:24 PM

got an SD11 or SD16 valve body, is this detent kit the right one for it?

Answer by: Customer Support on Feb 22, 2026, 9:16 AM

For SD11 and SD16 monoblock valves, this part is the detent kit tied to Walvoil part number 5V11110000, so it matches those SD11 or SD16 applications by model.
