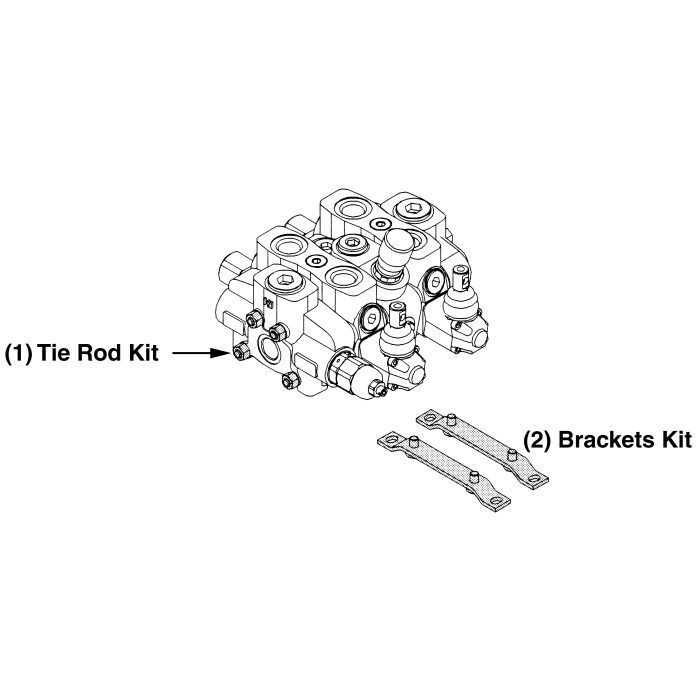

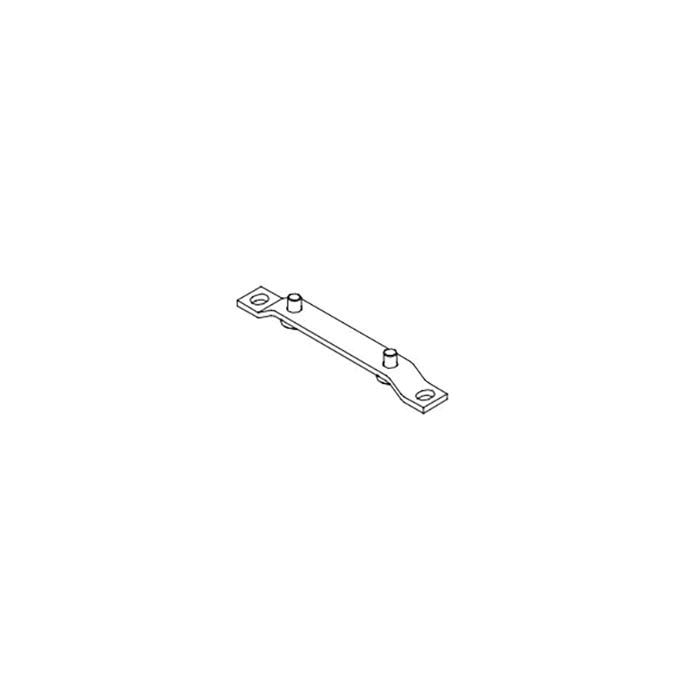

SD16 Series Walvoil SD16 Bracket Kit

The SD16 Series Walvoil SD16 Bracket Kit by Walvoil Fluid Power Corp. features a simple, compact, and heavy-duty sectional design capable of 1 to 12 sections. Designed for both open and closed center hydraulic systems, it includes a main pressure relief valve and a load check valve on every work section.

Offering versatility, the SD16 Series supports parallel, tandem, or series circuits and includes an optional power beyond port. With manual, pneumatic, hydraulic, electro-hydraulic, or cable controls available, this kit meets diverse application needs. It operates efficiently within a fluid temperature range of -4deg;F to 176deg;F using standard Buna-N seals and accommodates fluid viscosity from 80 to 400 SSU.

Key specifications include a flow rating of 37 GPM, a maximum operating pressure of 4600 PSI for parallel or tandem circuits, and 3050 PSI for series circuits. The ambient temperature range is -40deg;F to 140deg;F, and internal leakage is rated at 0.18 insup3;/min at 1450 PSI differential pressure. Recommended filtration is ISO 4406 19/16.

MPN: 5STA125220

Supplier Part Number: 5STA125220
