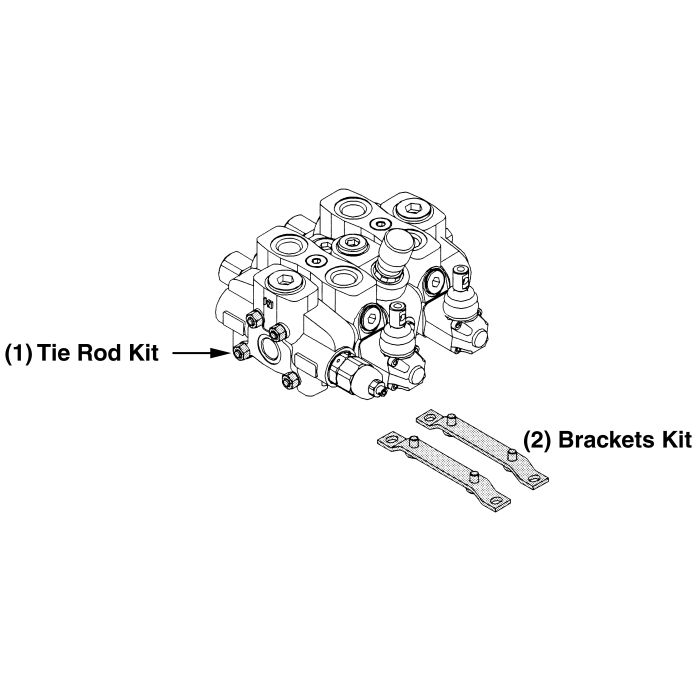

SD16 Series Walvoil SD16/2 Tie Rod Kit

Ask A Question

Description & Features

WALVOIL Fluid Power Corp. offers a robust and efficient solution with the SD16 Series Walvoil SD16/2 Tie Rod Kit. This sectional valve, designed for open and closed center hydraulic systems, guarantees compatibility and reliability in demanding environments.

Featuring a main pressure relief valve and load check valve on every work section, the SD16 Series provides enhanced safety and operational efficiency. The fluid temperature range of -4deg;F to 176deg;F with standard Buna-N seals ensures adaptability across various conditions.

With an ambient temperature range from -40deg;F to 140deg;F, this tie rod kit demonstrates remarkable durability. The maximum operating pressure reaches 4600 PSI for parallel or tandem circuits, and 3050 PSI for series circuits, emphasizing its strength and reliability.

The flow rating of 37 GPM and internal leakage of 0.18 insup3;/min at 1450 PSI differential pressure support optimal performance. This kit is available with multiple control options including manual, pneumatic, hydraulic, electro-hydraulic, or cable controls. Additionally, it features interchangeable spools and an optional power beyond port, offering flexibility for various applications.

Designed with simplicity and compactness in mind, the SD16 Series Walvoil SD16/2 Tie Rod Kit ensures dependable operation. Note: Performance data is measured with mineral oil of 215 SSU viscosity at 104deg;F. Recommended filtration meets ISO 4406 19/16 standards.

Supplier Part Number: 5TIR110218

Specifications

Brand
Walvoil Fluid Power Corp.
Brand
Walvoil Fluid Power
Pack Size
1.00
UOM
EA
Key
(1)
Supplier Part Number
5TIR110218
Alternate Part Numbers
Alternate Part Number C1HU43, Alternate Part Number FVL5TIR110218-W
Product Weight
1.47 lbs

Similar Products

Model Number Key Product Description Price Action
SD16 Series Walvoil SD16 Bracket Kit

5STA125220 SD16 Series Valve Assembly Kit

(2)

WALVOIL SD16 BRACKET KIT.

SD16 Series Walvoil SD16/2 Tie Rod Kit

5TIR110218 SD16 Series Valve Assembly Kit

(1)

WALVOIL SD16/2 TIE ROD KIT.

SD16 Series Walvoil Tie Rod Kit For 3-SECTION SD16 V

5TIR110266 SD16 Series Valve Assembly Kit

(1)

WALVOIL TIE ROD KIT FOR 3-SECTION SD16 V.

SD16 Series Walvoil SD16/4 Tie Rod Kit

5TIR110316 SD16 Series Valve Assembly Kit

(1)

WALVOIL SD16/4 TIE ROD KIT.

SD16 Series Walvoil Tie Rod Kit. For Walvoil SD16-SE

5TIR110554 SD16 Series Valve Assembly Kit

(1)

WALVOIL TIE ROD KIT. FOR WALVOIL SD16-SE.

Product Questions & Answers (5)

Question by: Harvey B on Jan 24, 2026, 5:37 PM
What size are these tie rods for? I'm workin' on an SD16 valve.
Answer by: Customer Support on Jan 26, 2026, 11:20 AM
These tie rod kits are specifically for the Walvoil SD16 series valves.
Question by: Ricky P on Mar 30, 2025, 8:18 PM
what's the operating temp range on this tie rod kit? got equipment running in some pretty harsh conditions and need to know if it'll hold up
Answer by: Customer Support on Apr 1, 2025, 6:52 AM
Ambient temps from -40°F up to 140°F are within spec, and the fluid itself can run anywhere from -4°F to 176°F using the standard Buna-N seals. That covers most working environments pretty well, including cold starts in winter and heat-heavy summer operation.
Question by: Patty E on Mar 31, 2025, 4:42 PM
Can this kit handle some pretty extreme temps, like down to near zero?
Answer by: Customer Support on Apr 2, 2025, 11:34 AM
Absolutely, this tie rod kit is designed to handle fluid temperatures from -4°F to 176°F with the standard Buna-N seals, and ambient temperatures from -40°F to 140°F.
Question by: Harold H on Apr 23, 2025, 7:18 PM
got a SD16 valve stack on a piece of equipment, is this tie rod kit meant for the SD16/2 setup?
Answer by: Customer Support on Apr 25, 2025, 7:01 AM

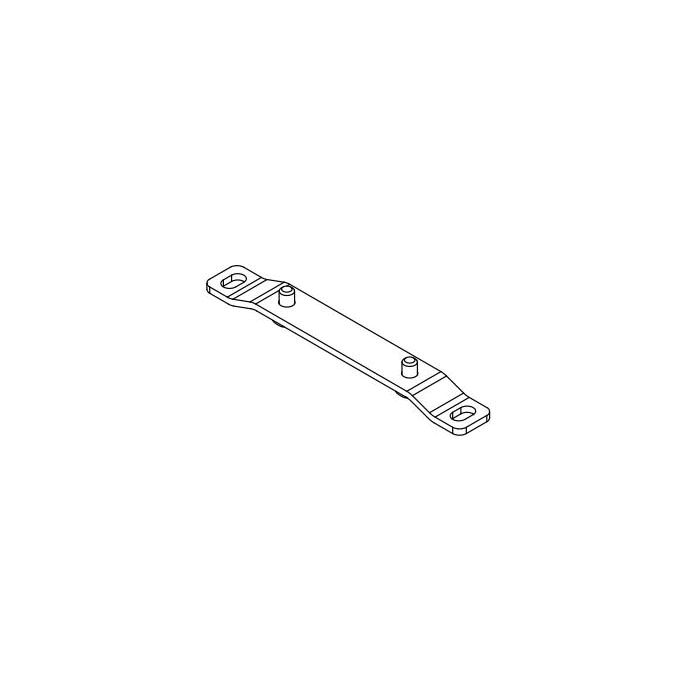

For SD16 sectional valves, this kit is the tie rod and mounting bracket set intended for an SD16/2 assembly.
Question by: Carl B on Apr 6, 2025, 8:58 AM
what's the max pressure this thing'll handle on a parallel circuit setup?
Answer by: Customer Support on Apr 8, 2025, 8:14 AM
Running parallel or tandem, the SD16/2 tops out at 4600 PSI. Drop it into a series circuit and that ceiling comes down to 3050 PSI. Worth keeping in mind when you're speccing this out for a heavier-duty application. Flow rating comes in at 37 GPM, and back pressure on the outlet port T is limited to 360 PSI, so factor that in on the return side too.
