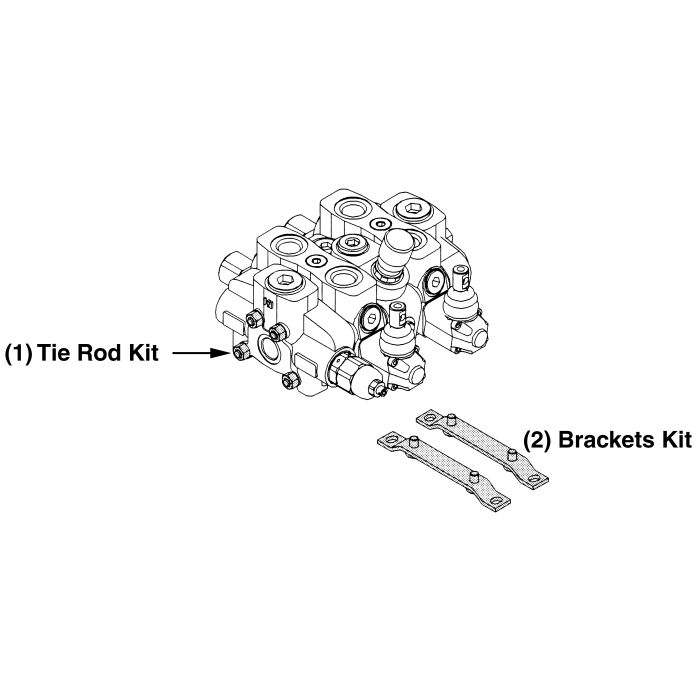

SD16 Series Walvoil Tie Rod Kit For 3-SECTION SD16 V

Description & Features

The SD16 Series Walvoil Tie Rod Kit for 3-SECTION SD16 V is a robust and compact sectional valve solution engineered for open and closed center hydraulic systems. Offering a main pressure relief valve load check valve on every work section and optional power beyond port this kit is versatile and reliable. It supports various control types including manual pneumatic hydraulic electro-hydraulic or cable.

Operating efficiently within an ambient temperature range of -40deg;F to 140deg;F this kit provides a flow rating of 37 GPM and can handle fluid temperatures between -4deg;F and 176deg;F with standard Buna-N seals.

This product ensures minimal internal leakage (0.18 insup3;/min at 1450 PSI differential pressure) and supports a maximum back pressure of 360 PSI on the outlet port. It is designed for optimal performance with mineral oil of 215 SSU viscosity at 104deg;F supporting fluid viscosities from 70 SSU to a maximum of 1950 SSU.

The SD16 Series Walvoil Tie Rod Kit is built for durability capable of withstanding maximum operating pressures of 4600 PSI (Parallel or Tandem circuit) and 3050 PSI (Series circuit). Recommended filtration adheres to ISO 4406 19/16 standards.

MPN: 5TIR110266

Supplier Part Number: 5TIR110266

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (1)	Supplier Part Number 5TIR110266	Alternate Part Numbers Alternate Part Number C1HU46	Product Weight 1.73 lbs

Similar Products

Model Number	Key	Product Description

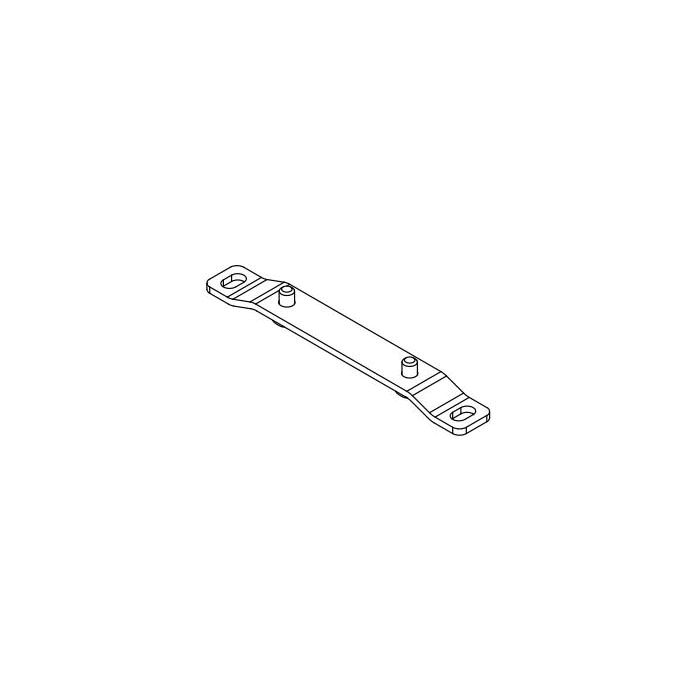

5STA125220 SD16 Series Valve Assembly Kit	(2)	WALVOIL SD16 BRACKET KIT.
5TIR110218 SD16 Series Valve Assembly Kit	(1)	WALVOIL SD16/2 TIE ROD KIT.
5TIR110266 SD16 Series Valve Assembly Kit	(1)	WALVOIL TIE ROD KIT FOR 3-SECTION SD16 V.
5TIR110316 SD16 Series Valve Assembly Kit	(1)	WALVOIL SD16/4 TIE ROD KIT.
5TIR110554 SD16 Series Valve Assembly Kit	(1)	WALVOIL TIE ROD KIT. FOR WALVOIL SD16-SE.

Product Questions & Answers (2)

Question by: Tommy F on Feb 17, 2026, 9:34 AM

Will this tie rod kit work with any SD16 valve, or does it have to be the V series?

Answer by: Customer Support on Feb 19, 2026, 8:42 AM

This particular tie rod kit is designed specifically for the 3-section SD16 V valves.

Question by: Cheryl M on Mar 20, 2026, 9:28 AM

what all control types does this valve kit work with, and does it handle electro-hydraulic setups or just manual?

Answer by: Customer Support on Mar 22, 2026, 6:15 AM

Manual, pneumatic, hydraulic, electro-hydraulic, and cable controls are all supported with this kit. So whether you're running a simple lever setup or something more automated, you've got options. The spools are also interchangeable, which gives you some flexibility if your setup changes down the road.
