SD16 Series Walvoil Tie Rod Kit. For Walvoil SD16-SE

Description & Features

This Walvoil Fluid Power tie rod kit is designed for use with the Walvoil SD16-SE valve.

The SD16 Series Walvoil Tie Rod Kit is suitable for sectional valves ranging from 1 to 12 sections. It is designed for open and closed center hydraulic systems. This kit is manufactured to withstand an ambient temperature range of -40°F to 140°F and a fluid temperature range of -4°F to 176°F when using standard Buna-N seals.

This kit is compatible with parallel, tandem, or series circuits. It features a main pressure relief valve and a load check valve on every work section. The SD16 series valves have a maximum operating pressure of 4600 PSI in parallel or tandem circuits, or 3050 PSI in series circuits. Maximum back pressure is 360 PSI on outlet port T. This valve series has a flow rating of 37 GPM.

SKU: 5TIR110554

Supplier Part Number (MPN): 5TIR110554

Alternate Part Numbers: C1JR82

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (1)	Supplier Part Number 5TIR110554	Alternate Part Numbers Alternate Part Number C1JR82	Product Weight 3.32 lbs

Similar Products

Model Number	Key	Product Description

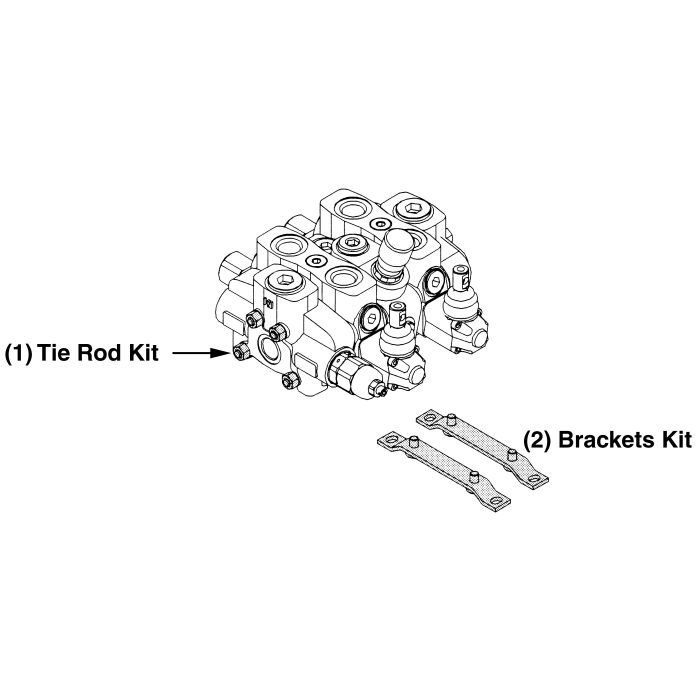

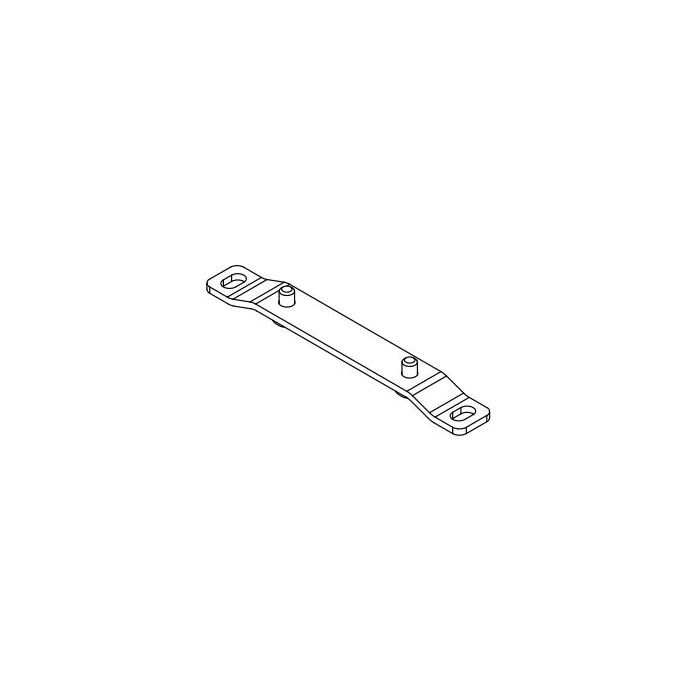

5STA125220 SD16 Series Valve Assembly Kit	(2)	WALVOIL SD16 BRACKET KIT.
5TIR110218 SD16 Series Valve Assembly Kit	(1)	WALVOIL SD16/2 TIE ROD KIT.
5TIR110266 SD16 Series Valve Assembly Kit	(1)	WALVOIL TIE ROD KIT FOR 3-SECTION SD16 V.
5TIR110316 SD16 Series Valve Assembly Kit	(1)	WALVOIL SD16/4 TIE ROD KIT.
5TIR110554 SD16 Series Valve Assembly Kit	(1)	WALVOIL TIE ROD KIT. FOR WALVOIL SD16-SE.
