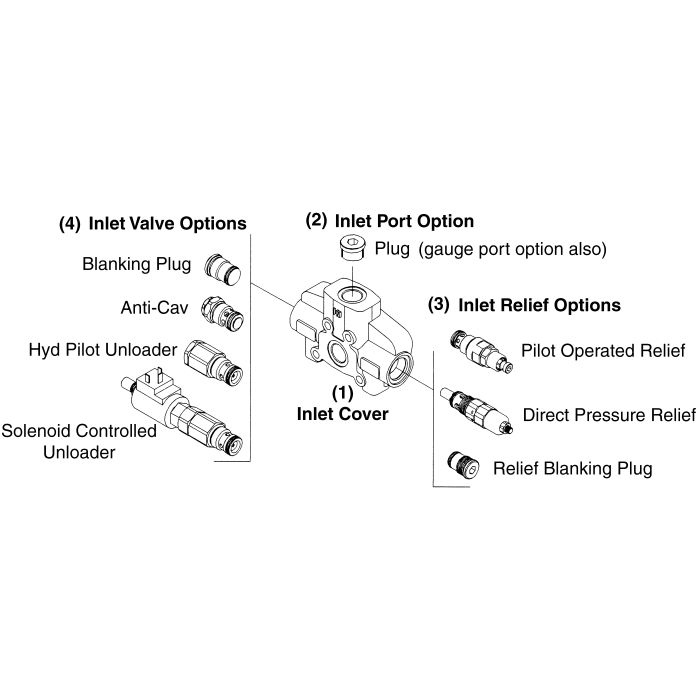

SD16 Series Walvoil SD16 Inlet Cover SDS180/AC (YG3-

Description & Features

The SD16 Series Walvoil SD16 Inlet Cover SDS180/AC (YG3-) is designed for sectional valve configurations ranging from 1 to 12 sections. Suitable for open and closed center hydraulic systems, it features a main pressure relief valve and load check valve on each work section.

Operating within a fluid temperature range of -4deg;F to 176deg;F with standard Buna-N seals, the inlet cover handles a fluid viscosity of 80 to 400 SSU. Its ambient temperature range spans from -40deg;F to 140deg;F. Flow rating stands at 37 GPM.

Key attributes include a maximum operating pressure of 4600 PSI in parallel or tandem circuits, and a maximum back pressure of 360 PSI on the outlet port. Internal leakage is minimal at 0.18 insup3;/min at a pressure differential of 1450 PSI. This valve utilizes interchangeable spools and offers optional power beyond port and a variety of control methods including manual, pneumatic, hydraulic, electro-hydraulic, or cable controls.

Performance data is based on measurements using mineral oil of 215 SSU viscosity at 104deg;F.

MPN: C1KK61

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (1)	Supplier Part Number 618205001	Alternate Part Numbers Alternate Part Number C1KK61, Alternate Part Number FVL618205001	Product Weight 9.50 lbs

Similar Products

Model Number	Key	Product Description	Price	Action
618205001 SD16 Series Valve Inlet Cover	(1)	WALVOIL SD16 INLET COVER SDS180/AC (YG3-.
618205004 SD16 Series Valve Inlet Cover	(1)	WALVOIL INLET COVER SD16 (FE SD16/AC(XG-.

Product Questions & Answers (4)

Question by: Jimmy G on May 27, 2025, 1:34 PM

what's the max pressure this inlet cover is rated for, and does it change depending on how the circuit's set up?

Answer by: Customer Support on May 28, 2025, 4:17 PM

Pressure ratings do vary based on circuit type. Running a parallel or tandem circuit, you're looking at up to 4600 PSI. Drop it into a series circuit and that ceiling comes down to 3050 PSI. Worth keeping that in mind before you spec it out, because the difference is pretty significant depending on how your system's configured.

Question by: Dale S on Oct 25, 2025, 6:33 AM

Trying to keep my SD16 valve setup straight, what exactly is this inlet cover used for?

Answer by: Customer Support on Oct 26, 2025, 8:57 PM

On an SD16 sectional valve, the inlet cover is the end piece that forms the inlet side of the valve assembly. It is part of the SD16 Series setup that supports open or closed center hydraulic systems and ties into features like the main pressure relief valve and the load check valves used on each work section.

Question by: Hubert C on Jul 16, 2025, 9:01 PM

got a SD16 stack thats 6 sections. is this inlet cover the right style or is it only for certain setups?

Answer by: Customer Support on Jul 18, 2025, 7:19 AM

Built for SD16 sectional valve stacks from 1 to 12 sections, this inlet cover fits that style of configuration and works with either open center or closed center hydraulic systems.

Question by: Dwayne P on Oct 13, 2025, 8:42 PM

What kind of hydraulic systems work with this inlet cover? I've got both open and closed center setups.

Answer by: Customer Support on Oct 15, 2025, 3:17 PM

This Walvoil SD16 inlet cover is suitable for both open and closed center hydraulic systems.
