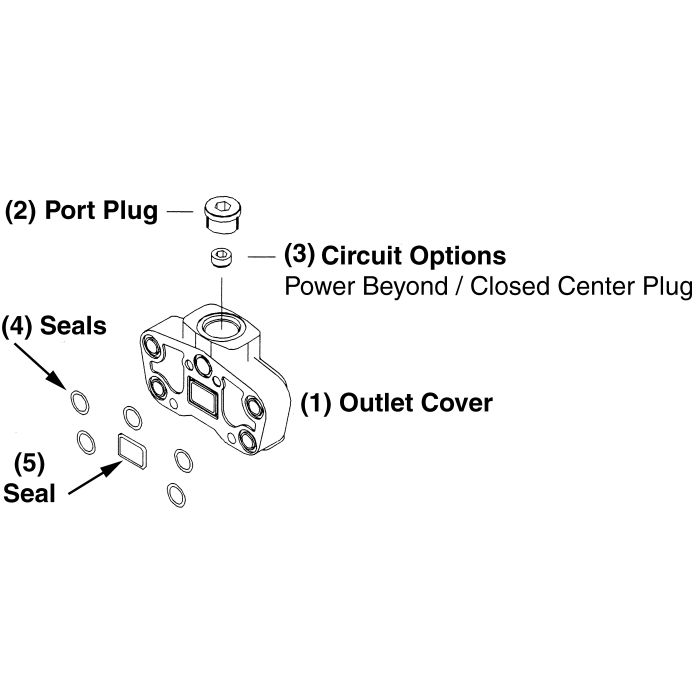

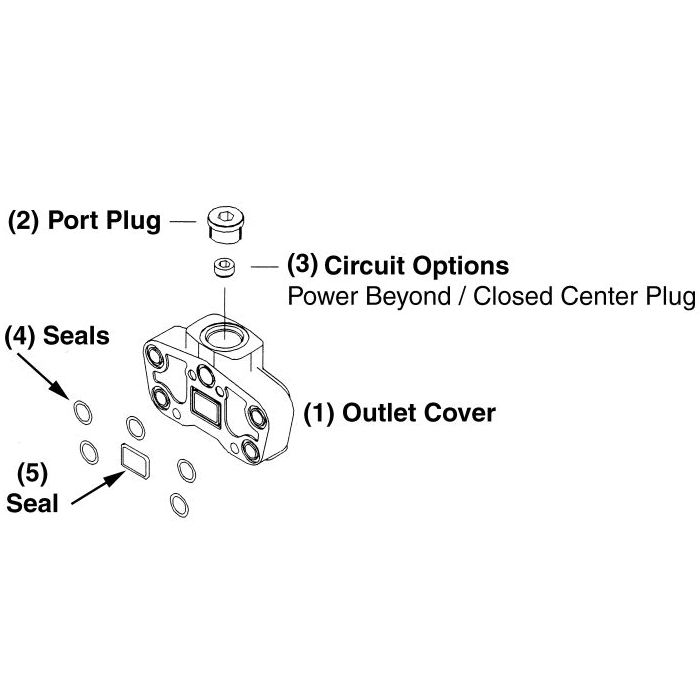

SD16 Series Walvoil OUTLET Cover For SD16 Series (FS

Description & Features

The WALVOIL SD16 Series Outlet Cover for SD16 Series (FS) is a sturdy and compact sectional valve solution, suitable for both open and closed center hydraulic systems. It features a main pressure relief valve, load check valve on every work section, and is available with parallel, tandem or series circuits.

Designed to handle a maximum operating pressure of 4600 PSI for parallel or tandem circuits, and 3050 PSI for series circuits, this outlet cover includes an optional power beyond port and interchangeable spools. It ensures efficient fluid management with a flow rating of 37 GPM, a fluid temperature range from -4deg;F to 176deg;F, and fluid viscosity from 80 to 400 SSU operating.

With internal leakage of 0.18 insup3;/min at 1450 PSI differential pressure, and a maximum back pressure of 360 PSI on the outlet port, it's engineered for robust performance in demanding environments. This product is compatible with various control types, including manual, pneumatic, hydraulic, electro-hydraulic, and cable.

Performance data is measured with mineral oil of 215 SSU viscosity at 104deg;F. The recommended filtration standard is ISO 4406 19/16, ensuring longevity and reliability.

MPN: C1KF76

Supplier Part Number: FVL618305003

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (1)	Supplier Part Number FVL618305003	Alternate Part Numbers Alternate Part Number 615305003, Alternate Part Number C1HV30, Alternate Part Number C1KF76, Alternate Part Number FVL618305003	Product Weight 10.00 lbs

Product Questions & Answers (5)

Question by: Duane M on Jun 2, 2025, 1:40 PM

outlet cover for the SD16, does this thing handle pretty high pressures or is it more of a low-pressure application part?

Answer by: Customer Support on Jun 4, 2025, 6:20 AM

Rated up to 4600 PSI on parallel or tandem circuit configurations, so it holds up well in demanding hydraulic setups. Series circuit use drops that ceiling to 3050 PSI. Back pressure on the outlet port T is capped at 360 PSI, so that limit is worth keeping in mind when sizing the rest of your system around it.

Question by: Tammy P on Jan 5, 2026, 5:22 PM

Wondering if this outlet cover will fit my SD16 Walvoil valve. Gotta make sure it's the right one, y'know?

Answer by: Customer Support on Jan 6, 2026, 6:56 PM

This outlet cover is specifically made for the Walvoil SD16 series valves, part number FVL618305003.

Question by: Ralph P on Aug 23, 2025, 9:39 AM

got a Walvoil SD16 valve bank, is this the right outlet cover for that series?

Answer by: Customer Support on Aug 24, 2025, 12:05 PM

The key detail is the model label. It is an outlet cover made for the Walvoil SD16 Series sectional valve, and the supplier part number is FVL618305003 (SKU 618305003).

Question by: Wade R on Jan 30, 2026, 9:55 AM

what's the max pressure this outlet cover can handle on a parallel circuit setup?

Answer by: Customer Support on Jan 31, 2026, 12:23 PM

For parallel or tandem circuits, the SD16 series outlet cover is rated up to 4600 PSI. If you're running a series circuit though, that number drops to 3050 PSI. Worth keeping in mind when you're figuring out which configuration fits your system.

Question by: Earl H on Jan 24, 2026, 4:59 PM

Will this outlet cover work with any of the Walvoil SD16 valves?

Answer by: Customer Support on Jan 26, 2026, 9:07 AM

This outlet cover is specifically designed for the Walvoil SD16 series valves, ensuring proper fit and function.
