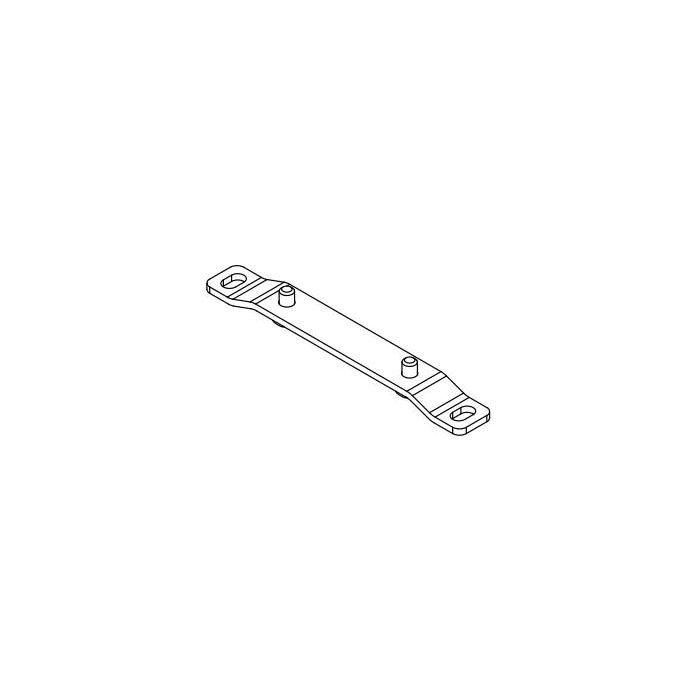

SD25 Series Walvoil Tie Rod Kit For A 1-SECTION SD25

Description & Features

This Walvoil Fluid Power tie rod kit is designed for use with a single-section SD25 Series valve assembly. Walvoil SD25 Series valves are known for their simple, compact, heavy-duty design, suitable for both open and closed center hydraulic systems.

The SD25 Series Walvoil Tie Rod Kit For A 1-SECTION SD25 is suitable for use in ambient temperatures ranging from -40°F to 140°F, and fluid temperatures from -4°F to 176°F when using standard Buna-N seals. These valves can handle a maximum operating pressure of 4600 PSI in parallel circuits or 3050 PSI in series circuits.

SKU: 5TIR112234

Supplier Part Number (MPN): 5TIR112234

Alternate Part Numbers: C1HU61

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (1)	Supplier Part Number 5TIR112234	Alternate Part Numbers Alternate Part Number C1HU61	Product Weight 2.16 lbs

Similar Products

Model Number	Key	Product Description	Price	Action
5TIR112234 SD25 Series Valve Assembly Kit	(1)	WALVOIL TIE ROD KIT FOR A 1-SECTION SD25
5TIR112296 SD25 Series Valve Assembly Kit	(1)	WALVOIL SD25/2 TIE ROD KIT

Product Questions & Answers (3)

Question by: Phil M on Feb 5, 2026, 2:57 PM

i’ve got a Walvoil SD25 valve with just one section. is this tie rod kit the right one for that setup?

Answer by: Customer Support on Feb 7, 2026, 6:32 AM

For a 1-section Walvoil SD25 Series sectional valve, this kit matches that configuration. It is specifically called out as a tie rod kit for a 1-section SD25.

Question by: Curt P on Sep 11, 2025, 9:37 AM

Will this tie rod kit work with any SD25 valve, or is it specific to a certain number of sections?

Answer by: Customer Support on Sep 12, 2025, 9:37 PM

This tie rod kit is specifically for a 1-section SD25 Walvoil valve.

Question by: Brent R on Aug 6, 2025, 5:35 PM

what's the operating temp range on this tie rod kit? got equipment running in some pretty cold conditions and need to make sure it'll hold up

Answer by: Customer Support on Aug 8, 2025, 8:17 AM

Cold weather shouldn't be a problem for this kit. The ambient temperature rating runs from -40°F up to 140°F, and the fluid temperature range with standard Buna-N seals goes from -4°F to 176°F. As long as your hydraulic fluid stays within that fluid temp window, you're well within spec even in harsh winter conditions.
