SD25 Series Walvoil SD25

Description & Features

The Walvoil SD25 Series valve outlet cover is designed for use with sectional valves in open and closed center hydraulic systems. Suitable for a range of applications, it can be configured with parallel or series circuits and offers an optional power beyond port.

This valve cover is compatible with mineral oil and designed to perform in ambient temperatures ranging from -40°F to 140°F. It is engineered to withstand a maximum back pressure of 360 PSI on outlet port T and a maximum operating pressure of 4600 PSI in parallel circuits or 3050 PSI in series circuits. The valve also features a simple, compact, and heavy-duty design, with a main pressure relief valve and load check valve on every work section.

SKU: 4TAP426612

Supplier Part Number (MPN): 4TAP426612

Alternate Part Numbers: C1HT31

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (3)	Supplier Part Number 4TAP426612	Alternate Part Numbers Alternate Part Number C1HT31	Product Weight 0.08 lbs

Similar Products

Model Number	Key	Product Description	Price	Action

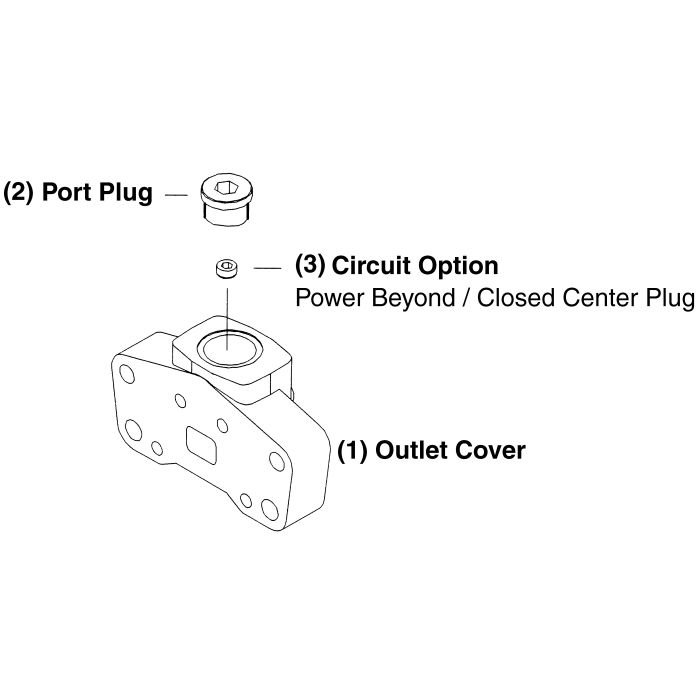

4TAP426612 SD25 Series Valve Outlet Cover	(3)	WALVOIL SD25 RE/RK POWER BEYOND/CLOSED C.

Product Questions & Answers (1)

Question by: Travis B on Mar 29, 2025, 8:16 PM

what's the max pressure this valve handles in a parallel circuit setup?

Answer by: Customer Support on Mar 31, 2025, 8:07 AM

Running parallel circuit, the SD25 tops out at 4600 PSI. If you're on a series circuit, that number drops to 3050 PSI. Worth knowing before you spec it into anything that's pushing the upper end.
