SD25 Series Walvoil SD25 Cylinder Spool TYPE 1IM

Description & Features

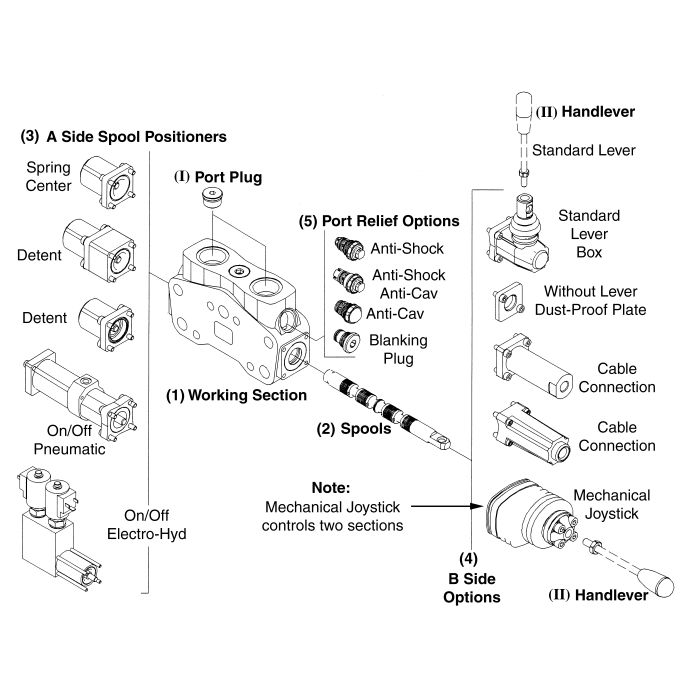

This Walvoil SD25 Series valve work section is designed for use in open and closed center hydraulic systems. This cylinder spool type 1IM is a simple, compact, heavy-duty sectional valve that can be configured from 1 to 12 sections.

Every work section features a load check valve. Main pressure relief is included. Parallel or series circuits are available. An optional power beyond port adds versatility. Control options include manual, pneumatic, hydraulic, electro-hydraulic, or cable controls. Spools are interchangeable to meet custom requirements. It has a 63 GPM flow rating.

This valve section is compatible with mineral oil fluids with a viscosity between 80 to 400 SSU operating, 70 SSU minimum, and 1950 SSU maximum. It withstands a maximum back pressure of 360 PSI on outlet port T. The SD25 Series Walvoil SD25 Cylinder Spool TYPE 1IM has a maximum operating pressure of 4600 PSI in parallel circuits and 3050 PSI in series circuits.

SKU: 3CU2710420

Supplier Part Number (MPN): 3CU2710420

Alternate Part Numbers: C1HS90

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (2)	Supplier Part Number 3CU2710420	Alternate Part Numbers Alternate Part Number C1HS90	Product Weight 1.73 lbs

Similar Products

Model Number	Key	Product Description
3CU2710420 SD25 Series Valve Work Section	(2)	WALVOIL SD25 CYLINDER SPOOL TYPE 1IM.
3CU2725100 SD25 Series Valve Work Section	(2)	WALVOIL SD25 MOTOR SPOOL TYPE 2.
3CU2725420 SD25 Series Valve Work Section	(3)	WALVOIL SD25 MOTOR SPOOL TYPE 2IM.
5IDR225700 SD25 Series Valve Work Section	(3)	WALVOIL SD25 8IM-SAE REMOTE HYDRAULIC KI.
5V11120000 SD25 Series Valve Work Section	(3)	WALVOIL SD25 -11 3 POS DETENT KIT.

Product Questions & Answers (2)

Question by: Cody L on Aug 4, 2025, 4:43 PM

What's the temperature range on this thing? Got equipment running in some pretty brutal conditions and need to know if it'll hold up.

Answer by: Customer Support on Aug 6, 2025, 7:09 AM

Ambient temps between -40°F and 140°F are within spec for this spool. On the fluid side, you're looking at -4°F to 176°F using the standard Buna-N seals. So unless you're dealing with something truly extreme on either end, it should handle most field conditions without issue.

Question by: Joyce J on Aug 11, 2025, 2:37 PM

Can this valve handle a good bit of pressure? I'm running some heavy equipment.

Answer by: Customer Support on Aug 12, 2025, 8:27 PM

It’s rated for up to 4600 PSI in parallel circuits, but only 3050 PSI in series circuits. Make sure your system is within those limits.
