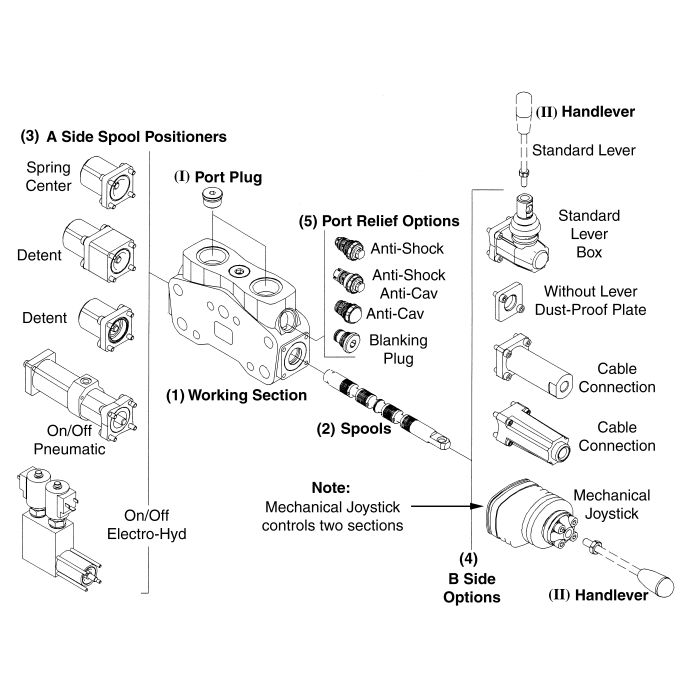

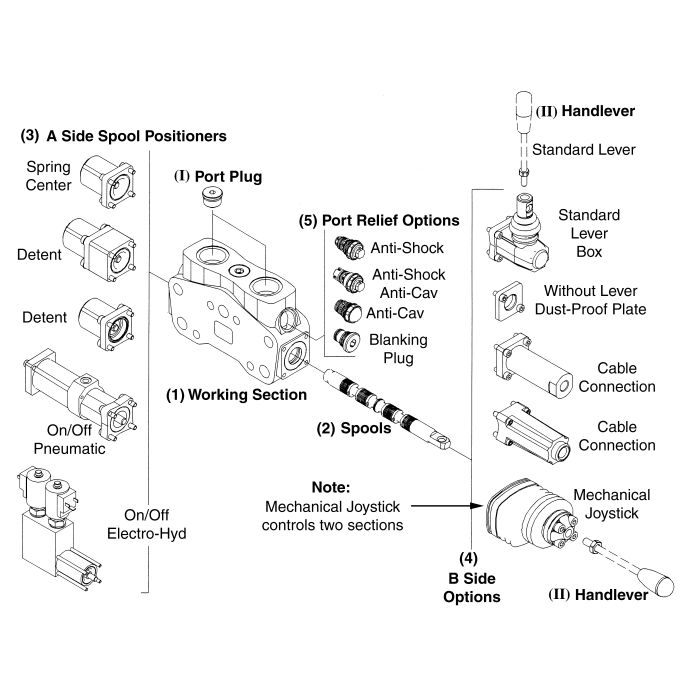

main product photo

SD25 Series WALVOIL SD25 MOTOR SPOOL TYPE 2

Ask A Question

Description & Features

Designed for demanding hydraulic systems, the Walvoil SD25 Series Motor Spool Type 2 valve offers exceptional performance with its robust sectional design. This valve supports both open and closed center systems and can be tailored with up to 12 sections. Featuring a main pressure relief valve and load check valve on each section, it ensures reliability and safety under high pressure. The unit accommodates a flow rating of 63 GPM and operates efficiently within a pressure range of up to 4600 PSI for parallel circuits and 3050 PSI for series circuits.

Operating in ambient temperatures from -40°F to 140°F, this valve is adaptable for various industrial environments. Its versatility is further enhanced by interchangeable spools and multiple control options, including manual, pneumatic, and electro-hydraulic controls. The SD25 Series valve is engineered for durability, withstanding fluid temperatures from -4°F to 176°F when using standard Buna-N seals, and offers minimal internal leakage.

SKU: 3CU2725100

Supplier Part Number (MPN): 3CU2725100

Alternate Part Numbers: C1HS91

Specifications

Brand
Walvoil
Key
2
Product Type
Type-2 Motor Spool
Sg Maximum Back Pressure
360 psi on Outlet Port T
Sg Maximum Operating Pressure
4600 psi Parallel Circuit, 3050 psi Series Circuit
Suitable For Use With
SD25 Sectional Valves

Similar Products

Model Number Key Product Description Price Action
SD25 Series Walvoil SD25 Cylinder Spool TYPE 1IM

3CU2710420 SD25 Series Valve Work Section

(2)

WALVOIL SD25 CYLINDER SPOOL TYPE 1IM.

SD25 Series Walvoil SD25 Motor Spool TYPE 2IM

3CU2725420 SD25 Series Valve Work Section

(3)

WALVOIL SD25 MOTOR SPOOL TYPE 2IM.

SD25 Series Walvoil SD25 8IM-SAE REMOTE Hydraulic KI

5IDR225700 SD25 Series Valve Work Section

(3)

WALVOIL SD25 8IM-SAE REMOTE HYDRAULIC KI.

SD25 Series WALVOIL SD25 -11 3 POS DETENT KIT

5V11120000 SD25 Series Valve Work Section

(3)

WALVOIL SD25 -11 3 POS DETENT KIT.

Product Questions & Answers (3)

Question by: Scott B on Feb 7, 2026, 3:04 PM
What's the max pressure this valve section can handle, and does it change depending on how the circuit's set up?
Answer by: Customer Support on Feb 8, 2026, 7:15 PM
Pressure ratings do differ based on circuit configuration. Running a parallel circuit, you're looking at up to 4600 PSI. Drop it into a series circuit and that ceiling comes down to 3050 PSI. Either way, back pressure on the outlet port T tops out at 360 PSI, so that's worth keeping in mind when you're sizing the rest of your system.
Question by: Wade B on Sep 17, 2025, 6:03 AM
Is this here valve good for runnin' a hydraulic motor?
Answer by: Customer Support on Sep 18, 2025, 9:19 PM
This Walvoil SD25 section is indeed the motor spool type, as stated in the product name, so it's specifically configured for hydraulic motor applications.
Question by: Hubert W on Sep 17, 2025, 9:10 PM
got a motor function on my SD25 stack, what’s “motor spool type 2” actually do compared to a regular cylinder spool
Answer by: Customer Support on Sep 19, 2025, 2:40 PM
Motor spool type 2 is a work section spool setup intended for running a hydraulic motor, not a cylinder. In a sectional SD25 valve, the spool choice controls how flow is metered and how the A and B work ports behave in neutral and during shifting, which is why Walvoil offers interchangeable spools for different functions.
