SD25 Series Walvoil SD25 8IM-SAE REMOTE Hydraulic KI

Description & Features

Designed for robust hydraulic systems, the Walvoil SD25 Series 8IM-SAE Remote Hydraulic KI offers a simple, compact, and heavy-duty sectional valve configuration. Suitable for both open and closed center systems, it features a main pressure relief valve and a load check valve on each work section, ensuring reliable performance. The valve supports a maximum operating pressure of 4600 PSI in parallel circuits and 3050 PSI in series circuits, with a flow rating of 63 GPM. It operates efficiently within fluid temperature ranges from -4°F to 176°F, and ambient temperatures from -40°F to 140°F, making it versatile for various industrial applications.

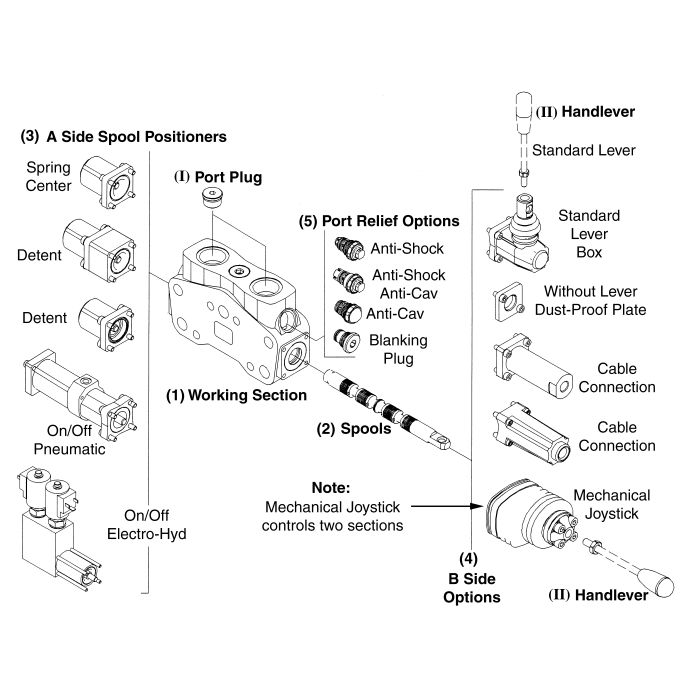

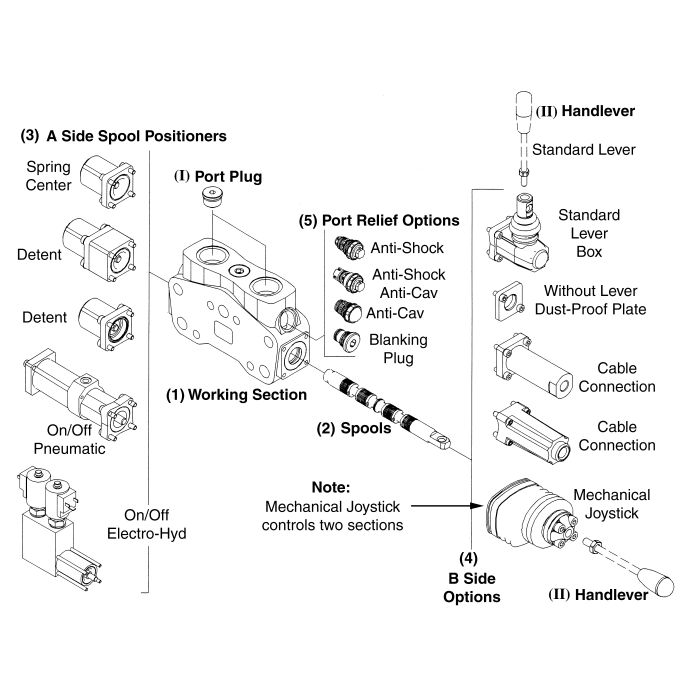

Additional options include parallel or series circuits, manual, pneumatic, hydraulic, electro-hydraulic, or cable controls, and an optional power beyond port. The valve is designed with interchangeable spools for adaptability in diverse settings, and efficient filtration is recommended at ISO 4406 19/16.

SKU: 5IDR225700

Supplier Part Number (MPN): 5IDR225700

Alternate Part Numbers: C1HT46

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (3)	Supplier Part Number 5IDR225700	Alternate Part Numbers Alternate Part Number C1HT46	Product Weight 2.61 lbs

Similar Products

Model Number	Key	Product Description
3CU2710420 SD25 Series Valve Work Section	(2)	WALVOIL SD25 CYLINDER SPOOL TYPE 1IM.
3CU2725100 SD25 Series Valve Work Section	(2)	WALVOIL SD25 MOTOR SPOOL TYPE 2.
3CU2725420 SD25 Series Valve Work Section	(3)	WALVOIL SD25 MOTOR SPOOL TYPE 2IM.
5IDR225700 SD25 Series Valve Work Section	(3)	WALVOIL SD25 8IM-SAE REMOTE HYDRAULIC KI.
5V11120000 SD25 Series Valve Work Section	(3)	WALVOIL SD25 -11 3 POS DETENT KIT.

Product Questions & Answers (1)

Question by: Steve R on Sep 23, 2025, 2:19 PM

what's the max pressure this valve'll handle on a parallel circuit setup?

Answer by: Customer Support on Sep 24, 2025, 4:12 PM

Running parallel circuit, the SD25 is rated up to 4600 PSI. If you're on a series circuit instead, that number drops to 3050 PSI. Worth knowing before you size it into your system, because those are two pretty different limits depending on how your hydraulics are laid out.
