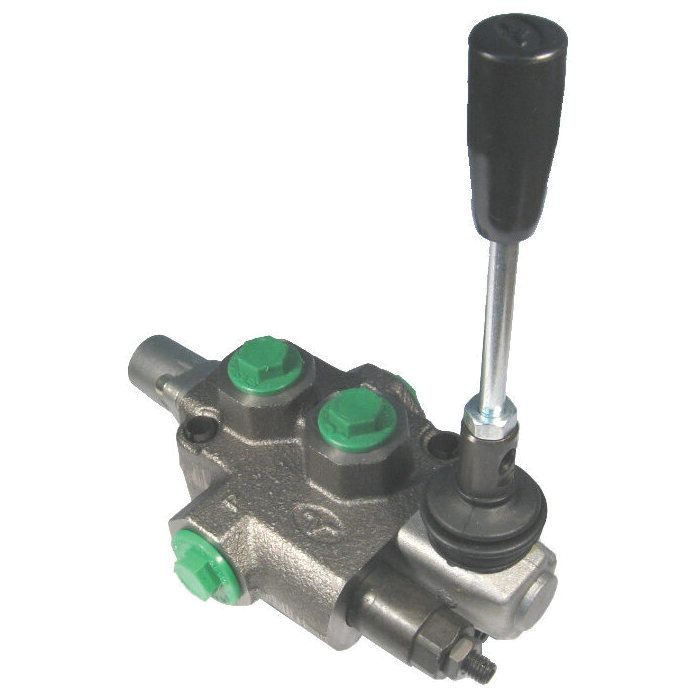

SD4 Series Walvoil 5V11104000 SD4 DETENT Kit

Description & Features

The SD4 Series Walvoil 5V11104000 SD4 Detent Kit is designed for monoblock hydraulic systems with an ambient temperature range of -40F to 140F. It features a simple and compact one-spool valve making it suitable for both open and closed center hydraulic systems. The kit includes a main pressure relief valve and offers optional rotary and detent kick-out controls as well as an optional cable control for enhanced versatility.

With a flow rating of 12 GPM this detent kit supports a wide range of fluid viscosities from 80 to 400 SSU in operating conditions with a minimum of 70 SSU and a maximum of 1950 SSU. The internal leakage is measured at 0.18 in/min at 1450 PSI differential pressure. The maximum back pressure on outlet port T is 360 PSI and the maximum operating pressure is 3600 PSI.

Recommended filtration for this kit is ISO 4406 19/16 and it operates within a temperature range of -4F to 176F with standard Buna-N seals. The interchangeable spools add to the adaptability of this Walvoil product ensuring reliable performance across various applications.

MPN 5V11104000

Supplier Part Number 5V11104000

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (4)	Supplier Part Number 5V11104000	Product Weight 0.16 lbs	Alternate Part Numbers Alternate Part Number C1HV51

Similar Products

Model Number	Key	Product Description	Price	Action
FVL5LEV105000 SD4 Series Monoblock Valve	(5)	WALVOIL 5LEV105000 SD4 LEVER BOX.
FVL5V11104000 SD4 Series Monoblock Valve	(4)	WALVOIL 5V11104000 SD4 DETENT KIT.

Product Questions & Answers (2)

Question by: Dustin G on Apr 14, 2025, 6:50 PM

What kind of hydraulic systems does this detent kit work with? Open or closed?

Answer by: Customer Support on Apr 16, 2025, 6:05 AM

It's designed for both open and closed center hydraulic systems. It uses a simple one-spool valve to make that happen.

Question by: Kent P on Nov 9, 2025, 7:18 AM

got a walvoil sd4 setup already, is this 5V11104000 detent kit the right one to swap in?

Answer by: Customer Support on Nov 10, 2025, 9:38 AM

For replacement matching, the key identifier is the manufacturer part number. This detent kit is Walvoil MPN 5V11104000, and it also crosses to catalog number C1HV51, so it’s a direct match when those numbers are what you’re replacing.
