Hydraulic Power Systems & Components
Hydraulic Valves & Accessories
Premium Selector Valves
SD5 Series 2-Wheel / 4-Wheel Selector Valves, Up To 5000 PSI & 50 GPM

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

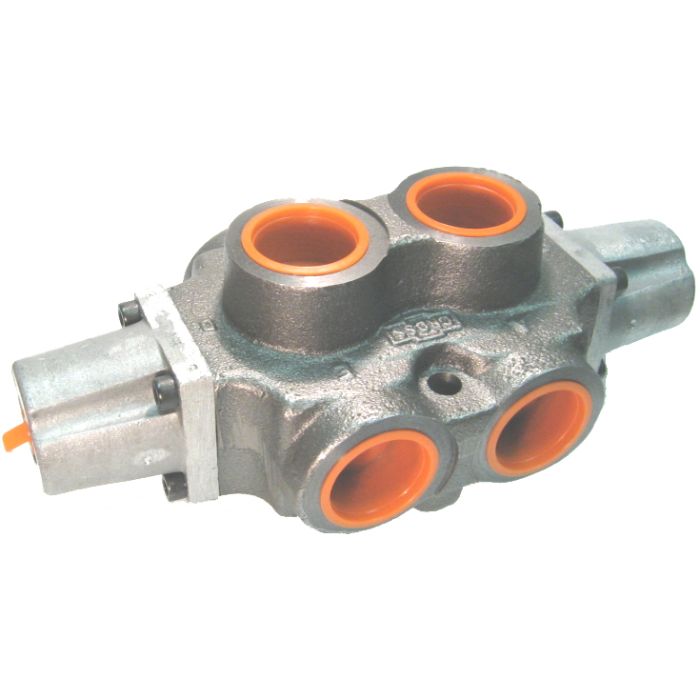

SD5 Series 2-Wheel / 4-Wheel Selector Valves, Up To 5000 PSI & 50 GPM

Description & Features

Application Note	When in 2-wheel drive, supercharge oil is supplied to the non-driving motors, preventing cavitation. When operating in 2-wheel drive for long periods of time, it may be necessary to occasionally shift into 4-wheel drive in order to cool the non-driving wheel motors.
Available Options	Ports - 1/2 NPT, SAE-8, SAE-12, SAE-16. Actuator - Handle, Knob, Clevis, Pilot, 12VDC Solenoid.
Construction	High tensile strength cast iron body. Ground, plated & polished steel spool. Buna-N seals.
Specifications	Maximum working pressure: 5000 PSI. Maximum shock & surge pressure: 6000 PSI. Maximum flow capacity: 50 GPM.

Products

Model Number	Actuator Location	Actuator Option	Control	Circuit Type	Price	Action
SD5BUBA7 SD5 Series Selector Valve	Port D Side	Hydraulic Pilot	Spring Return	2-Wheel / 4-Wheel Selector

Product Questions & Answers (1)

Question by: Scott P on Sep 23, 2025, 5:44 PM

What size ports does this selector valve use?

Answer by: Customer Support on Sep 25, 2025, 6:25 AM

Available port options include 1/2 NPT, SAE-8, SAE-12, and SAE-16.
