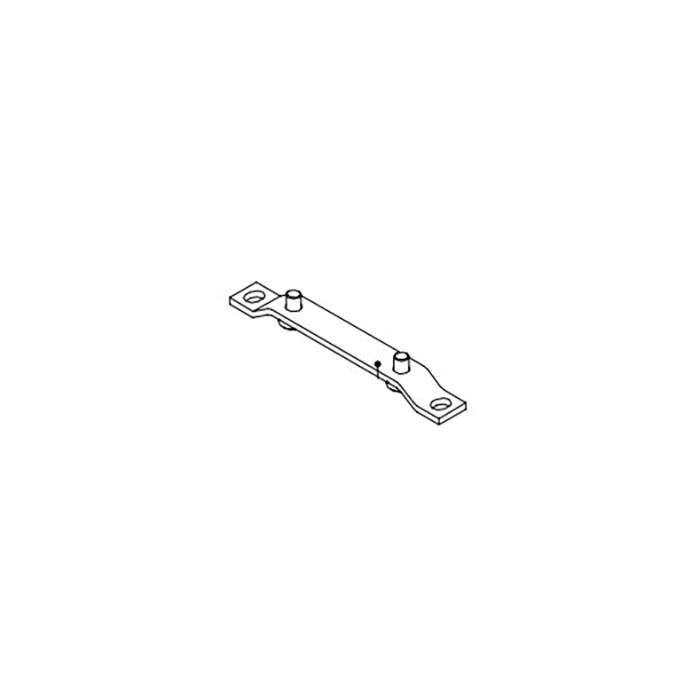

SD6 Series Walvoil SD6 Bracket Kit

Ask A Question

Description & Features

Designed as a mounting accessory for the Walvoil SD6 Series sectional directional control valve, the SD6 Series Walvoil SD6 Bracket Kit provides the hardware needed to properly secure and position the valve assembly in mobile and industrial hydraulic installations. The SD6 valve family supports configurations from 1 to 12 sections and is compatible with open and closed center hydraulic systems, making the bracket kit applicable across a broad range of equipment layouts.

Rated for fluid temperatures from -4°F to 176°F with standard Buna-N seals and an ambient range of -40°F to 140°F, this kit is suited to demanding environmental conditions. The associated valve accepts flow up to 12 GPM at maximum operating pressures of 4600 PSI in parallel or tandem circuits, or 3050 PSI in series circuits. Recommended system filtration is ISO 4406 19/16. Catalog number C1HT99 cross-references this kit within the Walvoil Fluid Power product line.

SKU: 5STA120160

Supplier Part Number (MPN): 5STA120160

Alternate Part Numbers: C1HT99

Specifications

Brand
Walvoil
Key
2
Sg Fluid Viscosity
80 to 400 SSU Operating, 70 SSU Minimum, 1950 SSU Maximum
Sg Internal Leakage
0.18 cu-in/min at 1450 psi Differential Pressure
Sg Maximum Back Pressure
360 psi on Outlet Port T
Sg Recommended Filtration
19/16 um
Suitable For Use With
SD6 - DLS7 Series Sectional Directional Control Valves

Similar Products

Model Number Key Product Description Price Action
SD6 Series Walvoil SD6/3 Tie Rod Kit

5TIR108193 SD6 Assembly Kit

(1)

WALVOIL SD6/3 TIE ROD KIT

SD6 Series Walvoil SD6/1 Tie Rod Kit

5TIR108117 SD6 Assembly Kit

WALVOIL SD6/1 TIE ROD KIT

SD6 Series Walvoil SD6/2 Tie Rod Kit

5TIR108155 SD6 Assembly Kit

(1)

WALVOIL SD6/2 TIE ROD KIT

SD6 Series Walvoil Tie Rod Kit. For Walvoil SD6-SER

5TIR108231 SD6 Assembly Kit

(1)

WALVOIL TIE ROD KIT. FOR WALVOIL SD6-SER

Product Questions & Answers (2)

Question by: Harold P on Sep 8, 2025, 4:15 PM
got an SD6 sectional valve on a little trailer rig. what’s this bracket kit meant to do?
Answer by: Customer Support on Sep 10, 2025, 8:00 AM
It’s a mounting bracket kit intended for the Walvoil SD6 Series sectional valve setup, which is a compact heavy duty valve platform that can be built from 1 to 12 sections for open or closed center systems.
Question by: Neal A on Dec 6, 2025, 8:57 AM
bracket kit for the SD6 walvoil -- does this come with everything needed or is it just the bracket itself?
Answer by: Customer Support on Dec 7, 2025, 11:11 AM
The kit includes the bracket along with two keys, which are listed as part of the assembly. It's built around the SD6 series sectional valve and supports configurations ranging from 1 to 12 sections. Whether that covers everything for your specific setup depends on what controls and circuit type you're running, but the core hardware for mounting is included in the kit.
