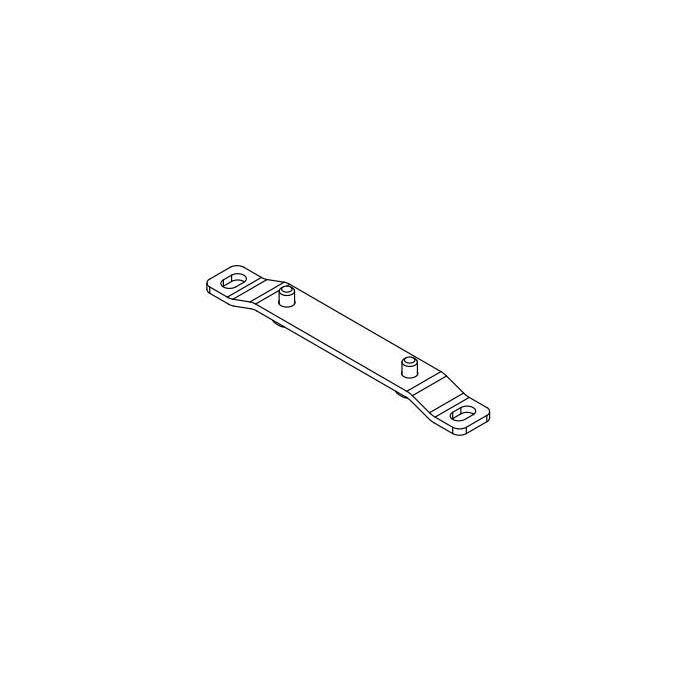

SD6 Series Walvoil SD6/1 Tie Rod Kit

Description & Features

Designed as a replacement hardware component for Walvoil SD6 Series sectional directional control valves, the SD6 Series Walvoil SD6/1 Tie Rod Kit supports proper assembly and structural integrity across multi-section valve configurations ranging from 1 to 12 sections. These valves are rated for a maximum operating pressure of 4600 PSI in parallel or tandem circuits and 3050 PSI in series circuits, with a flow rating of 12 GPM.

The SD6 valve platform accommodates open and closed center hydraulic systems and supports a wide range of control options, including manual, solenoid, pneumatic, hydraulic, electro-hydraulic, and cable actuation. Standard Buna-N seals allow for fluid temperatures from -4°F to 176°F, with an ambient operating range of -40°F to 140°F. Recommended system filtration is ISO 4406 19/16. This kit is a direct fit for SD6/1 valve assemblies and is identified under alternate part number C1HU15.

SKU: 5TIR108117

Supplier Part Number (MPN): 5TIR108117

Alternate Part Numbers: C1HU15

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Supplier Part Number 5TIR108117	Alternate Part Numbers Alternate Part Number C1HU15	Product Weight 0.37 lbs

Similar Products

Model Number	Key	Product Description
5STA120160 SD6 Assembly Kit	(2)	WALVOIL SD6 BRACKET KIT
5TIR108193 SD6 Assembly Kit	(1)	WALVOIL SD6/3 TIE ROD KIT
5TIR108117 SD6 Assembly Kit		WALVOIL SD6/1 TIE ROD KIT
5TIR108155 SD6 Assembly Kit	(1)	WALVOIL SD6/2 TIE ROD KIT
5TIR108231 SD6 Assembly Kit	(1)	WALVOIL TIE ROD KIT. FOR WALVOIL SD6-SER

Product Questions & Answers (1)

Question by: Bobby B on Dec 30, 2025, 1:21 PM

what all comes in this tie rod kit, and is it meant specifically for the SD6/1 valve or will it work across other SD6 setups?

Answer by: Customer Support on Dec 31, 2025, 7:40 PM

The kit is matched to the SD6/1 configuration within the Walvoil SD6 series. That series supports anywhere from 1 to 12 sections, so tie rod kits are section-count specific. Using hardware sized for a different section count risks improper clamping and seal integrity across the stack, so sticking with the SD6/1 kit for a single-section assembly is the right call.
