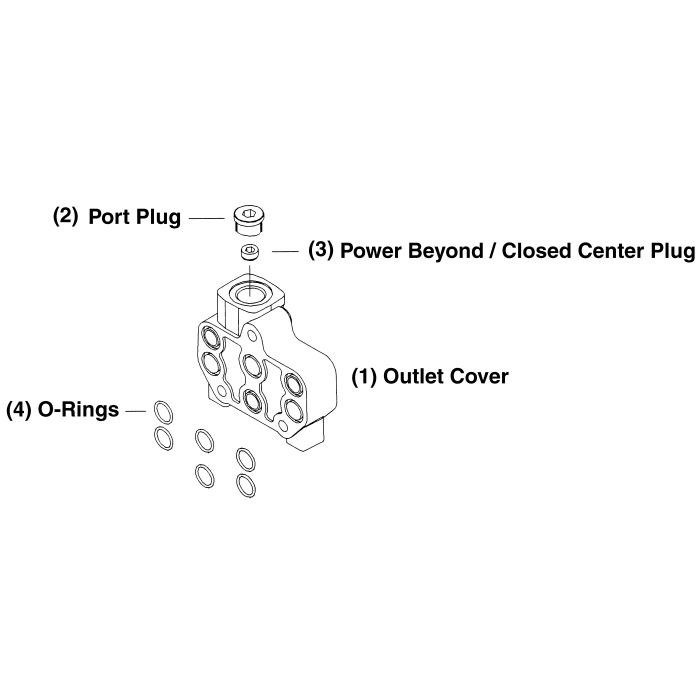

SD6 Series Walvoil SD6 RE/RK POWER BEYOND/CLOSED CE

Description & Features

Designed for open and closed center hydraulic systems, the SD6 Series Walvoil SD6 RE/RK Power Beyond/Closed CE is a sectional directional control valve configured with a power beyond/closed outlet cover. The SD6 Series supports one to twelve sections and is rated for a maximum operating pressure of 4,600 PSI in parallel or tandem circuit configurations, or 3,050 PSI in series circuit use.

Each work section includes a load check valve, and a main pressure relief valve is standard. Compatible control options span manual, pneumatic, hydraulic, electro-hydraulic, solenoid, and cable actuation, with interchangeable spools for configuration flexibility. The fluid temperature range runs from -4°F to 176°F with standard Buna-N seals, and the valve accommodates a flow rating of 12 GPM. Recommended filtration is ISO 4406 19/16.

Catalog Number: C1HT30

SKU: 4TAP413210

Supplier Part Number (MPN): 4TAP413210

Alternate Part Numbers: C1HT30

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (3)	Supplier Part Number 4TAP413210	Alternate Part Numbers Alternate Part Number C1HT30	Product Weight 0.01 lbs

Similar Products

Model Number	Key	Product Description	Price	Action
4TAP413210 SD6 Series Outlet Cover	(3)	WALVOIL SD6 RE/RK POWER BEYOND/CLOSED CE.

Product Questions & Answers (3)

Question by: Dustin C on Dec 27, 2025, 12:15 PM

got a compact machine that doesn’t have a lot of room. how big of a valve stack can the SD6 series be built into

Answer by: Customer Support on Dec 28, 2025, 9:53 PM

For sizing, the SD6 is a sectional valve setup that can be configured from 1 up to 12 sections. It is built to stay fairly simple and compact while still being heavy duty, and each work section includes its own load check valve.

Question by: Judy S on Dec 17, 2025, 10:43 AM

got a walvoil SD6 stack valve, is this the outlet cover for the RE/RK power beyond closed center setup?

Answer by: Customer Support on Dec 19, 2025, 8:58 AM

For the SD6 Series, this part is the outlet cover option identified as “RE/RK POWER BEYOND/CLOSED CE,” so it matches that specific SD6 outlet cover configuration.

Question by: Merle C on Feb 11, 2026, 1:54 PM

what's the max pressure this valve handles runnin a parallel circuit setup?

Answer by: Customer Support on Feb 13, 2026, 7:59 AM

Running parallel or tandem, the SD6 tops out at 4600 PSI. If you're on a series circuit though, that number drops to 3050 PSI. Worth knowing before you spec it in, since the circuit type makes a real difference on the pressure ceiling.
