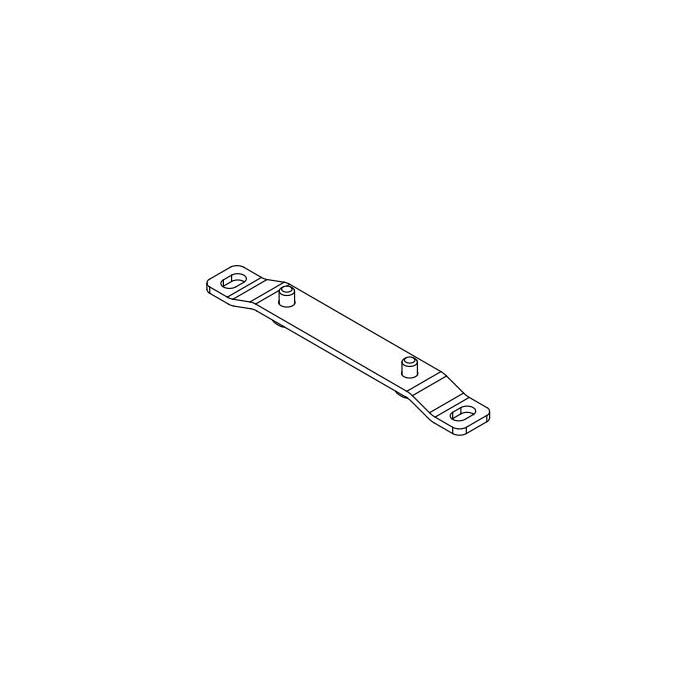

Sectional/Monoblock Directional Valve WALVOIL TIE ROD KIT FOR A 2-SECTION SD8

Description & Features

Designed for robustness and versatility, the Walvoil SD8 Series tie rod kit is crafted for 2-section use in hydraulic systems. It offers simple, compact construction yet ensures dependable performance in harsh environments.

This kit supports open and closed center hydraulic systems and features a main pressure relief valve and load check valve on each work section, ensuring efficient operation. Fluid compatibility extends from -4deg;F to 176deg;F with standard Buna-N seals, and it handles fluid viscosities from 80 to 400 SSU.

The WALVOIL TIE ROD KIT FOR A 2-SECTION SD8 boasts a maximum operating pressure of 4600 PSI and handles a flow rate up to 21 GPM. Internal leakage is minimized at 0.18 insup3;/min at 1450 PSI differential pressure, maintaining system integrity.

For enhanced operational flexibility, this directional valve kit is available with various control methods including manual, pneumatic, hydraulic, electro-hydraulic, solenoid, or cable controls. Optional power beyond port further expands its application range.

Maximum Back Pressure: 360 PSI on outlet port T.

Recommended Filtration: ISO 4406 19/16.

Ambient Temperature Range: -40deg;F to 140deg;F.

Note: Performance tested with mineral oil at 215 SSU viscosity, 104deg;F.

Supplier Part Number: 5TIR108169

MPN: C1HU18

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (1)	Supplier Part Number 5TIR108169	Alternate Part Numbers Alternate Part Number C1HU18	Product Weight 0.66 lbs

Similar Products

Model Number	Key	Product Description

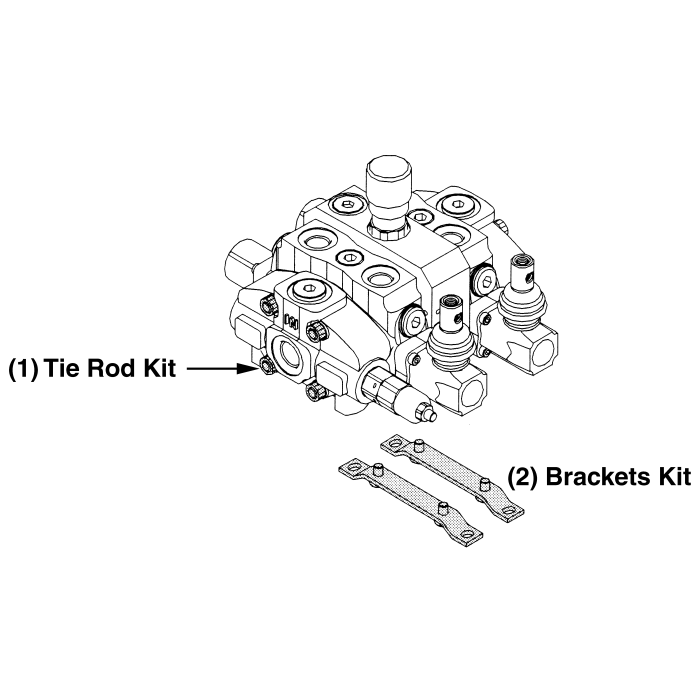

5TIR108169 SD8 Series Valve Assembly Kit	(1)	WALVOIL TIE ROD KIT FOR A 2-SECTION SD8
5TIR108210 SD8 Series Valve Assembly Kit	(1)	WALVOIL SD8/3 TIE ROD KIT
5TIR108251 SD8 Series Valve Assembly Kit	(1)	WALVOIL TIE ROD KIT. FOR WALVOIL SD8-SER
5STA125190 SD8 Series Valve Assembly Kit	(2)	WALVOIL SD8/SDS150 BRACKET KIT
5TIR108128 SD8 Series Valve Assembly Kit	(1)	WALVOIL SD8/1 TIE ROD KIT
5TIR108292 SD8 Series Valve Assembly Kit	(1)	Tie rod kit for a 5-section valve assembly

Product Questions & Answers (5)

Question by: Dwight R on Nov 30, 2025, 5:53 PM

What size valve does this tie rod kit fit? I want to make sure I'm ordering the right one.

Answer by: Customer Support on Dec 2, 2025, 11:45 AM

This tie rod kit is specifically made for a 2-section Walvoil SD8 series valve.

Question by: Roy T on Nov 8, 2025, 10:19 AM

gonna be running this on a 2-section SD8 valve setup -- just want to make sure this tie rod kit is actually meant for that configuration and not some other section count

Answer by: Customer Support on Nov 9, 2025, 2:32 PM

Built specifically for the 2-section SD8 configuration, so it matches that setup directly. The SD8 series supports anywhere from 1 to 12 sections, and each section count requires its own corresponding tie rod kit. Using the wrong kit on a different section count would affect clamping and alignment across the valve stack, so getting the section-specific version matters.

Question by: Denise W on Apr 9, 2025, 3:45 PM

i’ve got a Walvoil SD8 setup with two sections, is this tie rod kit the right one for that?

Answer by: Customer Support on Apr 10, 2025, 9:44 PM

It’s a tie rod kit specifically called out for a 2-section Walvoil SD8 series valve, with catalog number C1HU18 and supplier part number 5TIR108169.

Question by: Hank P on Jun 3, 2025, 6:09 PM

got an SD8 valve stack with 2 sections, is this tie rod kit the right one to put it back together?

Answer by: Customer Support on Jun 5, 2025, 10:11 AM

For a 2-section Walvoil SD8 setup, this kit is specifically called out as a tie rod kit for 2-section use, so it matches that configuration.

Question by: Jimmy R on Jun 9, 2025, 5:08 PM

Will this kit work with any SD8 valve, or does it have to be a 2-section?

Answer by: Customer Support on Jun 11, 2025, 6:45 AM

This tie rod kit is specifically designed for a 2-section Walvoil SD8 directional control valve.
