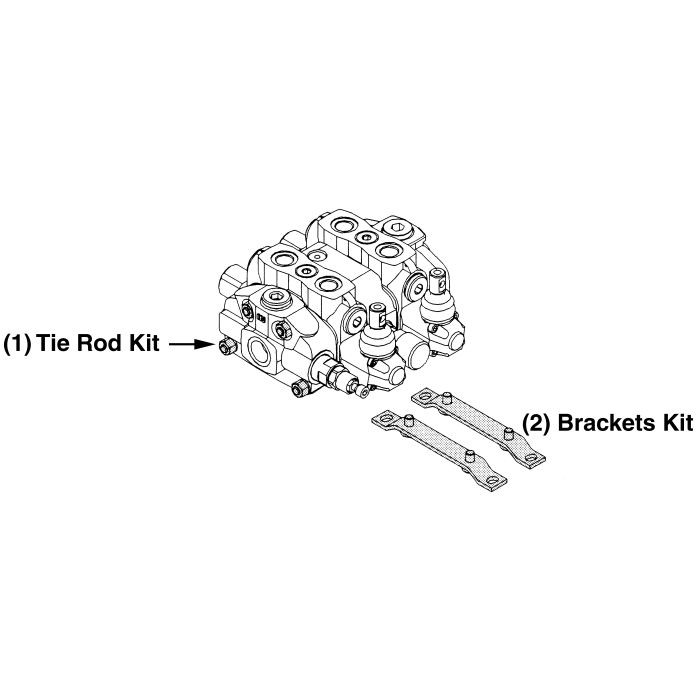

SDS150 Series Walvoil SDS150/1 Tie Rod Kit

The SDS150 Series Walvoil SDS150/1 Tie Rod Kit offers a robust solution for hydraulic systems, suitable for various industry applications. This compact and heavy-duty designed sectional valve can be used in both open and closed center hydraulic systems.

Featuring a main pressure relief valve and a load check valve on every work section, it ensures reliable operational performance. The valve is available in configurations from 1 to 12 sections, enhancing its versatility for different setups. Flow rating is measured at 24 GPM, making it efficient for high-demand tasks.

This model can handle a broad range of fluid temperatures from -4deg;F to 176deg;F with standard Buna-N seals, and an ambient temperature range of -40deg;F to 140deg;F. The SDS150 Series valve also supports fluid viscosities from 80 to 400 SSU operating, with a minimum requirement of 70 SSU and a maximum tolerance up to 1950 SSU.

It is designed to withstand maximum operating pressures of 4600 PSI for parallel or tandem circuits, and 3050 PSI for series circuits. The valve also features an optional power beyond port and a variety of control options, including manual, pneumatic, hydraulic, electro-hydraulic, or cable.

MPN: C1HU38

Supplier Part Number: 5TIR110149
