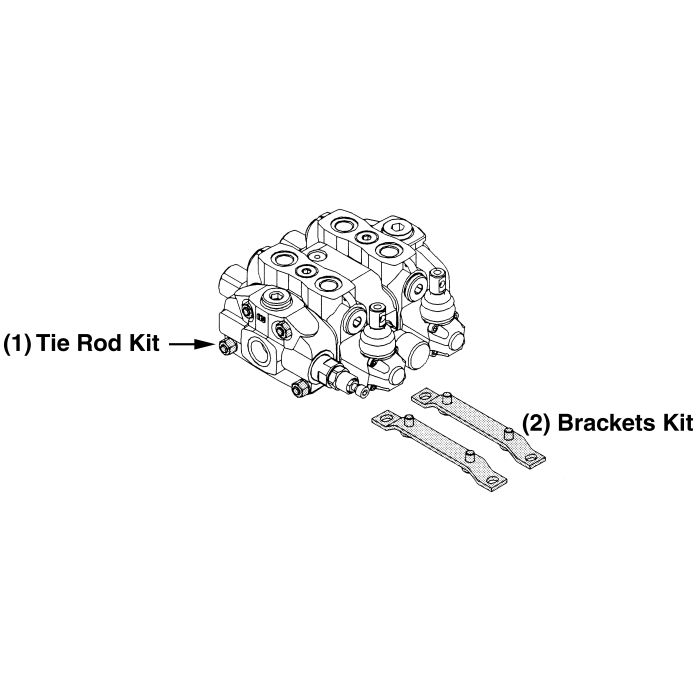

SDS150 Series Walvoil SDS150/2 Tie Rod Kit

Engineered for both open and closed center hydraulic systems, the Walvoil SDS150 Series sectional valve offers unparalleled versatility. The simple, compact design supports configurations from 1 to 12 sections, meeting a variety of system requirements.

Key functionalities include a main pressure relief valve, load check valve on every work section, and optional power beyond port. The valve is compatible with parallel, tandem, or series circuits, each offering distinct operational advantages.

The SDS150 Series Walvoil SDS150/2 Tie Rod Kit accommodates a flow rating of 24 GPM and can operate under fluid temperatures ranging from -4deg;F to 176deg;F with standard Buna-N seals. It delivers maximum efficiency with internal leakage limited to 0.18 insup3;/min at 1450 PSI differential pressure.

This heavy-duty kit is designed to handle maximum back pressures of 360 PSI on the outlet port T and maximum operating pressures of 4600 PSI for parallel or tandem circuits, and 3050 PSI for series circuits. The performance data is calibrated with mineral oil of 215 SSU viscosity at 104deg;F.

Additional configurations include manual, pneumatic, hydraulic, electro-hydraulic, or cable controls, providing flexibility in application. The recommended filtration is ISO 4406 19/16, ensuring optimal performance.

Supplier Part Number: 5TIR110194

MPN: C1HU41
