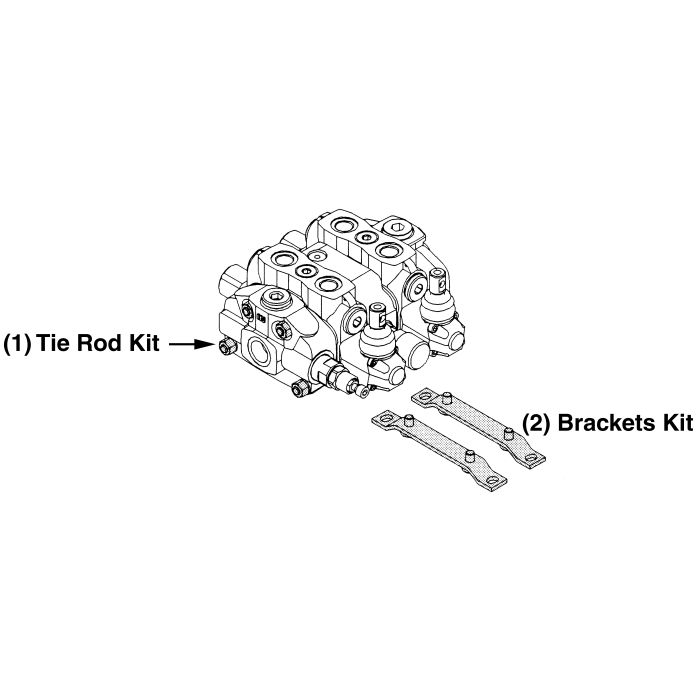

SDS150 Series Walvoil Tie Rod Kit For A Walvoil SDS150

The SDS150 Series Walvoil Tie Rod Kit for a Walvoil SDS150 offers a robust solution designed for sectional valves ranging from 1 to 12 sections. This tie rod kit features a main pressure relief valve and a load check valve on every work section ensuring reliable performance.

Operating efficiently with open and closed center hydraulic systems it accommodates a flow rating of 24 GPM and supports a wide fluid temperature range of -4deg;F to 176deg;F with standard Buna-N seals. The SDS150 Series operates with a maximum back pressure of 360 PSI on outlet port T and a maximum operating pressure of 4600 PSI for parallel or tandem circuits.

The fluid viscosity ranges from 80 to 400 SSU with an internal leakage rate of 0.18 insup3;/min at 1450 PSI differential pressure. The valve can be controlled manually pneumatically hydraulically electro-hydraulically or via cable controls offering flexible application options.

Additional features include optional power beyond port and interchangeable spools making this Walvoil Fluid Power Corp. product highly versatile and suitable for various industrial applications.

Supplier Part Number: 5TIR110374
