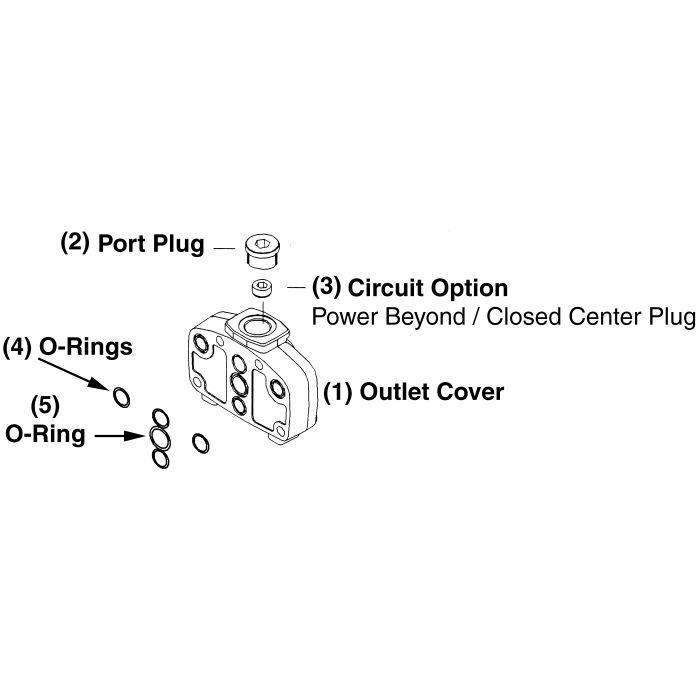

SDS150 Series Walvoil FS-SDS150/RC-SAE OUTLET Cover

Description & Features

The SDS150 Series Walvoil FS-SDS150/RC-SAE Outlet Cover is designed for heavy-duty performance in both open and closed center hydraulic systems. This sectional valve supports a flow rating of 24 GPM and operates efficiently within an ambient temperature range of -40deg;F to 140deg;F.

Key features include a main pressure relief valve and a load check valve on every work section. The unit is available with parallel, tandem, or series circuits, and can also be equipped with an optional power beyond port. Users can choose from manual, pneumatic, hydraulic, electro-hydraulic, or cable controls to meet their specific application needs.

With its compact and robust design, the Walvoil SDS150 series ensures reliable operation under fluid temperature ranges of -4deg;F to 176deg;F and a viscosity range from 80 to 400 SSU. Internal leakage is minimal at 0.18 insup3;/min under a 1450 PSI differential pressure. The product also maintains a maximum back pressure of 360 PSI on the outlet port T and a maximum operating pressure of 4600 PSI for parallel or tandem circuits, and 3050 PSI for series circuits.

Supplier Part Number: 614366002

Catalog Number: C1HV22

Specifications

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (1)	Supplier Part Number 614366002	Alternate Part Numbers Alternate Part Number C1HV22	Product Weight 4.12 lbs

Similar Products

Model Number	Key	Product Description	Price	Action
614366002 SDS150 Series Outlet Cover	(1)	WALVOIL FS-SDS150/RC-SAE OUTLET COVER

Product Questions & Answers (3)

Question by: Hubert T on Jun 4, 2025, 1:32 PM

i’m swapping parts on an SDS150 valve, is this the right outlet cover for the RC-SAE outlet setup?

Answer by: Customer Support on Jun 5, 2025, 2:49 PM

For an SDS150 Series sectional valve that uses the FS-SDS150/RC-SAE outlet configuration, this part is the matching outlet cover. It is identified as Walvoil SDS150 Series FS-SDS150/RC-SAE OUTLET Cover, supplier part number 614366002 (SKU 614366002).

Question by: Brett J on Jun 9, 2025, 5:41 PM

What kinda flow rate can I expect with this outlet cover on my Walvoil SDS150 setup?

Answer by: Customer Support on Jun 11, 2025, 6:16 AM

This outlet cover is designed for a flow rate of up to 24 gallons per minute (GPM) in your hydraulic system.

Question by: Danny D on Oct 24, 2025, 4:30 PM

what's the max pressure this thing'll handle runnin a parallel circuit setup?

Answer by: Customer Support on Oct 26, 2025, 8:22 AM

For parallel or tandem circuits, the maximum operating pressure comes in at 4600 PSI. If you're running a series circuit instead, that number drops to 3050 PSI. Worth knowing before you spec it in, since the circuit type makes a real difference in what you can push through it.
