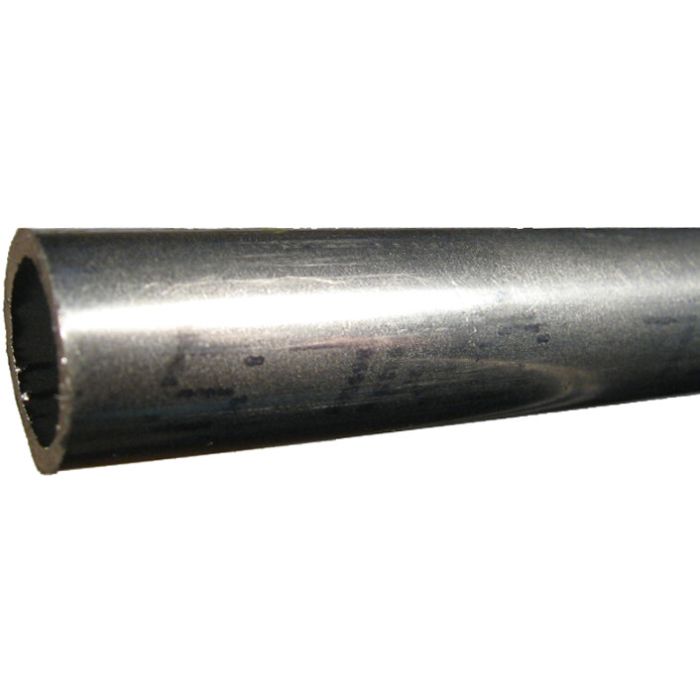

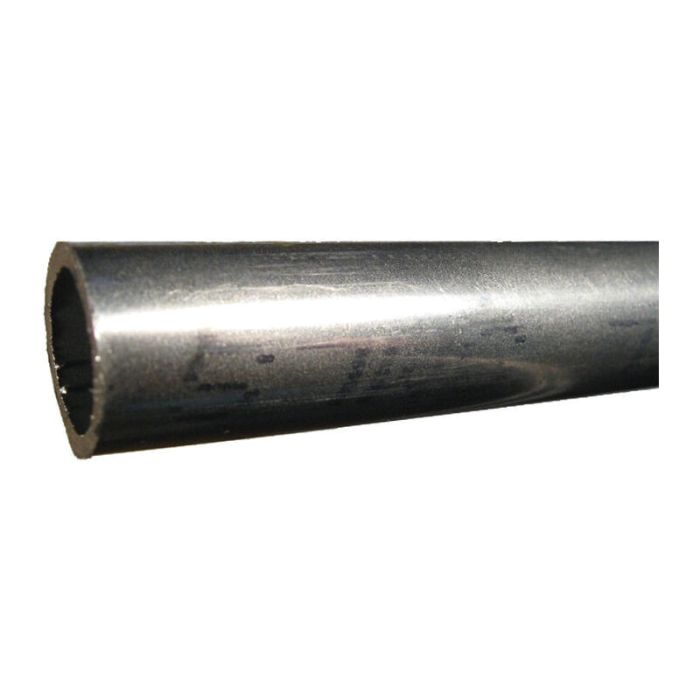

Seamless 316 Stainless Steel Tubing, 0.19 Inch OD, 0.04 Inch Thick, 0.12 Inch ID

Description & Features

Constructed from bright annealed 316 stainless steel, this seamless tubing offers exceptional corrosion resistance and durability, making it ideal for a wide range of industrial applications. With an outer diameter of 0.19 inches and a wall thickness of 0.04 inches, it provides optimal balance between strength and flexibility for demanding environments.

Rated to withstand a maximum working pressure of 4667 PSI, this tubing ensures reliable performance under high-pressure conditions. Adhering to ASTM A269 standards, it maintains high-quality assurance for industrial use, particularly in systems requiring precise and consistent fluid delivery.

SKU: 3/16.035-SS

Supplier Part Number (MPN): 3/16.035-SS-BR

Alternate Part Numbers: C1BK43, MI-08754296, MINO-01965X80000

Specifications

Burst Pressure 28000	Brand Marmon/Keystone	Brand Marmon - Keystone	Pack Size 12.00	UOM FT	I.D. 0.1175 in	Inside Area 0.01	Maximum Working Pressure 4667	O.D. 0.1875 in	Rated Flow 0.40	Rated Flow 0.4	Safety Factor 6:1	Supplier Part Number 3/16.035-SS-BR	Wall Thickness 0.04	Alternate Part Numbers Alternate Part Number 3/16.035-SS-BR, Alternate Part Number C1BK43, Alternate Part Number MI-08754296, Alternate Part Number MINO-01965X80000	Product Weight 0.46 lbs

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Inside Area	Rated Flow	Maximum Working Pressure	Burst Pressure	Safety Factor
1/4.035-SS Seamless 316 Stainless Tubing	0.25 in	0.035	0.18 in	0.0254	0.9	3500	21000	6:1
1/2.049-SS Seamless 316 Stainless Tubing	0.5 in	0.049	0.402 in	0.1269	6	2450	14700	6:1
1/4.049-SS Seamless 316 Stainless Tubing	0.25 in	0.049	0.152 in	0.0181	0.7	4900	29400	6:1
3/4.065-SS Seamless 316 Stainless Tubing	0.75 in	0.065	0.62 in	0.3018	12	2167	13000	6:1
3/8.049-SS Seamless 316 Stainless Tubing	0.375 in	0.049	0.277 in	0.0602	2.8	3267	19600	6:1
5/8.065-SS Seamless 316 Stainless Tubing	0.5625 in	0.065	0.4325 in	0.1923	9	2600	15600	6:1
1-1/4.120-SS Seamless 316 Stainless Tubing	1.25 in	0.12	1.01 in	0.8008	36.7	2400	14400	6:1
1.109-SS Seamless 316 Stainless Tubing	1 in	0.109	0.788 in	0.4801	22	2725	16350	6:1
1/2.065-SS Seamless 316 Stainless Tubing	0.5 in	0.065	0.37 in	0.1075	4.9	3250	19500	6:1
3/4.095-SS Seamless 316 Stainless Tubing	0.75 in	0.095	0.56 in	0.2462	11.1	3167	19000	6:1
3/8.035-SS Seamless 316 Stainless Tubing	0.375 in	0.035	0.305 in	0.0731	3.4	2333	14000	6:1

Product Questions & Answers (2)

Question by: Pete W on Apr 7, 2025, 2:11 PM

working pressure on this tubing is listed at 4667 psi -- is that with a safety factor already built in or is that the actual burst number?

Answer by: Customer Support on Apr 9, 2025, 6:00 AM

The 4667 psi figure is the maximum working pressure, not the burst pressure. Burst pressure on this tubing is rated at 28,000 psi. The working pressure already reflects a 6:1 safety factor, which is the standard applied for situations where considerable hydraulic shock and mechanical strain are present. If your application runs into more severe shock conditions, a higher 8:1 safety factor would push the usable working pressure lower than what is listed.

Question by: Bobby H on Aug 8, 2025, 7:54 AM

i’ve got a tight spot to run line, what size is this tubing actually and how thick is the wall

Answer by: Customer Support on Aug 10, 2025, 6:14 AM

For sizing, it is 0.1875 inch OD with a 0.035 inch wall, which puts the ID at about 0.1175 inch.
