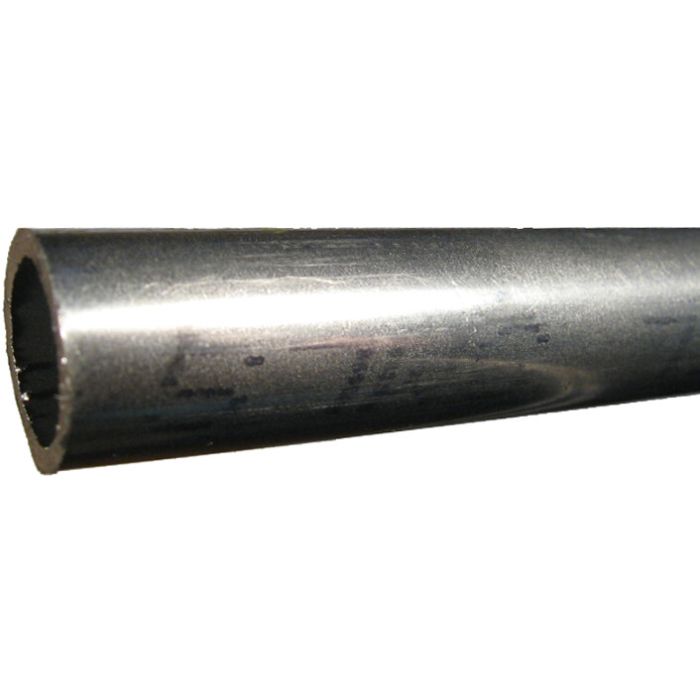

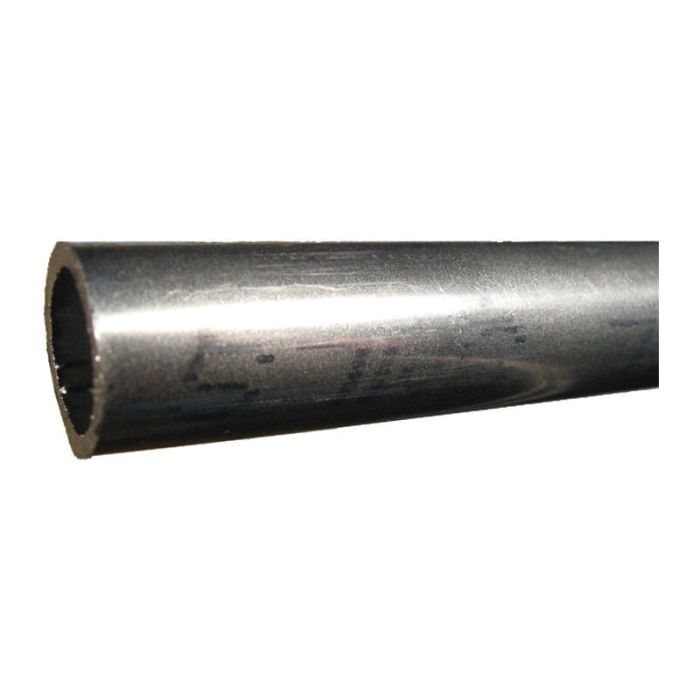

Seamless 316 Stainless Steel Tubing, 0.56 Inch OD, 0.07 Inch Thick, 0.43 Inch ID

Description & Features

Engineered for demanding industrial specifications, this ASTM A269 B90 seamless tubing offers a reliable solution with a burst pressure of 15600 psi. Constructed from bright annealed 316 stainless steel, it boasts a tensile strength of 75,000 psi and is designed to withstand a maximum working pressure of 2600 psi. With an outside diameter of 0.5625 inches, a wall thickness of 0.065 inches, and an inside diameter of 0.4325 inches, it is ideal for various high-pressure applications.

The tubing's inside area of 0.1923 provides efficient fluid flow, supporting a rated flow of 9 GPM. For enhanced durability, the material is finished with corrosion-resistant properties, ensuring longevity in harsh environments. When precise measurements and high pressure ratings are essential, this seamless tubing is the go-to choice for reliable performance.

Supplier Part Number: 5/8.065-SS

Specifications

Burst Pressure 15600	Brand Marmon/Keystone	Brand Marmon - Keystone	Pack Size 12.00	UOM FT	I.D. 0.4325 in	Inside Area 0.19	Maximum Working Pressure 2600	O.D. 0.5625 in	Rated Flow 9	Rated Flow 9	Safety Factor 6:1	Supplier Part Number 5/8.065-SS	Wall Thickness 0.07	Alternate Part Numbers Alternate Part Number C1EX71, Alternate Part Number MI-08733662, Alternate Part Number MINO-01965X96524	Product Weight 0.61 lbs

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Inside Area	Rated Flow	Maximum Working Pressure	Burst Pressure	Safety Factor
1/4.035-SS Seamless 316 Stainless Tubing	0.25 in	0.035	0.18 in	0.0254	0.9	3500	21000	6:1
1/2.049-SS Seamless 316 Stainless Tubing	0.5 in	0.049	0.402 in	0.1269	6	2450	14700	6:1
1/4.049-SS Seamless 316 Stainless Tubing	0.25 in	0.049	0.152 in	0.0181	0.7	4900	29400	6:1
3/4.065-SS Seamless 316 Stainless Tubing	0.75 in	0.065	0.62 in	0.3018	12	2167	13000	6:1
3/8.049-SS Seamless 316 Stainless Tubing	0.375 in	0.049	0.277 in	0.0602	2.8	3267	19600	6:1
5/8.065-SS Seamless 316 Stainless Tubing	0.5625 in	0.065	0.4325 in	0.1923	9	2600	15600	6:1
1-1/4.120-SS Seamless 316 Stainless Tubing	1.25 in	0.12	1.01 in	0.8008	36.7	2400	14400	6:1
1.109-SS Seamless 316 Stainless Tubing	1 in	0.109	0.788 in	0.4801	22	2725	16350	6:1
1/2.065-SS Seamless 316 Stainless Tubing	0.5 in	0.065	0.37 in	0.1075	4.9	3250	19500	6:1
3/16.035-SS Seamless 316 Stainless Tubing	0.1875 in	0.035	0.1175 in	0.0108	0.4	4667	28000	6:1
3/4.095-SS Seamless 316 Stainless Tubing	0.75 in	0.095	0.56 in	0.2462	11.1	3167	19000	6:1
3/8.035-SS Seamless 316 Stainless Tubing	0.375 in	0.035	0.305 in	0.0731	3.4	2333	14000	6:1

Product Questions & Answers (3)

Question by: Kirk G on Jan 1, 2026, 10:20 AM

What's the highest pressure this tubing can handle without bursting?

Answer by: Customer Support on Jan 2, 2026, 1:09 PM

Based on the Barlow formula, the burst pressure for this tubing is 15,600 PSI, but keep in mind the maximum working pressure is 2600 PSI, with a 6:1 safety factor. Always refer to safety information when selecting tubing.

Question by: Rod P on Sep 3, 2025, 7:32 PM

what's the working pressure on this tubing and is that with some kind of safety buffer already baked in?

Answer by: Customer Support on Sep 5, 2025, 6:25 AM

The rated working pressure is 2600 psi, and yes, that figure already reflects a 6:1 safety factor applied to the burst pressure of 15,600 psi. That safety margin is calculated for conditions where hydraulic shock and mechanical strain are considered considerable. If your application runs into more severe shock conditions, the manufacturer recommends stepping up to an 8:1 safety factor, which brings your working pressure down from that 2600 psi figure. On the flip side, if shock and strain are genuinely minimal in your setup, a 4:1 factor and higher working pressures can be carefully considered.

Question by: Pete M on Sep 15, 2025, 12:59 PM

trying to match up tubing i already got, what are the actual OD and ID on this one?

Answer by: Customer Support on Sep 16, 2025, 3:25 PM

For sizing, you are looking at a 0.5625 inch outside diameter with a 0.4325 inch inside diameter, using a 0.065 inch wall thickness.
