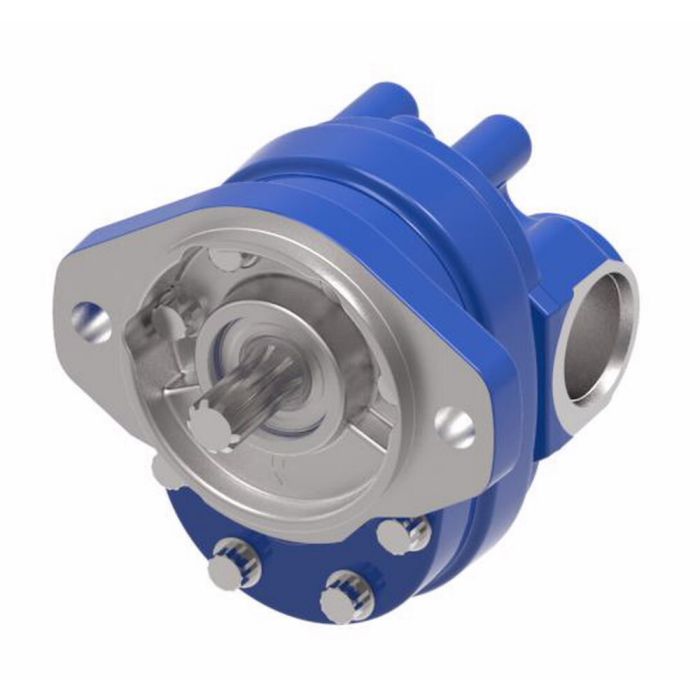

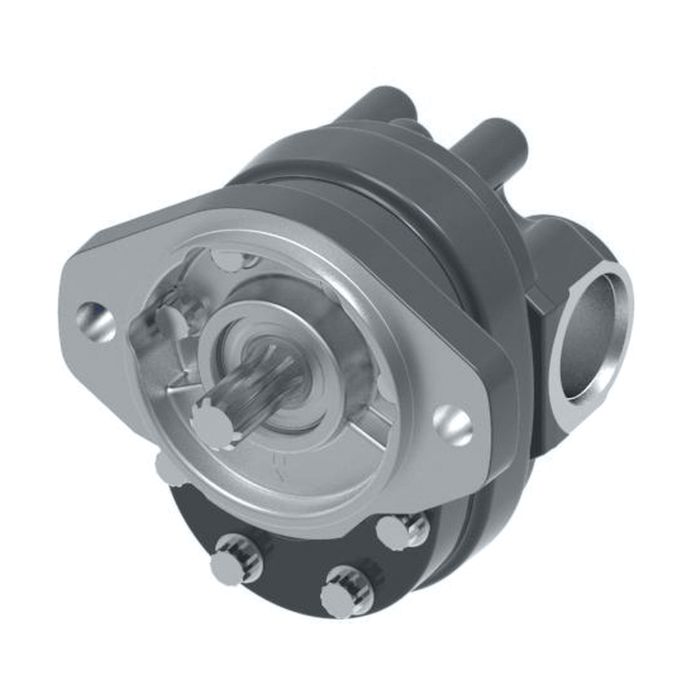

Series 26 Gear Pump, 1.20 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE-16 Side Inlet, SAE-10 Side Outlet Ports, CW Rotation.

Description & Features

Rated at 1.20 cu in/rev displacement and up to 3,200 RPM, this single-configuration gear pump is built for demanding mobile and industrial hydraulic circuits. The Eaton Char-Lynn Series 26 Gear Pump features a 2-bolt SAE A mounting flange, a 9-tooth SAE A splined shaft, and side-ported connections, SAE-16 inlet and SAE-10 outlet, making it a practical fit for tractors, lift trucks, fan drive systems, steering circuits, and similar work circuit applications.

Thirteen-tooth gears minimize flow ripple for reduced noise and vibration, while the bearing lubrication system draws from inlet oil rather than high-pressure oil to support volumetric efficiency. The pump ships configured for clockwise rotation, but direction can be reversed in the field by reconfiguring internal components, no additional parts required. Operating temperature range spans -20°F to 220°F continuous, with a maximum inlet vacuum of 6.0 in. Hg and a pressure rating of 2,850 PSI.

SKU: 26007-RZE

Supplier Part Number (MPN): 26007-RZE

Alternate Part Numbers: C1JB89

Specifications

Application Tractors & harvesters, Machine tools, Steering circuits, Compactors, Sweepers, Rotary & reel mowers, Lift trucks, Fan drive systems, Auxiliary work circuits	Configuration 32	Design Code A	Displacement 1.20	Displacement 1.2	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	Identification Standard	Minimum Working Temperature -20	Mount 2-Bolt SAE A	Mount 2-Bolt SAE A	Ports SAE-16 Side Inlet, SAE-10 Side Outlet	Ports SAE-16 Side Inlet, SAE-10 Side Outlet	Pressure Rating 2850	Rated Flow 9.30	Rated Flow 9.3	Rotation CW	Shaft 9 Tooth SAE A Splined	Shaft 9 Tooth SAE A Splined	Special Features None	Speed Rating 3200 RPM	Speed Rating 3200 RPM	Supplier Part Number 26007-RZE	Alternate Part Numbers Alternate Part Number C1JB89, Alternate Part Number MINO-00287X70110	Product Weight 6.00 lbs

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Features	Speed Rating	Pressure Rating
26002-RZC Series 26 Gear Pump	0.5	3.9	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26004-RZC Series 26 Gear Pump	0.66	5.1	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26006-RZC Series 26 Gear Pump	1.02	7.9	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	3000
26007-RZC Series 26 Gear Pump	1.2	9.3	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	3000
26003-RZG Series 26 Gear Pump	0.58	4.5	2-Bolt SAE A	5/8 St. Keyed	SAE-12 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26003-RZJ Series 26 Gear Pump	0.58	4.5	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-12 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26004-RAF Series 26 Gear Pump	0.66	5.1	2-Bolt SAE A	3/4 St.Keyed x 2 inches long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26004-RZE Series 26 Gear Pump	0.66	5.1	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26005-RZC Series 26 Gear Pump	0.84	6.5	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26005-RZE Series 26 Gear Pump	0.84	6.5	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26007-LZC Series 26 Gear Pump	1.2	9.3	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CCW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	3000
26007-RZE Series 26 Gear Pump	1.2	9.3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	2850
26011-RZC Series 26 Gear Pump	1.69	13.1	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3000 RPM	3000
26012-RZJ Series 26 Gear Pump	1.77	13.7	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-12 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3000 RPM	1950
26013-LZC Series 26 Gear Pump	1.87	14.5	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CCW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3000 RPM	3000
