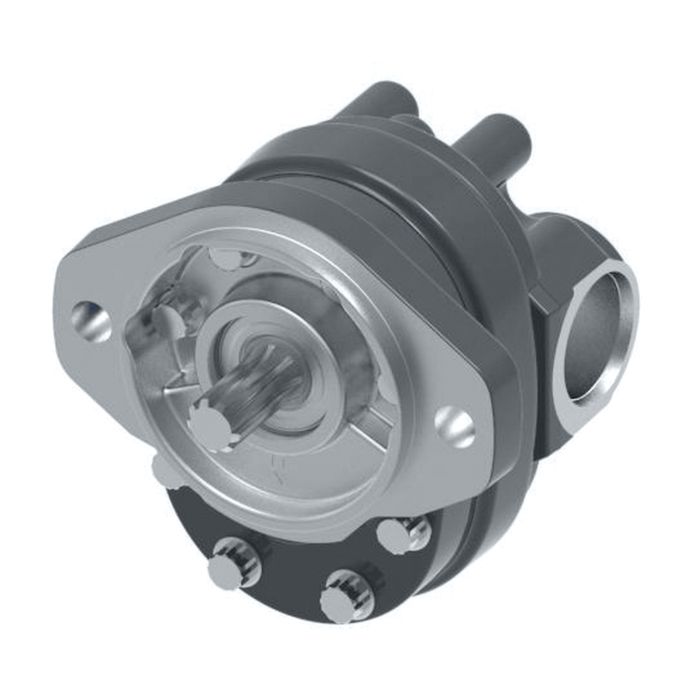

Series 26 Gear Pump, 1.69 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St.Keyed x 1-1/4 long Shaft, SAE-16 Side Inlet, SAE-10 Side Outlet Ports, CW Rotation.

Description & Features

The Danfoss / Eaton Series 26 Gear Pump provides a reliable solution for various industrial applications such as tractors harvesters machine tools and steering circuits. This gear pump features a 1.69 cu in/rev displacement and operates with a clockwise rotation. The 2-bolt SAE A mounting flange ensures secure installation.

This gear pump is engineered with 13-tooth gears that reduce flow ripple leading to lower noise and vibration levels. The bearing lubrication system utilizes inlet oil enhancing volumetric efficiency. A unique wear plate design allows for simple rotation changes.

It operates within a pressure rating of up to 3000 psi and a speed rating of up to 3000 RPM. Minimum working temperature is set at -20deg;F with a maximum continuous oil viscosity requirement of 45 SSU. The inlet and outlet ports are sized SAE-16 and SAE-10 respectively.

ECCN: EAR99

Supplier Part Number: 26011-RZC

Specifications

Application Tractors & harvesters, Machine tools, Steering circuits, Compactors, Sweepers, Rotary & reel mowers, Lift trucks, Fan drive systems, Auxiliary work circuits	Configuration 32	Displacement 1.69	Displacement 1.69	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	Identification Standard	Minimum Working Temperature -20	Mount 2-Bolt SAE A	Mount 2-Bolt SAE A	Ports SAE-16 Side Inlet, SAE-10 Side Outlet	Ports SAE-16 Side Inlet, SAE-10 Side Outlet	Pressure Rating 3000	Rated Flow 13.10	Rated Flow 13.1	Rotation CW	Shaft 3/4 St.Keyed x 1-1/4 long	Shaft 3/4 St.Keyed x 1-1/4 long	Special Features None	Speed Rating 3000 RPM	Speed Rating 3000 RPM	Supplier Part Number 26011-RZC	Alternate Part Numbers Alternate Part Number C1JY34, Alternate Part Number MINO-00287X70156	Product Weight 8.00 lbs

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Features	Speed Rating	Pressure Rating
26002-RZC Series 26 Gear Pump	0.5	3.9	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26004-RZC Series 26 Gear Pump	0.66	5.1	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26006-RZC Series 26 Gear Pump	1.02	7.9	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	3000
26007-RZC Series 26 Gear Pump	1.2	9.3	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	3000
26003-RZG Series 26 Gear Pump	0.58	4.5	2-Bolt SAE A	5/8 St. Keyed	SAE-12 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26003-RZJ Series 26 Gear Pump	0.58	4.5	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-12 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26004-RAF Series 26 Gear Pump	0.66	5.1	2-Bolt SAE A	3/4 St.Keyed x 2 inches long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26004-RZE Series 26 Gear Pump	0.66	5.1	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26005-RZC Series 26 Gear Pump	0.84	6.5	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26005-RZE Series 26 Gear Pump	0.84	6.5	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26007-LZC Series 26 Gear Pump	1.2	9.3	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CCW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	3000
26007-RZE Series 26 Gear Pump	1.2	9.3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	2850
26012-RZJ Series 26 Gear Pump	1.77	13.7	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-12 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3000 RPM	1950
26013-LZC Series 26 Gear Pump	1.87	14.5	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CCW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3000 RPM	3000
