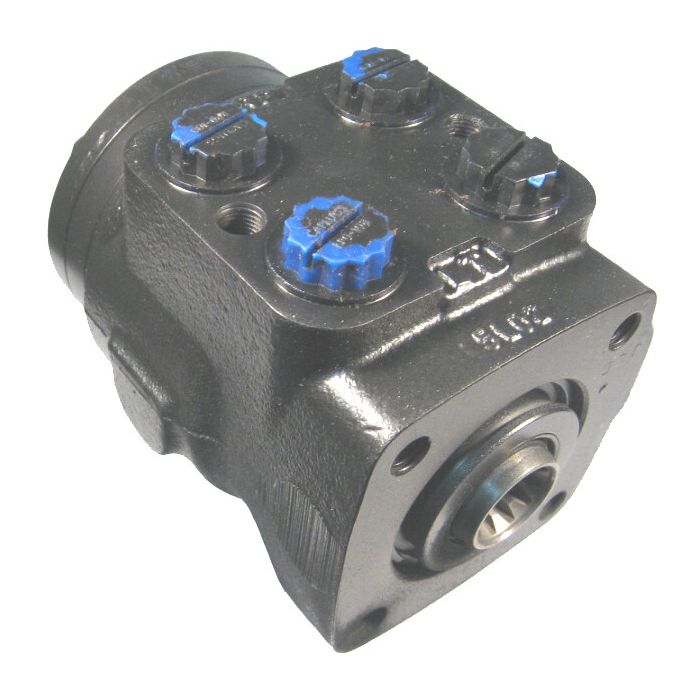

main product photo

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 9.70 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Ask A Question

Description & Features

The Series 3-6-12 Steering Control Unit Non-Load Reaction by Danfoss offers a displacement of 9.70 cu in/rev allowing for a versatile flow range of 4-8 GPM. This unit is designed with 3/4-16 St.Thd O-Ring Ports ensuring compatibility with various industrial and agricultural equipment.

With a maximum back pressure of 300 PSI and an inlet pressure rating of 172 this unit effectively handles demanding applications. Its integral valves and internal involute spline with 12 Tooth 16/32 Dp 30 Degree Pa provide reliable performance under various conditions.

Recommended for use in forestry construction turf care and industrial machinery the 211-1010 features standard input torque and a non-reaction load circuit. The recommended filtration level is ISO 18/13 Cleanliness suitable for most petroleum-based fluids and ATF Type A.

Maximum system operating temperature for this unit is 200deg;F with a maximum differential of 50deg;F between the steering unit and system temperature.

MPN: C1BC15

Supplier Part Number: 211-1010-002

Specifications

Additional Ports
None
Application
Agricultural Equipment, Forestry Equipment, Construction Equipment, Turf Care Equipment, Industrial Equipment
Design Code
2
Displacement
9.70
Displacement
9.7
Brand
Danfoss (Net)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
Flow Amplification
None
Flow Range
4-8
Flow Rate1
23 LPM
Identification
Eaton Product Number On Nameplate
Inlet Load Sense Valve Sett
0 b
Inlet Pressure Rating
172
Input Torque
Standard
Integral Valves
Yes
Load Circuit
Non Reaction
Maximum Back Pressure
21
Mechanical Interface
Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree Pa
Mounting Threads
2X .375-24 UNF-2B Port Face 4X .375-16 UNC-2B Mounting Face
Ports
3/4-16 St.Thd O-Ring
Ports
3/4-16 St.Thd O-Ring
Recommended Filtration Level
ISO 18/13 Cleanliness
Return Pressure Rating
10
Special Features
None
Supplier Part Number
211-1010-002
Valve Options
Manual Steering Check Valve
Product Weight
12.00 lbs
Alternate Part Numbers
Alternate Part Number 211-1010-002, Alternate Part Number C1BC15, Alternate Part Number MINO-00162X04652

Related Documents

Similar Products

Model Number Displacement Flow Range Ports Features Price Action
Series 3-6-12 Steering Control Unit, Non-Load Reaction, 4.50 cu in/rev, 2-4 GPM Flow Range, 9/16-18 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1001 Series 3-6-12 Steering Unit

4.5

2-4

9/16-18 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 4.50 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1007 Series 3-6-12 Steering Unit

4.5

4-8

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 5.90 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1008 Series 3-6-12 Steering Unit

5.9

4-8

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 7.30 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1009 Series 3-6-12 Steering Unit

7.3

4-8

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 11.30 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1011 Series 3-6-12 Steering Unit

11.3

4-8

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 14.10 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1012 Series 3-6-12 Steering Unit

14.1

4-8

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 17.90 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1158 Series 3-6-12 Steering Unit

17.9

4-8

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 23.80 cu in/rev, 8-16 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1177 Series 3-6-12 Steering Unit

23.8

8-16

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 29.70 cu in/rev, 8-16 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1178 Series 3-6-12 Steering Unit

29.7

8-16

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 45.10 cu in/rev, 8-16 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1179 Series 3-6-12 Steering Unit

45.1

8-16

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Product Questions & Answers (1)

Question by: Roy G on Apr 14, 2025, 8:35 AM
what fluids can this steering unit run on, and is ATF okay to use in it?
Answer by: Customer Support on Apr 15, 2025, 7:09 PM
Most petroleum-based hydraulic fluids work fine with this unit, and ATF Type A is also listed as compatible. Just keep your system clean, the recommended filtration level is ISO 18/13, so as long as you're maintaining that cleanliness standard you should be in good shape running either fluid type.
