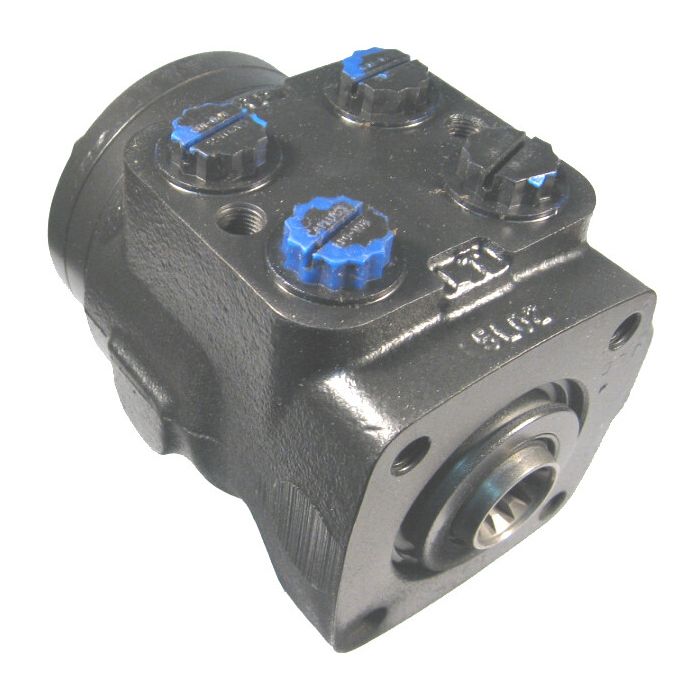

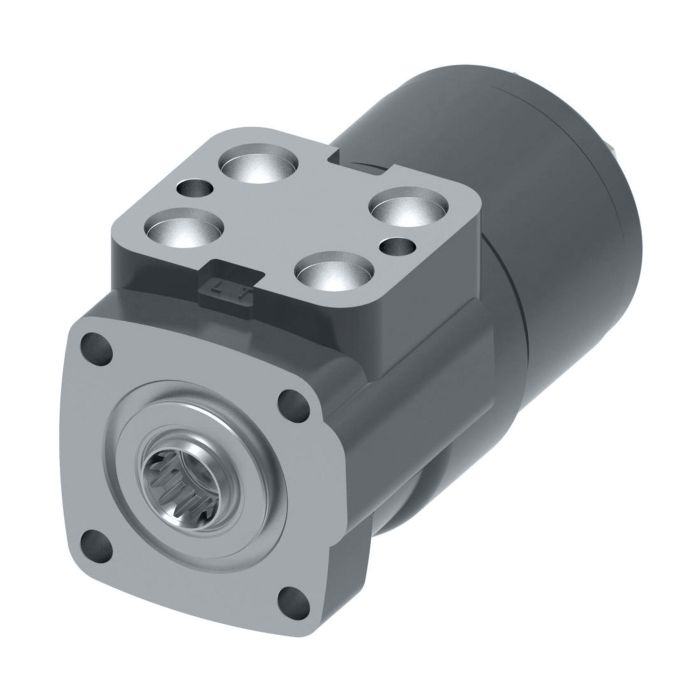

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 11.30 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Description & Features

The Series 3-6-12 Steering Control Unit Non-Load Reaction is engineered for versatility in agricultural forestry construction turf care and industrial equipment. With a displacement of 11.30 cu in/rev and a flow range of 4-8 GPM it is equipped with 3/4-16 St.Thd O-Ring ports.

Designed by Danfoss this unit features non-reaction load circuits and is capable of varying maximum pressure ratings. The mechanical interface includes an internal involute spline with 12 teeth. It integrates standard inlet load sense valves and supports maximum back pressure up to 300 PSI. Recommended filtration is at the ISO 18/13 cleanliness level.

Operating temperatures should not exceed 200deg;F and the differential between the steering unit and system temperature should be kept within 50deg;F. It supports most petroleum-based fluids and ATF Type A accommodating a wide range of industry-specific needs.

MPN: 211-1011-002

Specifications

Brand Danfoss	Color Black	Connection Type UNF-2B, SAE O-ring	Design Code 2	Input Torque Standard	Integral Valve With Integral Valves	Load Circuit Non-Reaction	Mechanical Interface Internal Involute Spline, 12-Tooth, 16/32 Diametral Pitch, 30 deg Pressure Angle	Mounting Thread (4) 3/8-16 UNC-2B Mounting Face, (2) 3/8-24 UNF-2B Port Face	Mounting Type Threaded	Ports 3/4-16 Standard Thread O-ring	Recommended Filtration Level ISO 18/13 Cleanliness	Return Pressure Rating 10	Segment Code B	Series 3/6/12 Series	Valave Options Manual Steering Check Valve

Similar Products

Model Number	Displacement	Flow Range	Ports	Features
211-1001 Series 3-6-12 Steering Unit	4.5	2-4	9/16-18 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1007 Series 3-6-12 Steering Unit	4.5	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1008 Series 3-6-12 Steering Unit	5.9	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1009 Series 3-6-12 Steering Unit	7.3	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1010 Series 3-6-12 Steering Unit	9.7	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1012 Series 3-6-12 Steering Unit	14.1	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1158 Series 3-6-12 Steering Unit	17.9	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1177 Series 3-6-12 Steering Unit	23.8	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1178 Series 3-6-12 Steering Unit	29.7	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1179 Series 3-6-12 Steering Unit	45.1	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
