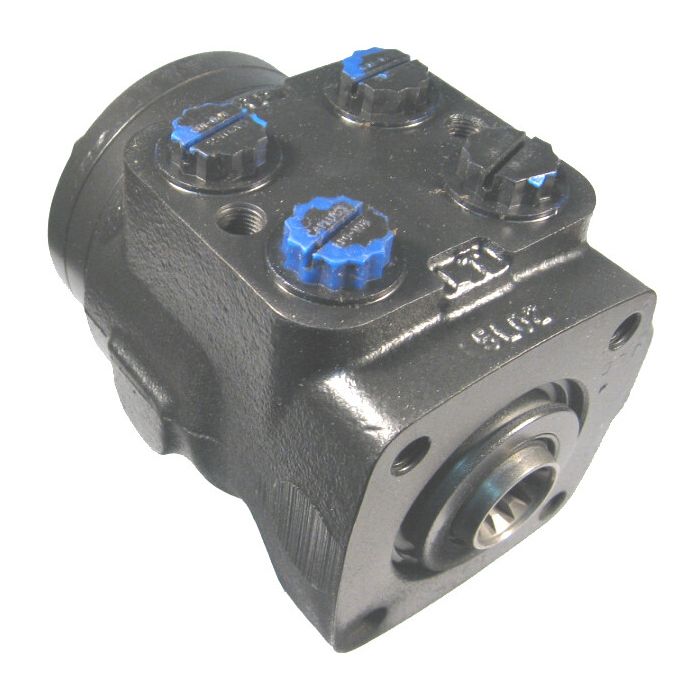

main product photo

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 14.10 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Ask A Question

Description & Features

The Series 3-6-12 Steering Control Unit is built for high-performance applications across various sectors. With a displacement of 14.10 cubic inches per revolution it supports a flow range of 4-8 GPM making it suitable for use in agricultural forestry construction turf care and industrial equipment.

It features 3/4-16 straight thread O-ring ports for optimal connection integrity. The unit is designed with a non-load reaction mechanism ensuring precise steering control under varying conditions. This unit can handle a maximum back pressure of 300 PSI while the recommended filtration level adheres to ISO 18/13 cleanliness standards.

Designed by Danfoss Hydraulics this control unit incorporates input torque specifications standard for powered applications and has a maximum of 100 lb-ft for non-powered applications. It operates effectively with most petroleum-based fluids and ATF Type A maintaining system temperatures up to 200deg;F.

Supplier Part Number: 211-1012-002

Specifications

Additional Ports
None
Application
Agricultural Equipment, Forestry Equipment, Construction Equipment, Turf Care Equipment, Industrial Equipment
Design Code
2
Displacement
14.10
Displacement
14.1
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
Flow Amplification
None
Flow Range
4-8
Flow Rate1
23 LPM
Identification
Eaton Product Number On Nameplate
Inlet Load Sense Valve Sett
0 b
Inlet Pressure Rating
172
Input Torque
Standard
Integral Valves
Yes
Load Circuit
Non Reaction
Maximum Back Pressure
21
Mechanical Interface
Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree Pa
Mounting Threads
2X .375-24 UNF-2B Port Face 4X .375-16 UNC-2B Mounting Face
Ports
3/4-16 St.Thd O-Ring
Ports
3/4-16 St.Thd O-Ring
Recommended Filtration Level
ISO 18/13 Cleanliness
Return Pressure Rating
10
Special Features
None
Supplier Part Number
211-1012-002
Valve Options
Manual Steering Check Valve
Product Weight
12.55 lbs
Alternate Part Numbers
Alternate Part Number 211-1012-002, Alternate Part Number C1BC17, Alternate Part Number MINO-00162X04656

Related Documents

Similar Products

Model Number Displacement Flow Range Ports Features Price Action
Series 3-6-12 Steering Control Unit, Non-Load Reaction, 4.50 cu in/rev, 2-4 GPM Flow Range, 9/16-18 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1001 Series 3-6-12 Steering Unit

4.5

2-4

9/16-18 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 4.50 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1007 Series 3-6-12 Steering Unit

4.5

4-8

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 5.90 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1008 Series 3-6-12 Steering Unit

5.9

4-8

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 7.30 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1009 Series 3-6-12 Steering Unit

7.3

4-8

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 9.70 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1010 Series 3-6-12 Steering Unit

9.7

4-8

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 11.30 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1011 Series 3-6-12 Steering Unit

11.3

4-8

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 14.10 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1012 Series 3-6-12 Steering Unit

14.1

4-8

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 17.90 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1158 Series 3-6-12 Steering Unit

17.9

4-8

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 23.80 cu in/rev, 8-16 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1177 Series 3-6-12 Steering Unit

23.8

8-16

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 29.70 cu in/rev, 8-16 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1178 Series 3-6-12 Steering Unit

29.7

8-16

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 45.10 cu in/rev, 8-16 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

211-1179 Series 3-6-12 Steering Unit

45.1

8-16

3/4-16 St.Thd O-Ring

Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Product Questions & Answers (2)

Question by: Rick R on Aug 12, 2025, 8:53 AM
got a forestry machine that's been giving me fits with the steering and i'm pretty sure the control unit is shot. this one rated for that kind of equipment?
Answer by: Customer Support on Aug 13, 2025, 1:00 PM
Forestry equipment is right in the wheelhouse for this unit. The Series 3-6-12 is built to handle agricultural, forestry, construction, turf care, and industrial applications, so it covers a wide range of heavy-duty uses. With a 14.10 cubic inch per revolution displacement and a 4 to 8 GPM flow range, it holds up in demanding conditions. Just make sure your system stays within the 300 PSI maximum back pressure and keeps fluid temps at or below 200 degrees F, and you should be in good shape.
Question by: Sheila R on Jul 24, 2025, 3:34 PM
Is this steering control unit gonna work okay in my tractor? It's an older model but I need something reliable.
Answer by: Customer Support on Jul 26, 2025, 6:19 AM
This unit's designed for agricultural equipment, so it should fit the bill. Just double-check your flow rate requirements against the 4-8 GPM range to make sure it's a good match.
