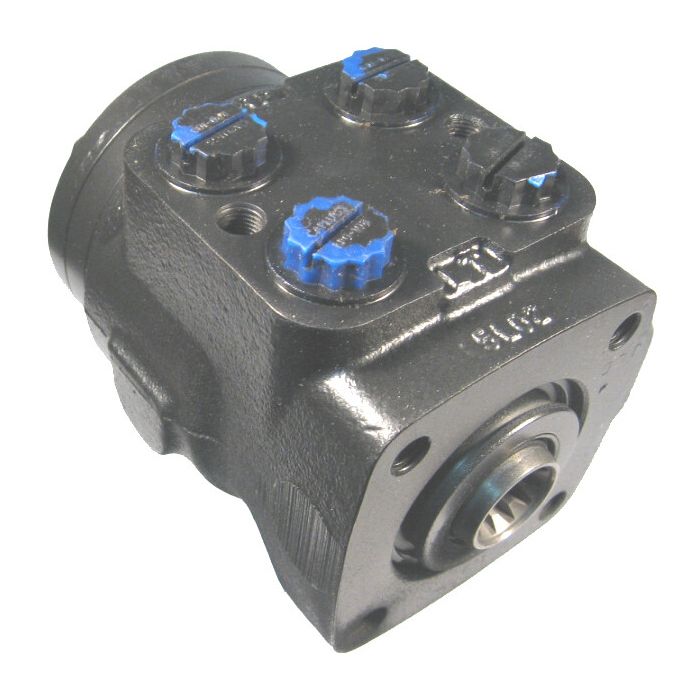

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 45.10 cu in/rev, 8-16 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Description & Features

Engineered for precision the steering control unit offers an optimal displacement of 45.1 cu in/rev and a versatile flow range between 8-16 GPM making it apt for various applications such as agricultural forestry construction turf care and industrial equipment. Its non-load reaction feature ensures smooth handling and consistent performance.

Equipped with 3/4-16 St.Thd O-Ring ports the unit is designed for durability and reliability. Integral valves are included to enhance the steering control mechanism while maintaining a maximum back pressure of 300 PSI. The unit also boasts a low torque shaft seal for reduced friction.

Recommended for use with most petroleum-based fluids and ATF Type A the unit is capable of withstanding a maximum system operating temperature of 200deg; F. The filtration level recommended is ISO 18/13 Cleanliness to ensure longevity and performance.

Supplier Part Number: 211-1179-002

MPN: 211-1179

Specifications

Brand Char-Lynn®	Color Black	Connection Type UNF-2B, SAE O-ring	Design Code 2	grp Input Torque 25 to 35 lb-in at 100 psi Back Pressure For Powered Applications, 100 lb-ft Maximum For Non-Powered Applications	grp Recommended Filtration ISO 18/13 Cleanliness Level	grp Recommended Fluids Most Petroleum Based Fluids and ATF Type A	Identification Eaton Product Number On Nameplate	Inlet Load Sense Valve Setting 0 B	Input Torque Standard	Integral Valves With Integral Valves	Load Circuit Non-Load Reaction	Material Ductile Iron	Mechanical Interface Internal Involute Spline, 12-Tooth 16/32 DP 30 deg PA	Mounting Threads 2x 3/8-24 UNF-2B Port Face, 4x 3/8-16 UNC-2B Mounting Face	Ports 3/4-16 Straight Thread O-ring	Recommended Filtration Level ISO 18/13 Cleanliness	Return Pressure Rating 10	Series 3/6/12 Series	Special Features Low Torque Shaft Seal	Valve Options Manual Steering Check Valve

Similar Products

Model Number	Displacement	Flow Range	Ports	Features
211-1001 Series 3-6-12 Steering Unit	4.5	2-4	9/16-18 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1007 Series 3-6-12 Steering Unit	4.5	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1008 Series 3-6-12 Steering Unit	5.9	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1009 Series 3-6-12 Steering Unit	7.3	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1010 Series 3-6-12 Steering Unit	9.7	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1011 Series 3-6-12 Steering Unit	11.3	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1012 Series 3-6-12 Steering Unit	14.1	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1158 Series 3-6-12 Steering Unit	17.9	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1177 Series 3-6-12 Steering Unit	23.8	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1178 Series 3-6-12 Steering Unit	29.7	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings

Product Questions & Answers (1)

Question by: Gene M on Oct 4, 2025, 8:44 PM

got a steering setup that don’t need load reaction, is this one the non-reaction style and what kind of machines does it fit?

Answer by: Customer Support on Oct 6, 2025, 11:55 AM

For systems that are set up as non-load reaction, this unit matches that load circuit and is commonly used across agricultural, forestry, construction, turf care, and general industrial equipment.
