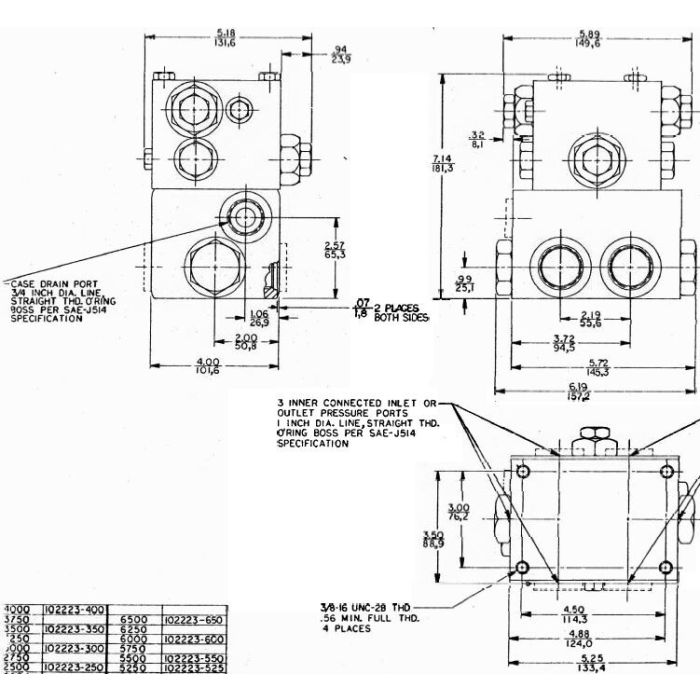

main product photo

Shuttle Valve Block Manifold Assembly

Ask A Question

Description & Features

Eaton Char-Lynn hot oil hydrostatic shuttle valve includes two high-pressure reliefs, a shuttle valve, and a low-pressure relief.

This Shuttle Valve Block Manifold Assembly is rated for flows up to 88 GPM and maximum operating pressures up to 6500 PSI.

It has -16 SAE work ports and -12 SAE drain ports, with high-pressure reliefs at 3500 PSI and a low-pressure relief at 160 PSI.

Recommended filtration is ISO 4406 Cleanliness Level 18/13 or cleaner, with a normal continuous system temperature limit of 180°F and a maximum intermittent temperature of 220°F.

SKU: 0102223-350

Supplier Part Number (MPN): 102223-350

Alternate Part Numbers: C1FE41

Specifications

Brand
Danfoss Power Solutions II (Char-Lynn)
Brand
Char-Lynn
Pack Size
1.00
UOM
EA
High Pressure Reliefs
3500
Low Pressure Relief
160
Ports
-16 SAE work port, -12 SAE drain
Ports
-16 SAE work port, -12 SAE drain
Alternate Part Numbers
Alternate Part Number 102223-350, Alternate Part Number C1FE41, Alternate Part Number MINO-00900X18435
Supplier Part Number
102223-350
Product Weight
31.81 lbs

Related Documents

Similar Products

Model Number Ports High Pressure Reliefs Low Pressure Relief Price Action
Shuttle Valve Block Manifold Assembly

0102223-350 Shuttle Valve Block Manifold

-16 SAE work port, -12 SAE drain

3500

160

Product Questions & Answers (1)

Question by: Howard C on Apr 6, 2025, 11:26 AM
flow rating on this thing goes up to 88 GPM? just want to make sure it'll handle what we're pushing through our hydrostatic system before we order
Answer by: Customer Support on Apr 8, 2025, 6:35 AM
88 GPM is the rated flow ceiling on this assembly. Pressure-wise it's built to handle up to 6500 PSI, so it's got plenty of headroom for most hydrostatic drive applications. The block comes preloaded with two high pressure reliefs set at 3500 PSI and a low pressure relief at 160 PSI, so you're getting a complete, ready-to-run package rather than having to source and set those valves separately.
