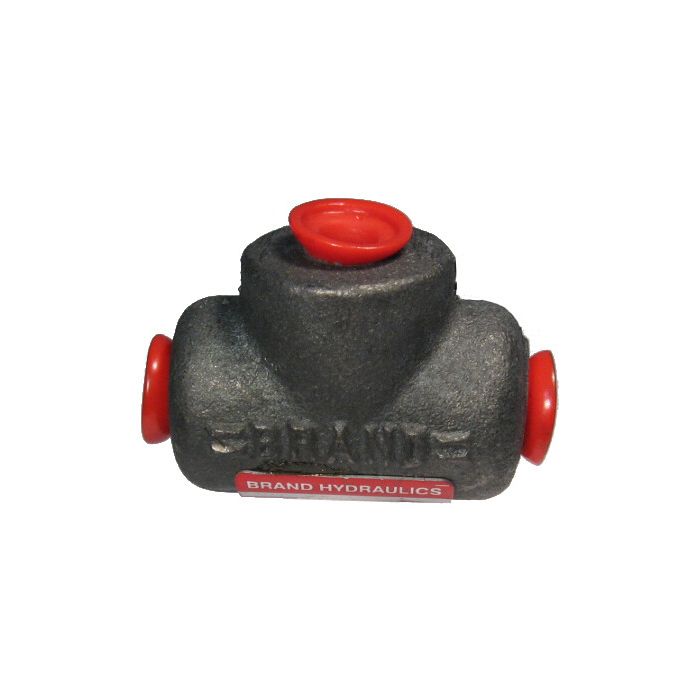

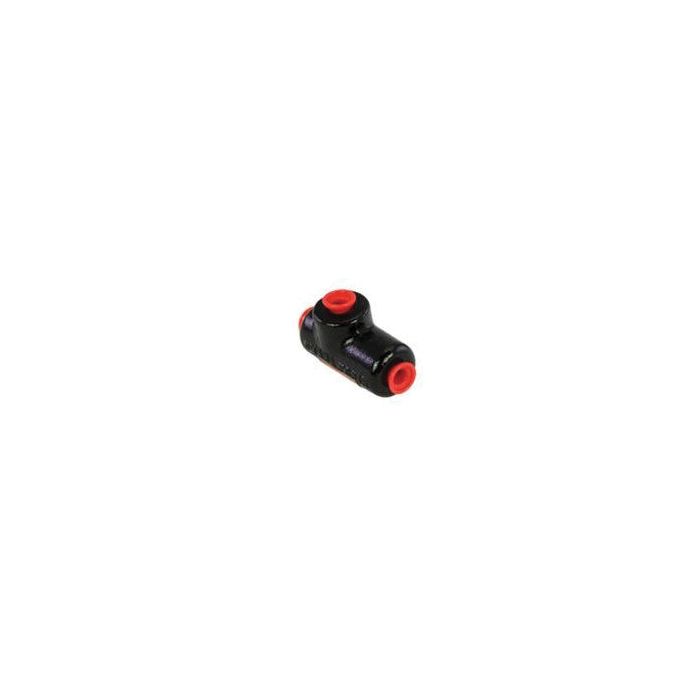

SHV Series Shuttle Valve, Cast Iron, 1/4 NPT Ports, Up To 5.00 GPM & 3000.00 PSI

Description & Features

Designed for industrial applications the SHV Series Shuttle Valve features a cast iron body and 1/4 NPT ports capable of handling up to 5.00 GPM and 3000.00 PSI. It efficiently directs flow from the higher pressure inlet to the outlet keeping inlets isolated.

The valve includes Buna-N O-rings and a hardened steel ball enhancing durability and minimizing leakage. With a peak pressure drop of 50 PSI it is optimized for high-pressure setups.

This model is recommended with 30-micron filtration to prolong system longevity.

MPN: SHV25

Supplier Part Number: SHV25

Specifications

Brand Brand Hydraulics Inc.	Brand Brand Hydraulics	Pack Size 1.00	UOM EA	Materials Cast Iron	Maximum Operating Pressure 3000	Peak Pressure Drop 50	Port Size 1/4 NPT	Rated Flow 5	Rated Flow 5	Alternate Part Numbers Alternate Part Number C1GK55, Alternate Part Number MI-00970591, Alternate Part Number MINO-00127X20204	Supplier Part Number SHV25	Product Weight 0.60 lbs

Similar Products

Model Number	Materials	Maximum Operating Pressure	Rated Flow	Peak Pressure Drop	Price	Action
SHV25 SHV Series Shuttle Valve	Cast Iron	3000	5	50

Product Questions & Answers (2)

Question by: Darryl J on Jan 14, 2026, 10:33 AM

What exactly does this valve do when it's got pressure coming in from both inlets at the same time?

Answer by: Customer Support on Jan 16, 2026, 7:40 AM

When pressure hits both inlets, the hardened steel ball inside shifts toward the lower-pressure side and blocks it off. Flow from the higher-pressure inlet gets routed through to the outlet. The two inlets stay isolated from each other the whole time, so there's no crossflow between them. That's the core job of a shuttle valve, and it handles it passively without any external signal or actuation.

Question by: Brett G on Jul 30, 2025, 7:43 AM

got two pressure sources going into it, does this shuttle valve keep em from backfeeding each other?

Answer by: Customer Support on Jul 31, 2025, 6:31 PM

With two inlets and one outlet, it routes flow from whichever inlet has the higher pressure over to the outlet while keeping the two inlet flows isolated from one another.
