Single & Double Wire Braid SAE 100R17 Hose

Description & Features

Application	General industrial & hydraulic system service with petroleum & water-base fluids. Recommended for high pressure oil lines used on construction equipment and other off-highway applications. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on

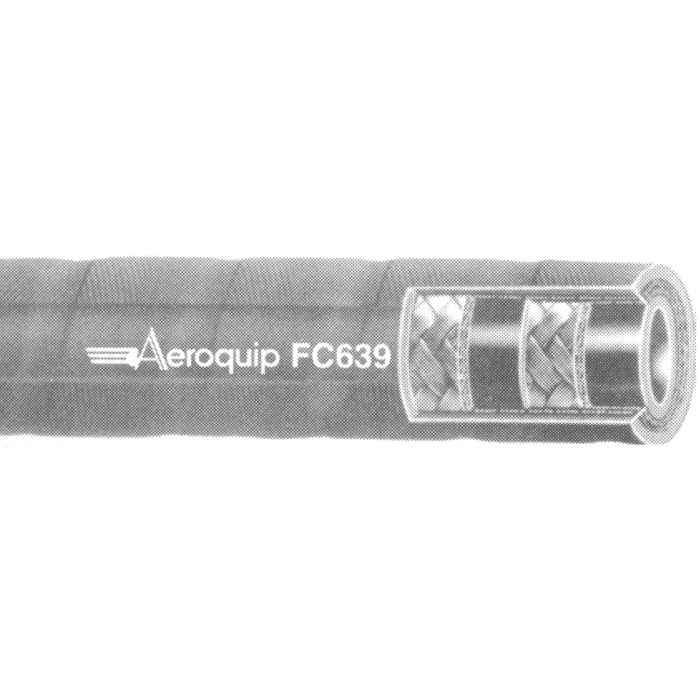

Construction	Synthetic rubber tube, single wire braid reinforcement (sizes -4 -6 -8), double wire braid reinforcement (sizes -10 -12 -16), ozone resistant black synthetic rubber cover.
Temperature Range	-40°F to 212°F.

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Reel Qty (ft)
FC639-04 Single/Double Wire SAE100R17 Hose	0.25	0.59	3000	2	450-550
FC639-06 Single/Double Wire SAE100R17 Hose	0.38	0.67	3000	2.5	450-550
FC639-08 Single/Double Wire SAE100R17 Hose	0.5	0.81	3000	3.5	450-550
FC639-12 Single/Double Wire SAE100R17 Hose	0.75	1.14	3000	4.75	225-300
FC639-16 Single/Double Wire SAE100R17 Hose	1	1.43	3000	6	125-200
