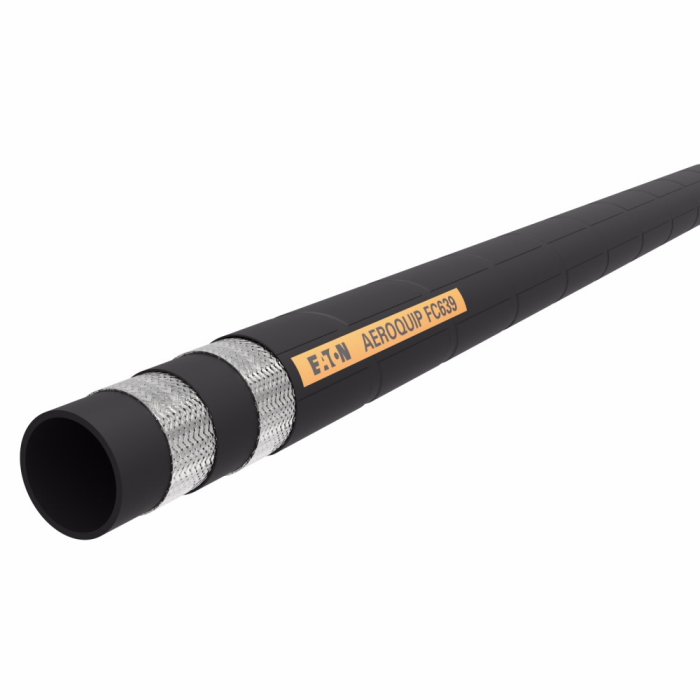

main product photo

Single & Double Wire Braid SAE 100R17 Hose, 1.00 Inch ID, Up to 3000.00 PSI

Ask A Question

Description & Features

Designed for robust performance, the Eaton Aeroquip Single & Double Wire Braid SAE 100R17 Hose is ideal for refined petroleum-based fluids. This durable hose features a 1.00-inch ID and supports up to 3000 PSI, making it suitable for high-pressure applications. Its 2-ply braid construction ensures reliability and strength under demanding conditions. The cover material is made from synthetic rubber, providing standard abrasion resistance and extending the hose's lifespan. With a black color and conductive properties, this hose is a reliable choice for industrial use.

SKU: FC639-16

Supplier Part Number (MPN): FC639-16RL

Alternate Part Numbers: C1ZX94

Specifications

Abrasion Resistance
29
Application
Refined petroleum based fluids.
Color
Black
Conductivity
30
Construction
2-ply braid
Cover Material
Synthetic Rubber
Dash Size
-16
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
1
Hose O.D.
1.43
Lay Line Style
Ink Transfer
Maximum Operating Pressure
3000
Minimum Bend Radius
6
Minimum Bend Radius
6
Minimum Working Temperature
-40
Reel Qty (ft)
125-200
Reinforcement Material
Wire
Supplier Part Number
FC639-16RL
Tube Material
Synthetic Rubber
Alternate Part Numbers
Alternate Part Number C1ZX94, Alternate Part Number FC639-16RL, Alternate Part Number MINO-00015X10883
Product Weight
0.92 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Reel Qty (ft) Price Action
Single & Double Wire Braid SAE 100R17 Hose, 0.25 Inch ID, Up to 3000.00 PSI

FC639-04 Single/Double Wire SAE100R17 Hose

0.25

0.59

3000

2

450-550

Single & Double Wire Braid SAE 100R17 Hose, 0.38 Inch ID, Up to 3000.00 PSI

FC639-06 Single/Double Wire SAE100R17 Hose

0.38

0.67

3000

2.5

450-550

Single & Double Wire Braid SAE 100R17 Hose, 0.50 Inch ID, Up to 3000.00 PSI

FC639-08 Single/Double Wire SAE100R17 Hose

0.5

0.81

3000

3.5

450-550

Single & Double Wire Braid SAE 100R17 Hose, 0.75 Inch ID, Up to 3000.00 PSI

FC639-12 Single/Double Wire SAE100R17 Hose

0.75

1.14

3000

4.75

225-300

Product Questions & Answers (2)

Question by: Gene H on Apr 25, 2025, 9:39 AM
Running a 1-inch line on a petroleum-based hydraulic system, figured this might be the right hose but wanted to make sure before I order a whole reel. Refined petroleum fluids only, or is there more flexibility than that?
Answer by: Customer Support on Apr 27, 2025, 6:31 AM
Refined petroleum-based fluids are the stated application for this hose, so you're in the right ballpark for that kind of system. The cover is synthetic rubber with standard abrasion resistance, and the construction is a 2-ply wire braid rated up to 3000 PSI at 1.00-inch ID. For petroleum-based hydraulic fluid lines, it's a solid fit. Just make sure your working pressure stays within that 3000 PSI ceiling and you're good to go.
Question by: Troy S on Feb 24, 2026, 8:11 AM
If I'm pumpin' some pretty heavy stuff through this, will the outside hold up okay? I'm not tryin' to replace this thing every few months.
Answer by: Customer Support on Feb 25, 2026, 8:47 PM
This hose is made with a synthetic rubber cover that offers standard abrasion resistance, so it should hold up reasonably well under normal wear and tear.
