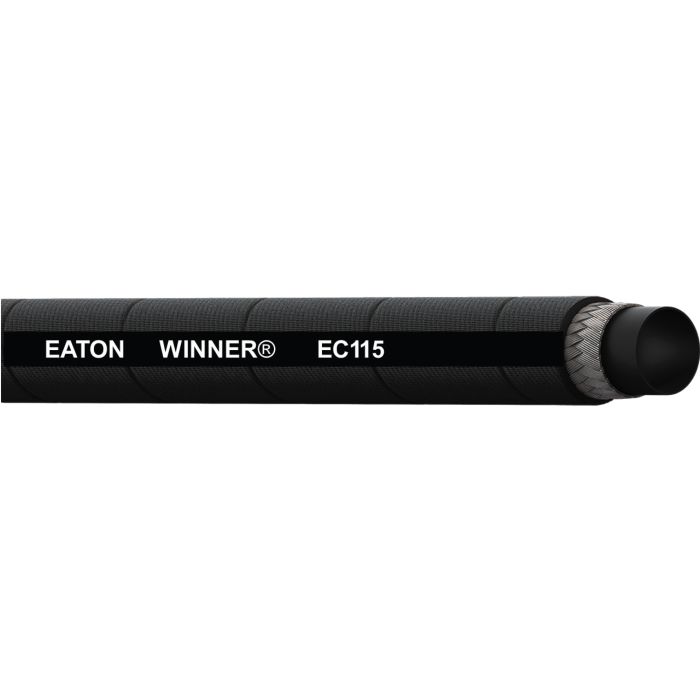

EN857 1SC Single Wire Braid Hose
Description & Features
| Application | Hydraulic system service with petroleum and water-based fluids & General industrial service. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
| Construction | Synthetic rubber tube, single wire braid reinforcement, black synthetic rubber cover MSHA approved, embossed layline. |
| Crimp Fittings | 2-piece |
| Temperature Range | -40°F to +212°F |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Reel Qty (ft) | Price | Action |
|---|---|---|---|---|---|---|---|---|
EC115-04RL Single Wire Braid Hose |
0.25 |
0.48 |
3250 |
13000 |
2.95 |
500 |
|
|
EC115-06RL Single Wire Braid Hose |
0.38 |
0.61 |
2600 |
|
2.48 |
500 |
|
|
EC115-08LRL Single Wire Braid Hose |
0.5 |
0.75 |
2300 |
|
3.54 |
500 |
|
|
EC115-10RL Single Wire Braid Hose |
0.62 |
0.88 |
1900 |
|
3.94 |
500 |
|
|
EC115-12RL Single Wire Braid Hose |
0.75 |
1.02 |
1525 |
|
4.72 |
250 |
|
|
EC115-16RL Single Wire Braid Hose |
1 |
1.31 |
1275 |
|
6.3 |
250 |
|
|
EC115-20 Single Wire Braid Hose |
1.25 |
1.63 |
925 |
|
8.27 |
|
|
Product Questions & Answers (1)
Question by: Shane P on Aug 6, 2025, 8:11 PM
Would this hose hold up okay in a hydraulic system running off water-based fluids?
Answer by: Customer Support on Aug 8, 2025, 6:44 AM
Absolutely, this EN857 1SC hose is designed specifically for hydraulic systems using both petroleum and water-based fluids.
