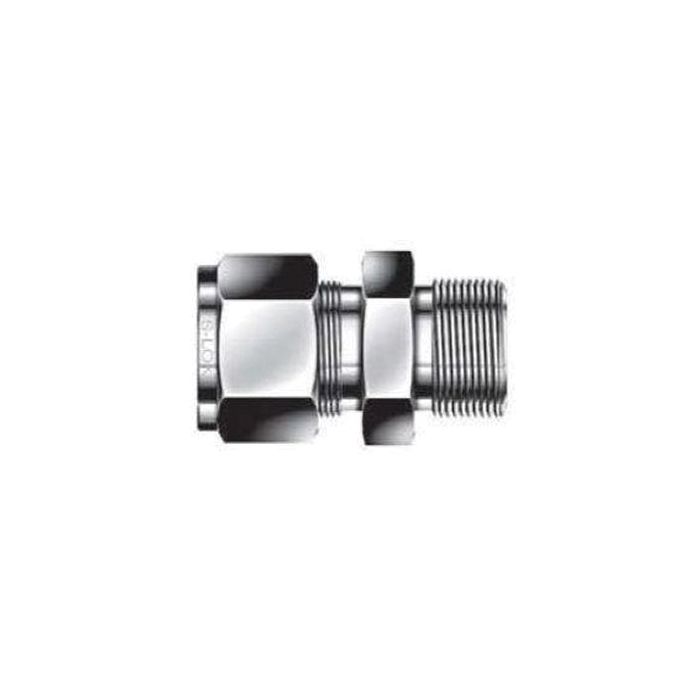

main product photo

SMC-16-16N-S6

Ask A Question

Description & Features

Designed for straight-thread hydraulic and pneumatic line connections, this male connector joins 1-inch OD tubing to a 1-inch male NPT threaded port. The SMC-16-16N-S6 provides a reliable, leak-resistant connection point in fluid power systems where tube-to-port transitions are required.

With a 1-inch tube OD matched to a 1-inch male NPT end, this fitting is suited for mid- to large-bore line configurations commonly found in industrial hydraulic circuits and pneumatic assemblies. The male NPT thread conforms to standard tapered pipe thread form, ensuring compatibility with NPT-threaded ports and adapters across a broad range of industrial equipment.

SKU: SMC-16-16N-S6

Supplier Part Number (MPN): SMC-16-16N-S6

Specifications

Brand
S-LOK®
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Compression, MNPT
Connection Type 1
Tube Compression
Connection Type 2
MNPT
Dimension Standards
ASME B1.20.1
Dimensions
62.23 in L
Fitting Type
Connector
Hex Size
1-3/8 x 1-1/2 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SMC-N Series

Product Questions & Answers (1)

Question by: Darryl S on Mar 11, 2026, 7:47 PM
Will this fitting work to connect a 1" OD tube to a standard 1" NPT port?
Answer by: Customer Support on Mar 13, 2026, 6:37 PM
Yes, this male connector is designed specifically for connecting a 1-inch OD tube to a 1-inch male NPT threaded port, providing a reliable connection in fluid power systems.
