SMCB-6-6N-S6

Ask A Question

Description & Features

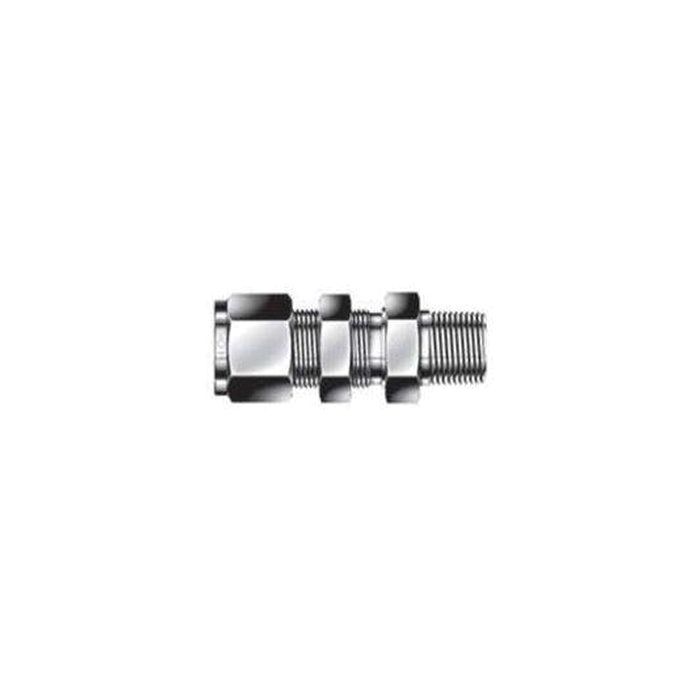

Designed for inline bulkhead installations, this 3/8 in. male connector provides a reliable through-panel or through-wall fitting solution in hydraulic and pneumatic tubing assemblies. The male configuration allows direct connection at both the tube and fitting interface, making it well suited for routing lines through enclosures or structural members where a secure, leak-resistant seal is required.

The SMCB-6-6N-S6 is a 3/8 in. to 3/8 in. bulkhead male connector, matched for equal-size tubing on both sides of the bulkhead. Its compact design supports clean line routing in space-constrained systems without the need for additional adapters.

SKU: SMCB-6-6N-S6

Supplier Part Number (MPN): SMCB-6-6N-S6

Specifications

Brand
S-LOK®
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Compression, MNPT
Connection Type 1
Tube Compression
Connection Type 2
MNPT
Dimension Standards
ASME B1.20.1
Dimensions
57.4 in L
Fitting Type
Connector
Hex Size
0.75 x 0.69 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SMCB Series
Tube OD
3/8 in

Product Questions & Answers (1)

Question by: Jerry W on Jan 18, 2026, 11:01 AM
Just want to make sure, this is for going through a panel, right?
Answer by: Customer Support on Jan 19, 2026, 4:48 PM
Yes, that's right. This bulkhead male connector is designed specifically for running tubing through panels or walls.
