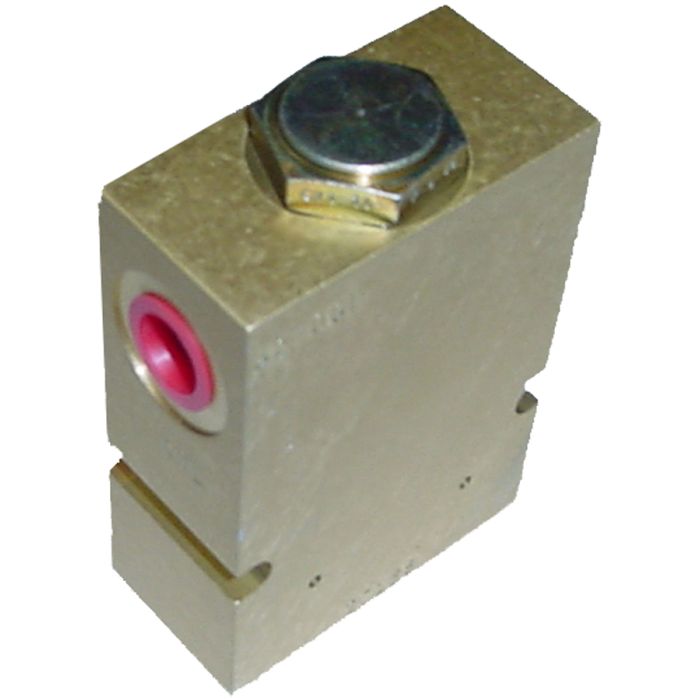

SPC1-10 Series Inline Single Pilot Operated Check Valves, Up To 3000 PSI & 12 GPM

Description & Features

Cracking Pressure	15 PSI.
Flow Rating	12 GPM.
Maximum Operating Pressure	3000 PSI.
Pilot Ratios	4:1
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Temperature Range	-40°F to 248°F (Extreme Limits).

Products

Model Number	Part Number	Pilot Port Size	Seal Material	Price	Action
SPC1-10-P-6T SPC1-10 Series PO Check Valve	02-161199	SAE-4	Buna-N
SPC1-10-P-8T SPC1-10 Series PO Check Valve	565875	SAE-4	Buna-N

Product Questions & Answers (1)

Question by: Connie C on Dec 24, 2025, 12:22 PM

Reckon this check valve would work okay in a setup where the fluid gets pretty hot?

Answer by: Customer Support on Dec 26, 2025, 6:21 AM

This valve is rated to handle fluid temperatures from -40°F all the way up to 248°F, so it should be suitable for many hydraulic applications where heat is a concern.
