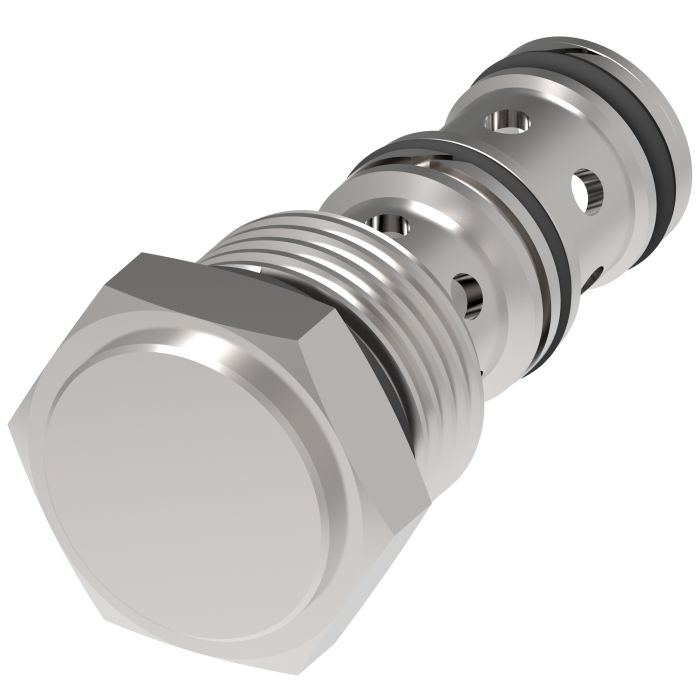

SPC2-10 Series Single Pilot Operated Cartridge Check Valve, 25 PSI Cracking Pressure

The SPC2-10 Series Single Pilot Operated Cartridge Check Valve, 25 PSI Cracking Pressure by Danfoss (Power Solutions II LLC) is engineered for high-efficiency performance in demanding applications. The valve features a maximum operating pressure of 3000 PSI and a flow rating of 6 GPM, ensuring reliable operation under various conditions. It achieves superior operational efficiency with a temperature range of -4deg;F to 150deg;F.

Designed for applications requiring secure load holding, this check valve employs a 4:1 pilot ratio, facilitating effective pressure management in hydraulic circuits. The seal material, Buna-N, offers durable performance, while the recommended ISO 4406 cleanliness level of 18/16/13 or cleaner enhances longevity.

Its 25 PSI cracking pressure and low spring settings make this valve suitable for precise control tasks. The housing cavity size is C-10-3, and the cartridge model SPC2-10 is sold separately. The product excels in applications where leakage-free locking is critical, such as preventing load movement when the pressure source is inactive.

Model Number: SPC2-10-P-0-25

Supplier Part Number: 565619
