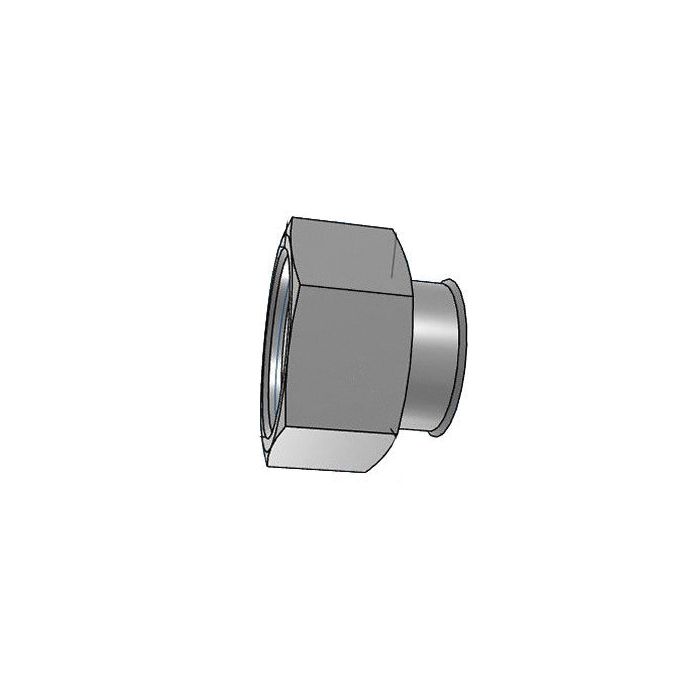

Ss Din Soft Seal Tube Cap

Description & Features

Manufactured in stainless steel, this M18 x 1.5 female DIN tube cap is designed to seal tube ends in hydraulic systems where corrosion resistance is a priority. The soft seal design provides a reliable, leak-resistant closure without requiring additional sealant. At 15.5mm in length with a 22mm across-flats width, the Ss Din Soft Seal Tube Cap is a compact fitting suited for capping unused DIN tube ports in size L12 applications.

Sourced from Adaptall, this cap is built to DIN tube fitting standards and is a practical choice for maintaining system integrity during maintenance, reconfiguration, or staged assembly where ports need to be temporarily or permanently closed.

SKU: SS5204L-12

Supplier Part Number (MPN): SS5204L-12

Specifications

CH Width 22mm	L Length 15.5mm	Adaptall Material Stainless	Adaptall Shape Cap	Side 1 Callout M18 X 1.5	Side 1 Gender F	Side 1 Size L12	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5204L-12	Product Weight 0.10 lbs

Product Questions & Answers (1)

Question by: Peggy J on Nov 2, 2025, 8:11 PM

got a L12 DIN port I need to cap off on a stainless manifold, this the right size for that?

Answer by: Customer Support on Nov 4, 2025, 10:42 AM

For an L12 DIN tube port, that's exactly what this cap is built for. The M18 x 1.5 female thread matches the L12 size designation used in DIN tube fitting systems, and the stainless steel construction makes it a solid match for corrosion-sensitive environments like a stainless manifold setup. At 15.5mm long with a 22mm across-flats width, it's compact enough to fit in tight quarters without much fuss.
