Ss Din Union Tee

Description & Features

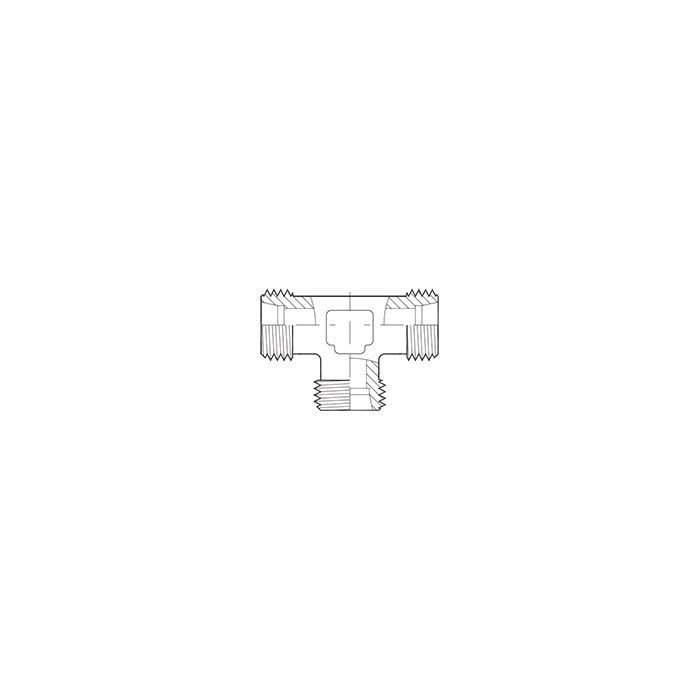

This stainless steel DIN union tee features three M22 x 1.5 male DIN tube connections, each sized at L15.

The Adaptall Ss Din Union Tee is constructed from durable stainless steel, offering reliable performance in demanding hydraulic applications. With a width of 19mm and lengths of 28mm and 21mm, this tee provides a secure and precise fit.

SKU: SS5080L-15

Supplier Part Number (MPN): SS5080L-15

Specifications

Brand adapt-all	Additional Information Light-Duty	Connection Size 1 L15	Connection Size 2 15 mm	Connection Size 3 L15	Connection Type Metric	Connection Type 1 DIN Tube	Connection Type 2 DIN Tube	Connection Type 3 DIN Tube	Dimension Standards DIN 2353	Dimensions 55 mm L	Fitting Type Tee	Hex Size 19 mm	Material Stainless Steel	Material Construction 316 Stainless Steel	Series SS5080 Series	Thread Size M22x1.5

Product Questions & Answers (2)

Question by: Larry A on Jan 15, 2026, 6:57 PM

All three ports on this thing are M22 x 1.5 male DIN, right? Just want to make sure before I order a handful of em.

Answer by: Customer Support on Jan 17, 2026, 6:14 AM

all three sides are M22 x 1.5 male DIN tube connections, each at the L15 size. So whatever you're threading into it needs to match that female DIN tube fitting on the other end. No mixing of sizes or thread types across the ports on this one.

Question by: Donna J on Aug 13, 2025, 2:21 PM

trying to tee off a DIN tube line, are all three ends on this one M22 x 1.5 male in L15?

Answer by: Customer Support on Aug 15, 2025, 2:20 PM

All three ports match. It is a stainless DIN union tee with three M22 x 1.5 male DIN tube connections, each called out as size L15.
