Ss Din X Mbspp No Seal

Description & Features

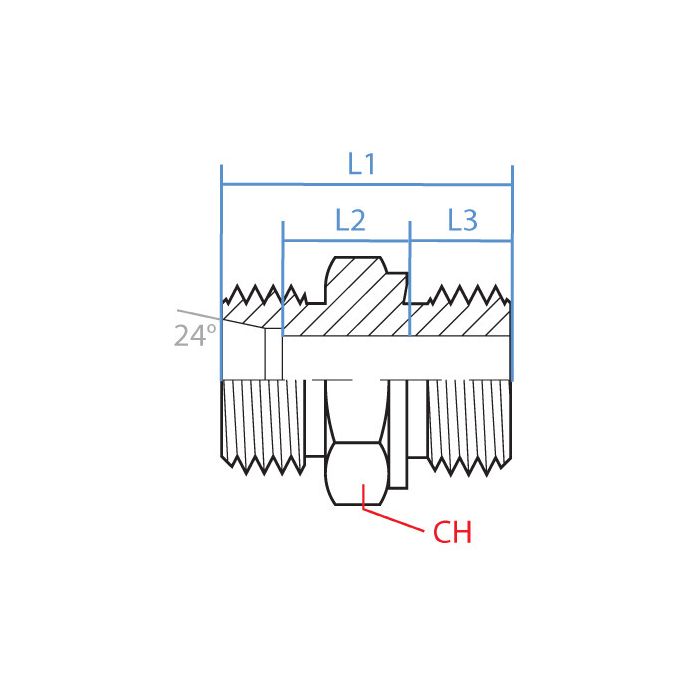

Constructed from stainless steel, this straight adapter connects a male DIN tube fitting (M18 x 1.5 thread) on one side to a male BSPP port (G 3/8 - 19) on the other, allowing transition between these two common thread standards in a single compact fitting. The no-seal configuration means no integrated O-ring or bonded seal is included, making it suited for installations where sealing is managed externally or at the mating connection.

The Ss Din X Mbspp No Seal is an Adaptall fitting, part of a widely used modular adapter system recognized across industrial hydraulic and fluid power applications. Stainless steel construction provides reliable resistance to corrosion in demanding service environments where carbon steel fittings may not be appropriate.

SKU: SS5001L-12-06

Supplier Part Number (MPN): SS5001L-12-06

Specifications

Additional Information Light-Duty	Connection Size 1 L12	Connection Size 2 3/8 in	Connection Type Male BSP, Metric	Connection Type 1 DIN Tube	Connection Type 2 Male BSPP	Dimension Standards BS 5200, DIN 2353	Fitting Type Adapter	Material Stainless Steel	Material Construction 316 Stainless Steel	Series SS5001 Series	Thread Size M18x1.5 x G3/8-19

Product Questions & Answers (2)

Question by: Chad H on Feb 26, 2026, 7:03 AM

got a DIN tube fitting that’s M18 x 1.5 on one end and a G 3/8-19 BSPP port on the other. is this the straight adapter for that?

Answer by: Customer Support on Feb 28, 2026, 6:52 AM

For matching those thread standards, this adapter is set up exactly that way. One side is a male DIN tube fitting with M18 x 1.5 threads, and the other side is a male BSPP with a G 3/8-19 thread, in a straight body.

Question by: Troy M on Jul 1, 2025, 9:23 AM

Got a machine running DIN tube fittings on one end and BSPP ports on the other, does this fitting bridge those two without needing extra adapters in between?

Answer by: Customer Support on Jul 3, 2025, 9:03 AM

Yeah, that's exactly what it's built for. One side threads into an M18 x 1.5 DIN tube fitting, and the other side is a male BSPP port at G 3/8-19. One fitting, one connection, no stacking required.
