Ss F. Din Soft Seal Union

Description & Features

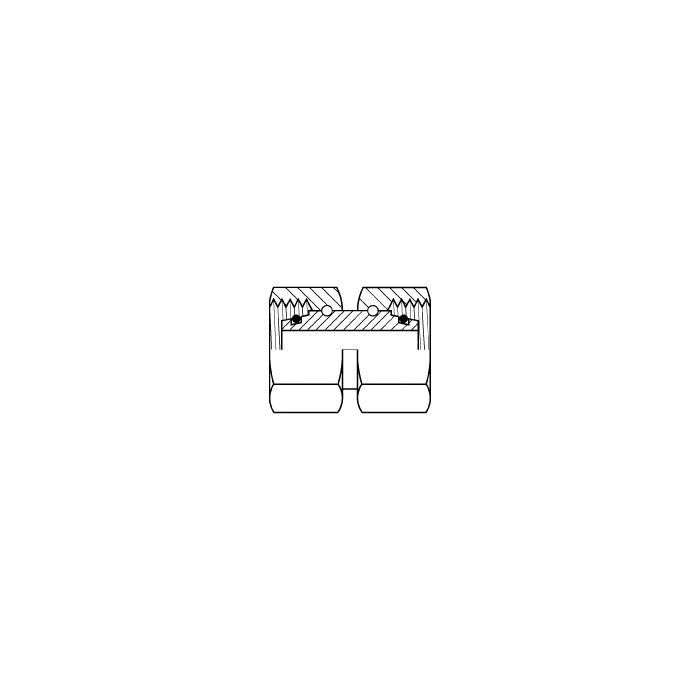

Built for symmetrical inline connections in hydraulic tube assemblies, this stainless steel union features DIN tube ends on both sides with M16 x 1.5 female threads and an L10 tube size rating. The straight profile and matched connection geometry on each end make it well suited for joining two DIN-standard tube lines without a change in direction or thread type.

Manufactured by Adaptall, the Ss F. Din Soft Seal Union incorporates a soft seal design that provides reliable sealing performance at the connection interface. Stainless steel construction offers corrosion resistance in demanding fluid power environments. At 43.5mm in overall length, with wrench flats of 19mm and 16mm, the fitting is compact and practical for use in tight installations where access to both ends is required.

SKU: SS5300L-10

Supplier Part Number (MPN): SS5300L-10

Specifications

Brand adapt-all	Additional Information Light-Duty	Connection Size 2 10 mm	Connection Type Female Metric Swivel	Connection Type 1 Female DIN Tube Swivel	Connection Type 2 Female DIN Tube Swivel	Dimension Standards DIN 2353	Dimensions 37 mm L	Fitting Type Union	Hex Size 19 mm	Material Stainless Steel	Material Construction 316 Stainless Steel	Series SS5300 Series	Thread Size M16x1.5

Product Questions & Answers (1)

Question by: Jimmy T on Aug 28, 2025, 5:15 PM

trying to tie two DIN tube lines together, both L10 with M16 x 1.5 female ends. is this the straight union for that?

Answer by: Customer Support on Aug 30, 2025, 10:03 AM

For an inline join where both sides are DIN tube ends, M16 x 1.5 female, and the tube size is L10, this union matches that same connection on both ends so you can couple the two lines without changing direction or thread style.
