Ss316 Male Metric X Female Npt

Description & Features

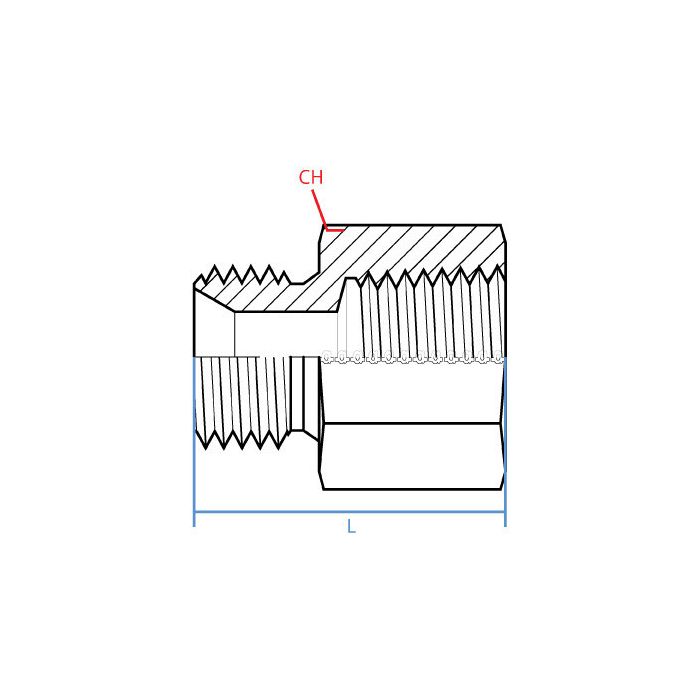

This straight Adaptall fitting is made from stainless steel 316. It adapts a male metric DIN tube to a female NPT connection.

On one side, this Ss316 Male Metric X Female Npt fitting features a M12 x 1.5 male DIN tube connection, size L06. The other side features a 1/4" female NPT connection with 1/4 - 18 NPTF threads.

SKU: SS9235-12-L06-04

Supplier Part Number (MPN): SS9235-12-L06-04

Specifications

Additional Information Light-Duty	Connection Size 1 6 mm	Connection Size 2 1/4 in	Connection Type FNPT, Male Metric	Connection Type 1 Male Metric	Connection Type 2 FNPT	Dimension Standards ANSI B1.20.3, DIN 2353	Fitting Type Adapter	Material Stainless Steel	Material Construction 316 Stainless Steel	Series SS9235 Series	Thread Size M12x1.5 x 1/4-18

Product Questions & Answers (3)

Question by: Earl H on May 1, 2025, 4:01 PM

Will this fitting hold up to typical hydraulic pressures without leaking?

Answer by: Customer Support on May 3, 2025, 8:07 AM

This straight Adaptall fitting is made from stainless steel 316, which offers excellent corrosion resistance and is commonly used in hydraulic applications. The NPT threads should provide a solid seal when properly tightened.

Question by: Vince M on Mar 9, 2026, 6:34 AM

Got a metric tube line on a piece of imported equipment and need to tie it into a 1/4" NPT female port. This fitting do that job?

Answer by: Customer Support on Mar 10, 2026, 8:55 AM

That's what this one's built for. One end is a male M12 x 1.5 DIN tube connection, size L06, and the other end is a 1/4" female NPT with 1/4-18 NPTF threads. So if you've got a metric DIN tube on one side and a female NPT port on the other, this bridges that gap straight through without any adapters in between.

Question by: Lynn Y on May 26, 2025, 11:18 AM

got a line with an M12 x 1.5 DIN tube end, will this screw into a 1/4 npt port on the other side?

Answer by: Customer Support on May 28, 2025, 6:52 AM

It bridges those two standards in one straight adapter. One end is a male M12 x 1.5 DIN tube connection (size L06), and the other end is a 1/4 inch female NPT connection with 1/4 - 18 NPTF threads.
