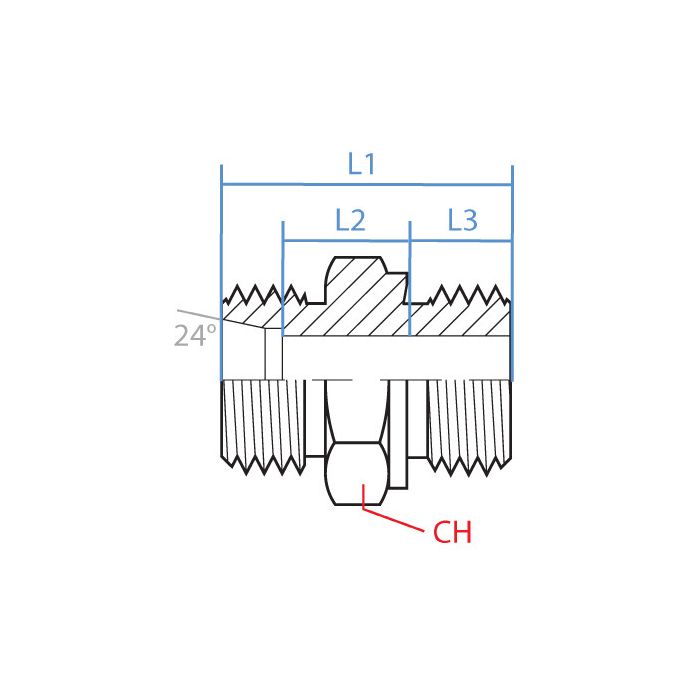

main product photo

Ss Din X Mbspp No Seal

Ask A Question

Description & Features

Constructed from stainless steel, this straight hydraulic adapter connects a DIN tube end (M18 x 1.5 male) on one side to a male BSPP (G 1/4-19) port on the other. The no-seal design relies on metal-to-metal contact at the connection interfaces rather than an elastomeric face seal, making it suited for applications where seal compatibility or high-temperature conditions are a consideration.

Manufactured by Adaptall, the SS5001L-12-04 is part of a modular adapter system widely used in hydraulic circuits requiring reliable thread conversion between metric DIN and British Standard Parallel Pipe fittings. Stainless steel construction offers good resistance to corrosion in demanding fluid handling environments.

SKU: SS5001L-12-04

Supplier Part Number (MPN): SS5001L-12-04

Specifications

Additional Information
Light-Duty
Connection Size 1
L12
Connection Size 2
1/4 in
Connection Type
Male BSP, Metric
Connection Type 1
DIN Tube
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, DIN 2353
Fitting Type
Adapter
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS5001 Series
Thread Size
M18x1.5 x G1/4-19

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Melvin B on May 13, 2025, 1:32 PM
Got a hydraulic line running DIN tube fittings on one end and need to tie into a BSPP port on a valve block, this adapter do that straight through, no extra fittings needed?
Answer by: Customer Support on May 14, 2025, 5:31 PM
Yeah, that's exactly what this one's built for. One side is M18 x 1.5 male DIN tube, the other is G 1/4-19 male BSPP, and it runs straight through with no bends or offsets. As long as your valve block has a female BSPP port sized for 1/4 inch, you're making that conversion in one piece.
Question by: Norm J on Jul 18, 2025, 9:07 PM
got a DIN tube end that’s M18 x 1.5 on one side and i need to land it into a G 1/4-19 port, is this the right adapter?
Answer by: Customer Support on Jul 20, 2025, 6:29 PM
For thread conversion between those two ends, it matches up as a straight stainless adapter with a DIN tube end M18 x 1.5 male on one side and a male BSPP G 1/4-19 on the other.
