Ss Din X Mbspp Es Seal

Description & Features

This stainless steel Adaptall fitting features a straight shape and is constructed from durable stainless steel. It adapts a M26 X 1.5 DIN tube connection to a G 3/4 - 14 BSPP connection. The DIN tube side has a L18 size, while the BSPP side has a 3/4" size.

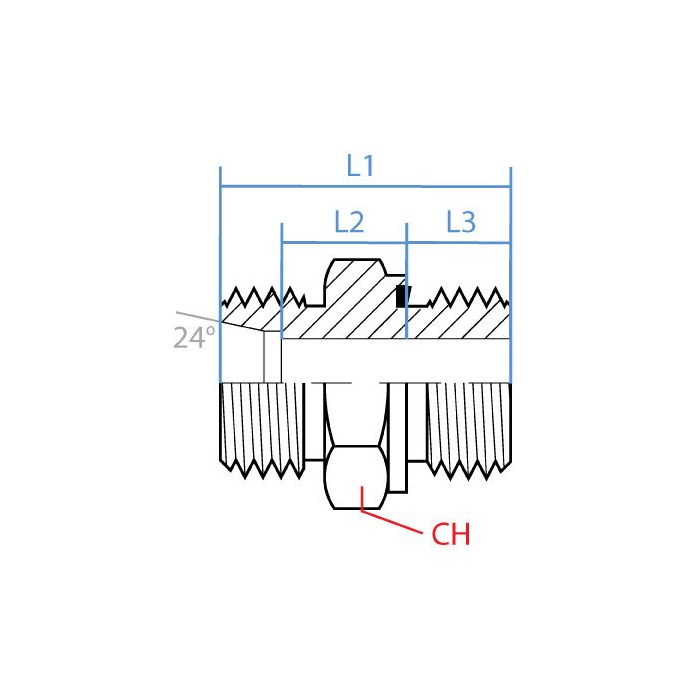

The Adaptall Ch Width is 32mm, Adaptall L1 Length is 38mm, Adaptall L2 Length is 14.5mm, and Adaptall L3 Length is 16mm. This Ss Din X Mbspp Es Seal offers a reliable connection between different thread types in hydraulic applications.

SKU: SS5002L-18-12

Supplier Part Number (MPN): SS5002L-18-12

Specifications

Additional Information Light-Duty	Connection Size 1 18 mm	Connection Size 2 3/4 in	Connection Type Male BSP, Metric	Connection Type 1 DIN Tube	Connection Type 2 Male BSPP Elastomeric Seal	Dimension Standards BS 5200, DIN 2353	Dimensions 38 mm L	Fitting Type Adapter	Hex Size 32 mm	Material Stainless Steel	Material Construction 316 Stainless Steel	Series SS5002 Series	Thread Size M26x1.5 x 3/4-14

Product Questions & Answers (1)

Question by: Sherry T on Feb 2, 2026, 7:26 AM

So, this here's stainless steel, right? Just makin' sure it can handle what I'm throwin' at it.

Answer by: Customer Support on Feb 3, 2026, 2:51 PM

Yes, this Adaptall fitting is constructed from durable stainless steel, which should offer good resistance in demanding hydraulic applications.
