Ss Din X Mbspp Es Seal Complete

Description & Features

This stainless steel Adaptall fitting is a straight DIN tube to BSPP adapter with an elastomeric seal. It features a DIN tube side with a M30 x 2.0 callout and S20 size, and a BSPP side with a G 3/4 - 14 callout and 3/4" size. The Ss Din X Mbspp Es Seal Complete is constructed from stainless steel for durability and corrosion resistance.

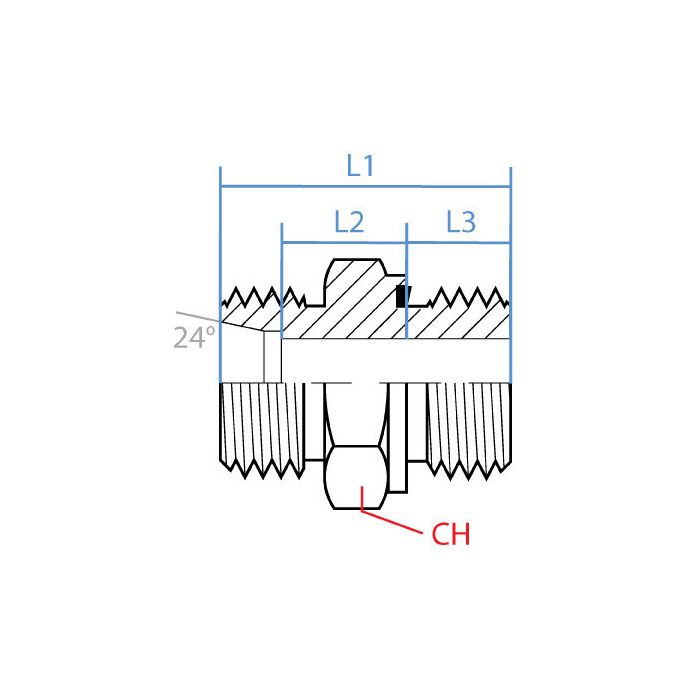

The Adaptall fitting has a 32mm wrench flat, a L1 length of 47mm, a L2 length of 20.5mm, and a L3 length of 16mm.

SKU: SS5002S-20-12C

Supplier Part Number (MPN): SS5002S-20-12C

Specifications

CH Width 32mm	L1 Length 47mm	L2 Length 20.5mm	L3 Length 16mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5002S-20-12C	Product Weight 0.62 lbs

Product Questions & Answers (1)

Question by: Jerry B on Mar 24, 2026, 7:49 AM

Got a DIN tube end that's M30 x 2.0 and need to tie into a BSPP port, 3/4 inch. This the right fitting for that?

Answer by: Customer Support on Mar 25, 2026, 7:46 PM

That's what this one's built for. The DIN tube side is M30 x 2.0 at an S20 size, and the other end is G 3/4-14 BSPP at 3/4 inch. Both sides are male, so make sure your mating connections are female on each end before you order.
