Din X Male Npt

Ask A Question

Description & Features

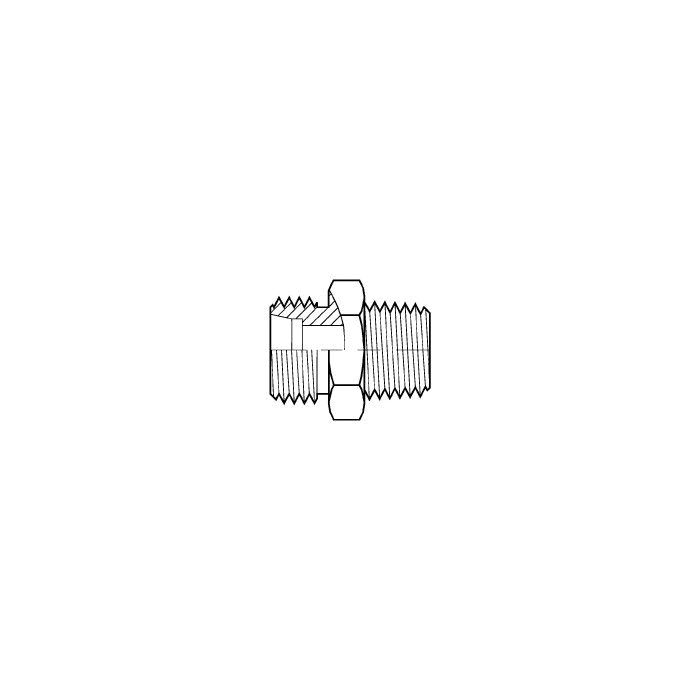

Machined from stainless steel, this straight hydraulic adapter connects a DIN tube end to a male NPT port, making it well suited for systems where corrosion resistance and reliable thread engagement are priorities. Side one presents an M30 x 2.0 male DIN tube fitting at an L22 size, while side two terminates in a 3/4-14 NPTF male thread, enabling a secure transition between European DIN tube standards and NPT-threaded ports commonly found in North American hydraulic equipment.

The Adaptall Din X Male Npt has an overall L1 length of 41mm, with an L2 measurement of 13.5mm and an L3 of 20mm. A 32mm chin width facilitates proper wrench engagement during installation. The stainless construction suits applications where exposure to moisture, mild chemicals, or demanding environmental conditions is a factor.

SKU: SS5007L-22-12

Supplier Part Number (MPN): SS5007L-22-12

Specifications

Brand
adapt-all
Additional Information
Light-Duty
Connection Size 1
L22
Connection Size 2
3/4 in
Connection Type
Male Metric, MNPT
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN 2353
Dimensions
41 mm L
Fitting Type
Adapter
Hex Size
32 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS5007 Series
Thread Size
M30x2 x 3/4-14

Product Questions & Answers (1)

Question by: Dale D on Oct 25, 2025, 12:28 PM
Got a piece of equipment running M30 x 2.0 DIN tube fittings on one end and a 3/4 NPT port on the other, this adapter bridge that gap straight through?
Answer by: Customer Support on Oct 26, 2025, 7:08 PM
That's what it does. One side is an M30 x 2.0 male DIN tube fitting at an L22 size, and the other terminates in a 3/4-14 NPTF male thread. Straight configuration, no angle, so it runs inline between those two connection types without any offset. The overall length comes in at 41mm, so factor that into your clearance before you torque it down.
